Product Description

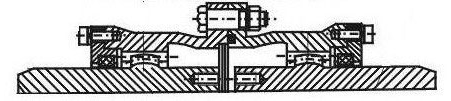

The GICL drum gear coupling consists of a half coupling with the
same number of teeth, an inner ring and an outer flange.The outer
teeth are straight teeth and two kinds of drum teeth. The tooth is
the outer sphere of the tooth.
(1)GIICL allows greater angular displacement (relative to straight
tooth coupling), which can improve tooth contact conditions,
improve transmission torque capacity and extend service life.The contact state of the angular displacement along the tooth width
direction.
(2) compensation capability of radial, axial and angular deviation
and axial deviation with compact structure, small turning radius,
large bearing capacity, high transmission efficiency, low noise and
long maintenance cycle;
(3) applicable to low-speed and high-load conditions, such as
metallurgy, mining, lifting and transportation industries, as well
as the driving shaft, general machinery and other machinery of the
petrochemical industry.
GICL1-GICL14
GICL15-GICL30
| Size | Torque Tn KN.m | Speed (n)r/min | Bore d1,d2 | Length L | D | D1 | D2 | B | A | C | e | Weight kg |
| Y | J1 | Z |
| GICL1 | 0.8 | 7100 | 16-38 | 44-82 | 125 | 95 | 60 | 115 | 75 | 2.5 | 15 | 22 | 30 | 6 |
| GICL2 | 1.4 | 6300 | 25-48 | 60-112 | 145 | 120 | 75 | 135 | 88 | 2.5 | 13.5 | 28 | 30 | 10 |
| GICL3 | 2.8 | 5900 | 30-60 | 84-142 | 170 | 140 | 95 | 155 | 106 | 3 | 17 | 28 | 30 | 18 |
| GICL4 | 5 | 5400 | 32-70 | 84-142 | 195 | 165 | 115 | 178 | 124 | 3 | 17 | 35 | 30 | 25 |
| GICL5 | 8 | 5000 | 40-80 | 84-142 | 225 | 183 | 130 | 198 | 142 | 3 | 20 | 35 | 30 | 38 |
| GICL6 | 11.2 | 4800 | 48-90 | 107-172 | 240 | 200 | 145 | 218 | 160 | 4 | 20 | 43 | 30 | 49 |
| GICL7 | 15 | 4500 | 60-100 | 107-172 | 260 | 230 | 160 | 244 | 180 | 4 | 22 | 43 | 30 | 70 |
| GICL8 | 21.2 | 4000 | 65-110 | 132-212 | 280 | 245 | 175 | 264 | 193 | 5 | 22 | 48 | 30 | 84 |
| GICL9 | 26.5 | 3500 | 70-125 | 132-212 | 315 | 270 | 200 | 284 | 208 | 5 | 22 | 49 | 30 | 110 |
| GICL10 | 42.5 | 3200 | 80-140 | 167-252 | 345 | 300 | 220 | 330 | 249 | 5 | 29 | 54 | 30 | 160 |
| GICL11 | 60 | 3000 | 100-160 | 167-252 | 380 | 330 | 260 | 360 | 267 | 6 | 29 | 54 | 40 | 220 |
| GICL12 | 80 | 2600 | 120-180 | 202-302 | 440 | 380 | 290 | 416 | 313 | 6 | 29 | 68 | 40 | 310 |
| GICL13 | 112 | 2300 | 140-200 | 242-352 | 480 | 420 | 320 | 476 | 364 | 7 | 32 | 70 | 40 | 420 |
| GICL14 | 160 | 2100 | 160-220 | 242-352 | 520 | 465 | 360 | 532 | 415 | 8 | 32 | 70 | 40 | 600 |
| GICL15 | 224 | 1900 | 190-250 | 282-410 | 580 | 510 | 400 | 556 | 429 | 10 | 34 | 80 | 40 | 790 |
| GICL16 | 355 | 1600 | 200-280 | 282-410 | 680 | 595 | 465 | 640 | 501 | 10 | 38 | 80 | 50 | 1140 |
| GICL17 | 400 | 1500 | 220-300 | 330-470 | 720 | 645 | 495 | 672 | 512 | 10 | 39 | - | 50 | 1310 |
| GICL18 | 500 | 1400 | 240-320 | 330-470 | 775 | 675 | 520 | 702 | 524 | 10 | 41 | - | 50 | 1630 |
| GICL19 | 630 | 1300 | 260-340 | 380-550 | 815 | 715 | 560 | 744 | 560 | 10 | 41 | - | 50 | 1780 |
| GICL20 | 710 | 1200 | 280-360 | 380-550 | 855 | 755 | 585 | 786 | 595 | 13 | 44 | - | 50 | 2270 |
| GICL21 | 900 | 1100 | 300-380 | 380-550 | 915 | 795 | 620 | 808 | 611 | 13 | 44 | - | 50 | 2600 |
| GICL22 | 950 | 950 | 340-400 | 450-650 | 960 | 840 | 665 | 830 | 632 | 13 | 44 | - | 60 | 3040 |
| GICL23 | 1120 | 900 | 360-420 | 450-650 | 1010 | 890 | 710 | 870 | 666 | 13 | 48 | - | 60 | 3670 |
