(1) Pulley drive can mitigate the impact of load;

(2) Belt pulley drive running smoothly, low noise, low vibration;

(3) Belt pulley transmission structure is simple, easy to adjust;Pulley transmission for (4) pulley manufacturing and installation precision is not as strict as meshing transmission;

(5) Belt pulley transmission has the function of overload protection;

(6) Belt pulley transmission of the two axis center distance adjustment range is large.

European standard pulley installation:

1. check the groove of the belt pulley according to the European standard to ensure that there is no scar or edge. All sizes meet the standard;

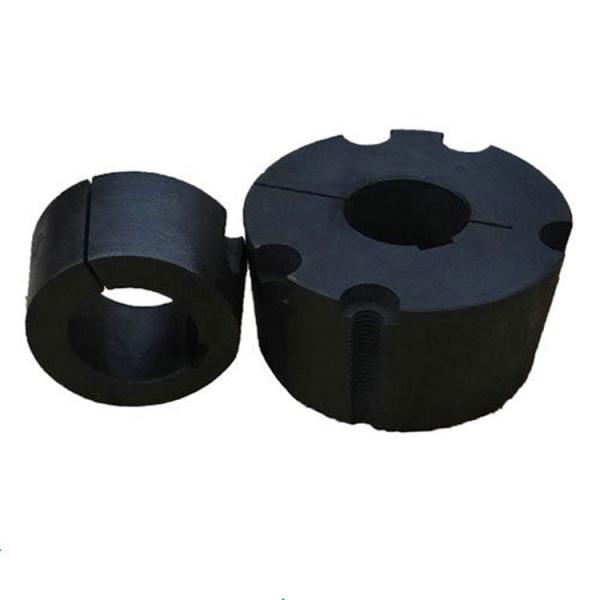

2. Clean the surface of all parts of euro standard pulley, and manufacturers of euro standard pulley, such as hub hole, cone sleeve, bolt hole, etc.Fit the cone set into the pulley so that all the screw holes are aligned.

3. Apply oil on the screw rod and thread of European standard pulley and then screw it into the mounting hole, but do not tighten it for the time being.

4. Clean the surface of the European standard belt pulley drive shaft, push the belt pulley with cone sleeve to the predetermined position on the shaft, and check whether the triangle belt pulley is aligned.

5. When using the European standard belt pulley keyway, it must be inserted into the hub first. There must be a certain tolerance between the keyway and the hole hub.
