    Power Flexible Drive Coupling Steel Sprocket Chain Coupling Customized

    Ask Lasest Price
    Brand Name : jude
    Supply Ability : 1000 Set/Sets per Month
    Price :
    Certification : CE、ISO
    Model Number : KC
    MOQ : 1set
    • Product Details
    • Company Profile

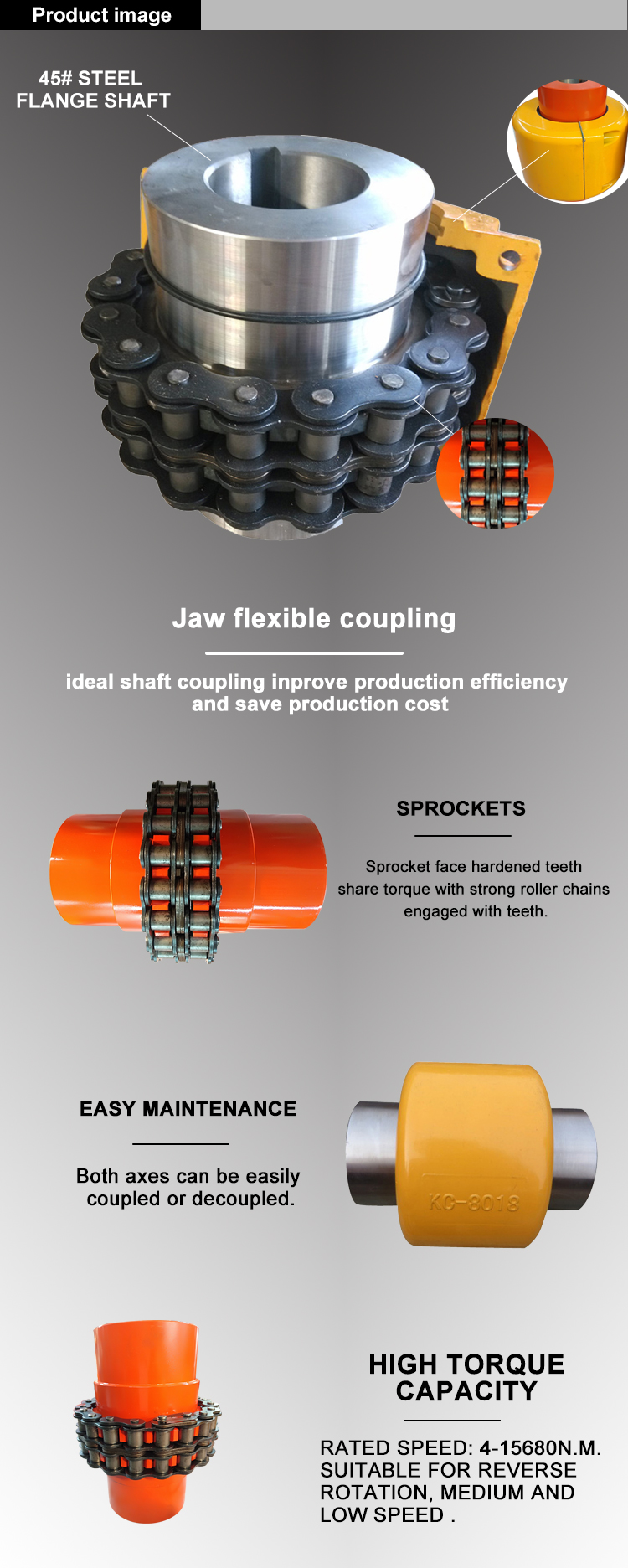

    Power Flexible Drive Coupling Steel Sprocket Chain Coupling Customized

    Power Flexible Drive Coupling Steel Sprocket Chain Coupling Customized


    Chain Coupling Application:
    Chain couplings are offered in the industry's largest variety of stock bore/keyway combinations. These couplings require no lubrication and provide highly reliable service for light, medium, and heavy duty electrical motor and internal combustion power transmission applications. Applications include power transmission to industrial equipment such as pumps, gear boxes, compressors, blowers, mixers, and conveyors.


    Chain Coupling details:
    Size: 3012, 4012, 4014, 4016, 5014, 5016, 5018, 6018, 6020, 6022, 8018, 8020, 8022, 10018, 10022, 12018, 12022
    Our Roller Chain Coupling Specification:
    1. Material: C45 steel, Alloy steel, Aluminum, Rubber and plastic etc.
    2. OEM and ODM are available
    3. High efficient in transmission
    4. Finishing: Painted.
    5. High quality with competitive price
    6. Different models suitable for your different demands
    7. Stock for different bore size on both sides available.
    8. Application in wide range of environment.
    9. Quick and easy mounting and disassembly.
    10. Resistant to oil and electrical insulation.
    11. Identical clockwise and anticlockwise rotational characteristics.
    12. Small dimension, low weight, high transmitted torque.
    13. It has good performance on compensating the misalignment.


    Product name
    Internal gear roller chain coupling
    Model
    KC chain coupling
    Inner diameter
    10-150mm
    Outer diameter
    75-355mm
    Thickness
    80-261mm
    Weight
    1.1-74.1kg
    Torque capacity
    40-25000N.m
    Package
    Carton/wooden case/customer’s request
    Payment terms
    TT. L/C, D/A,D/P,Western Union,Paypal
    Application
    Textile machine, fans, ventilators, printing machine

    Power Flexible Drive Coupling Steel Sprocket Chain Coupling Customized

    SizeTorque N.mSpeed rpmBasic size mmInertia kg m2Weight kg
    dmaxDD1SLDkLk
    KC381219050001645254.93059615.6x10-50.6
    KC4012249480022623536752.47X10-41.0
    KC401432948002869437.43684754.53X10-41.32
    KC4016419480032775040927.90X10-41.9
    KC501462048003586531011.37X10-32.7
    KC501676136004096609.745110852.18X10-33.4
    KC5018989360045106701223.53x10-34.4
    KC60181810330056127851429.33x10-37.8
    KC6020221025006013910011.5561581052.10X10-210.4
    KC602226102500711521101682.16X10-212.4
    KC80183920200080170115631863.63 X10-215.2
    KC8020480020009018512115.2652101307.20x10-220.2
    KC802256401800100203140712208.00X10-226.1
    KC100208400180011023316018.8802501481.61 X10-139.1
    KC12018127001500125256170903071912.68 X10-152.6
    KC 1202218300125014030421022.71003575.93 X10-179.4
    KC1601826400110016034122430.11124252501.05110.7
    KC 160223810010002004052801404752.50191.8
    KC200185410080020542629437.52414963004.60323.4
    KC 20022778006002605073745781.07X10507.8
    KC2402213700060031060842045.13536503502.7X10958.5
    KC 240261860005003807055207455.70X101403.6
    KC 3202226100043080657060.14001 .08x1021970
    KC 40020494000504709326402.92X1 023149
    KC 40024602000590109380075.65124.95X1024724
    KC 4002871700070012559609.47X1026620
