FCL Flexible Rubber Coupling Pin Bush Coupling For Spinning And
Weaving Machines

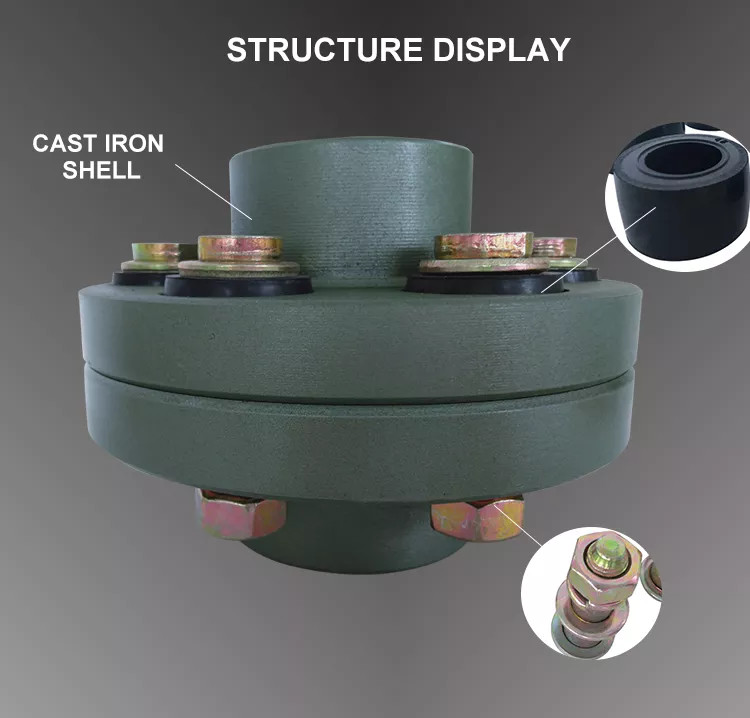

The Pin Bush Coupling has a flange plus NBR rubber bolt design, it
is widely used in various industries like pumps, hydraulic &
pneumatic systems, etc. The FCL coupling is famous for its compact
design, durability as well as easy installation & maintenance. So
long as the relative displacement between shafts is kept within the
specified tolerance, the pin & bush coupling will operate smoothly
for years to come, reducing the downtime required for frequent
replacement and most importantly cost saving for the end-user.
FCL type elastic coupling features: good vibration absorption, can
make the movement of the active shaft to be transmitted to the
passive shaft smoothly. There is no axial thrust in the
transmission. Easy disassembly and assembly, as long as the
coupling bolt is removed, the connection between the active and
passive can be separated. If the relative displacement of the two
shafts can be kept within the specified range after installation
and adjustment, the coupling will have satisfactory performance and
long working life.
Therefore, it can be widely used in various medium and small power
transmission shaft systems driven by electric motors with small
loads, such as reducers, transmissions, pumps, printing and dyeing
machines, hoists, cranes, compressors, conveyors, textile machines,
hoists, Ball mill, etc.
| KASIN No. | A | d | L | C1 | C2 | B | F1 | F2 | n | a | M | t | PartsNo. | Max. Torque | Max.R.P.M | Eccentricity | Angularity | End-Play |
| FCL 100 | 100 | 11~25 | 35.5 | 42.5 | 42.5 | 67 | 16 | 16 | 4 | 10 | 23 | 3 | #2 | 29N.m | 4000 | 0.1 | 1/6° | ±2.1 |
| FCL 112 | 112 | 13~28 | 40 | 50 | 50 | 75 | 16 | 16 | 4 | 10 | 23 | 3 | #2 | 33N.m | 4000 | 0.1 | 1/6° | ±2.1 |
| FCL 125 | 125 | 13~32 | 45 | 56 | 50 | 85 | 18 | 18 | 4 | 14 | 32 | 3 | #3 | 73N.m | 4000 | 0.1 | 1/6° | ±2.1 |
| FCL 140 | 140 | 13~38 | 50 | 71 | 63 | 100 | 18 | 18 | 6 | 14 | 32 | 3 | #3 | 130N.m | 4000 | 0.2 | 1/6° | ±2.1 |
| FCL 160 | 160 | 15~45 | 56 | 80 | 80 | 115 | 18 | 18 | 8 | 14 | 32 | 3 | #3 | 200N.m | 4000 | 0.2 | 1/6° | ±2.1 |
| FCL 180 | 180 | 15~50 | 63 | 90 | 90 | 132 | 18 | 18 | 8 | 14 | 32 | 3 | #3 | 230N.m | 3500 | 0.2 | 1/6° | ±2.1 |
| FCL 200 | 200 | 21~56 | 71 | 100 | 100 | 145 | 22.4 | 22.4 | 8 | 20 | 41 | 4 | #4 | 440N.m | 3200 | 0.2 | 1/6° | ±2.8 |
| FCL 224 | 224 | 21~63 | 80 | 112 | 112 | 170 | 22.4 | 22.4 | 8 | 20 | 41 | 4 | #4 | 510N.m | 2850 | 0.2 | 1/6° | ±2.8 |
| FCL 250 | 250 | 25~71 | 90 | 125 | 125 | 180 | 28 | 28 | 8 | 25 | 51 | 4 | #5 | 850N.m | 2550 | 0.2 | 1/6° | ±2.8 |
| FCL 280 | 280 | 34~80 | 100 | 140 | 140 | 200 | 28 | 40 | 8 | 28 | 57 | 4 | #6 | 1500N.m | 2300 | 0.3 | 1/6° | ±2.8 |
| FCL 315 | 315 | 41~90 | 112 | 160 | 160 | 236 | 28 | 40 | 10 | 28 | 57 | 4 | #6 | 2200N.m | 2050 | 0.3 | 1/6° | ±2.8 |
| FCL 355 | 355 | 60~100 | 125 | 180 | 180 | 260 | 35.5 | 56 | 8 | 35.5 | 72 | 5 | #8 | 3500N.m | 1800 | 0.3 | 1/6° | ±3.5 |
| FCL 400 | 400 | 60~110 | 125 | 200 | 200 | 300 | 35.5 | 56 | 10 | 35.5 | 72 | 5 | #8 | 5000N.m | 1600 | 0.3 | 1/6° | ±3.5 |
| FCL 450 | 450 | 65~125 | 140 | 224 | 224 | 355 | 35.5 | 56 | 12 | 35.5 | 72 | 5 | #8 | 7100N.m | 1400 | 0.3 | 1/6° | ±3.5 |
| FCL 560 | 560 | 85~140 | 160 | 250 | 250 | 450 | 35.5 | 56 | 14 | 35.5 | 72 | 5 | #8 | 10000N.m | 1150 | 0.3 | 1/6° | ±3.5 |
| FCL 630 | 630 | 95~160 | 180 | 280 | 280 | 530 | 35.5 | 56 | 18 | 35.5 | 72 | 5 | #8 | 16000N.m | 1000 | 0.3 | 1/6° | ±3.5 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is
a enterprises that specialized in research and production coupling.
Also we can develop new products and bulk-production. With rich
experience, professional R&D team and various equipment in
coupling, it has superior conditions to satisfied your different
requirements.
Company main products are: all kinds of couplings for machinery
industry all over the word , such as radial elastic coupling, tyred
coupling, universal coupling, drum gear coupling, plum flower form
elastic coupling, rigid coupling oldham coupling, roller chain
coupling, diaphragm coupling, coupling column elastic sleeve pin
couplings, elastic dowel pin, elastic dowel pin coupling, pump
shaft coupling, etc..
The concepts of our company is live on quality and develop on
honor. The coupling has the advantage of high quality, low price,
complete product models.Our company will be your best choice, and
we look forward to cooperate with you.
