    Non Standard Pin Bush Coupling Custom Sleeve Shaft Coupling TL Type

    High Quality Wholesale Non-Standard Custom Cheap Sleeve Shaft Pin & Bush Coupling


    Product Description
    Design feature

    1. Because of elastic sleeve distortion and the teeth clearance between ring holes of half-coupling,the coupling has some compensatory of relativity shir and isolation properties.

    2. Working temperature is -20℃~+70℃

    3. The marking method of Keyway forms and shaft holes size must be in accord with GB/T3852-1997


    Mark descriptions

    For Z and J type hole with counter bore, the length of axle hole means the length of the matching hole,that is the L in next drawing.

    NOTE:

    1. Coupling weights in the sheet are calculated according to the minimum diameter and maximum length of the shaft hole.

    2.Short overloading can not exceed 2 times rated normal torque.

    3.Type of shaft holes, the lengths of L and L1 also can be produced as customer requirements.

    4. Rotational inertia are similar value.


    Application of LT type shaft coupling with elastic sleeve and pin

    1. LT type shaft coupling with elastic sleeve and pin are widely used in various mechanical and hydraulic fields, can adapt positive and negative changeful start frequent occasions

    2.Printing machinery / Packing machinery / Wood-working machinery etc large-scale mechanical equipment

    Material

    45#/40Cr/42CrMo

    Color

    Any color available

    Packaging

    Plywood case


    Modelnominal torqueMax speedBore diameterBore lengthDSAweight
    N.mr/mind,d1Lkg
    TL1 LT16.388009~1420~32713181.2
    TL2 LT216760012~1932~42803181.64
    TL3 LT331.5630016~2542~62954354.9
    TL4 LT463570020~3252~821064352.4
    TL5 LT5125460025~4062~1121305458.36
    TL6 LT6250380032~5082~11216054510.36
    TL7 LT7500360040~65112~14219054515.6
    TL8 LT8710300045~80112~17222466525.4
    TL9 LT91000285050~85112~17225066530.9
    TL10 LT102000230063~120142~21231588065.9
    TL11 LT114000180080~140172~25240010100122.6
    TL12 LT1280001450100~180212~30247512130218.4
    TL13 LT13160001150120~220212~35260014180425.8

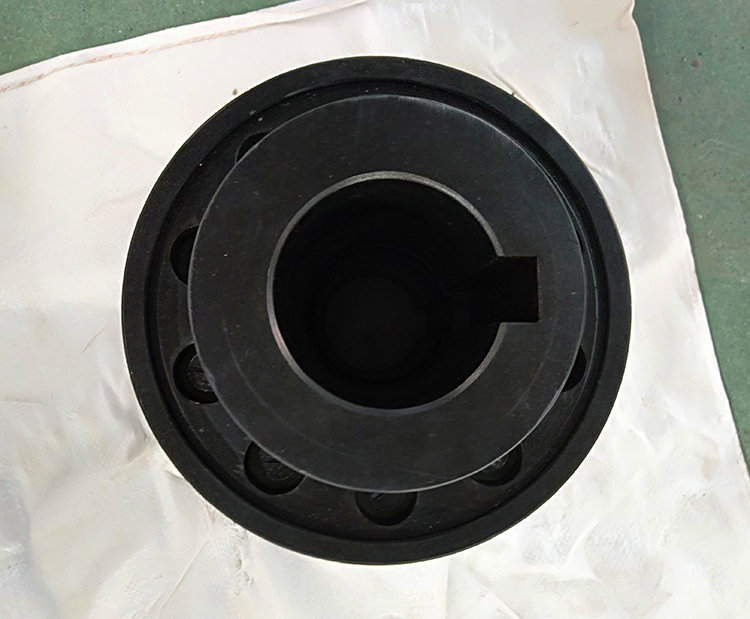

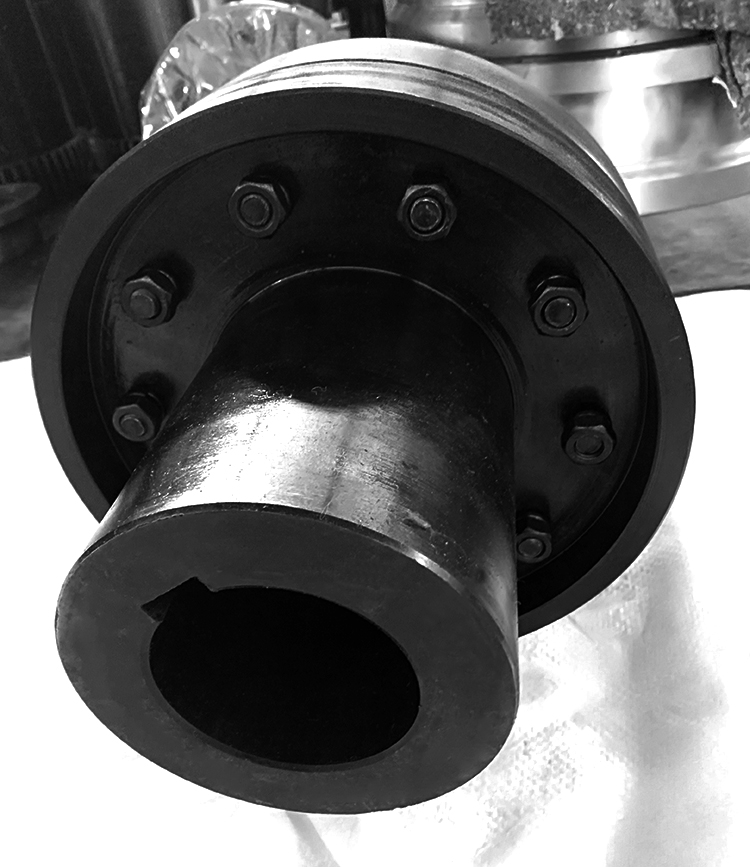

    products images

    Non Standard Pin Bush Coupling Custom Sleeve Shaft Coupling TL Type


    Non Standard Pin Bush Coupling Custom Sleeve Shaft Coupling TL Type


    Non Standard Pin Bush Coupling Custom Sleeve Shaft Coupling TL Type


    Non Standard Pin Bush Coupling Custom Sleeve Shaft Coupling TL Type


    Non Standard Pin Bush Coupling Custom Sleeve Shaft Coupling TL Type

    Packaging & Shipping

    Non Standard Pin Bush Coupling Custom Sleeve Shaft Coupling TL Type

    About Us

    Non Standard Pin Bush Coupling Custom Sleeve Shaft Coupling TL Type

    Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.

    Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..

    The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.

    Non Standard Pin Bush Coupling Custom Sleeve Shaft Coupling TL Type

    FAQ

    Q1: Are you trading company or manufacturer ?

    A: We are factory.


    Q2:Do you provide samples ? is it free or extra ?

    A: : Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.


    Q3: How long is your delivery time?

    A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.


    Q4:How long is your warranty?

    A: Our Warranty is 12 month.


    Q5 :Do you have inspection procedures for coupling ?

    A:100% self-inspection before packing


    Q6. What’s your payment?

    A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.
