    Diaphragm Stainless Steel / Aluminum Flexible Coupling For CNC Machine

    Ask Lasest Price
    Brand Name : jude
    Supply Ability : 1000 Set/Sets per Week
    Price : $15.00 - $500.00/Sets
    Certification : CE、ISO
    • Product Details
    • Company Profile

    Diaphragm Stainless Steel / Aluminum Flexible Coupling For CNC Machine

    Stainless Steel / Aluminum Flexible Diaphragm Coupling For CNC Machine Tool Equipment


    Product Description

    Advantages of aluminum alloy coupling:


    1. Compact structure, small size and low inertia

    2. Couplings are made of high-strength aluminum alloys

    3. High torque rigidity, low inertia and excellent sensitivity, zero backlash

    4. High fatigue resistance, constant speed rotation

    5. Integrated, small, low inertia


    Material:Aluminum Alloy
    Applications:Automation equipment and Servo Motor , CNC machine .
    Industrial large-scale cabinet, oven, test chamber , Container. Truck.
    Biological medical equipment, Lab equipment , Vehicle.Cabinet
    Surface Finishing:Brightness chrome plated, Polishing
    Installation:Easy to install, Left and right side install
    Features:Durable, Secure, High Quality
    Advantages:1.Variety types fpr selection, prompt deliver
    2.Well-equipped with extensive sales network
    3.Advanced Production equipment and production technique)
    4.Competitive Price(Factory direct price)with our good service
    5.Different designs are available according to customers requests
    6.Excellent quality testing equipment,100% inspection on critical dimension

    Diaphragm Stainless Steel / Aluminum Flexible Coupling For CNC MachineProduct introduction:

    The diaphragm coupling consists of at least one diaphragm and two bush.The diaphragm is fastened to the sleeve by pins and generally does not loosen or cause recoil between the diaphragm and the sleeve.In addition to the single diaphragm, there are two, three diaphragm coupling, with one or two rigid elements in the middle, both sides are connected to the shaft sleeve.Diaphragm coupling is often used in servo systems. Diaphragm is very torque rigid and can withstand deviations up to 1.5 degrees, but less so than the bellows coupling.

    Diaphragm Stainless Steel / Aluminum Flexible Coupling For CNC MachineDiaphragm Stainless Steel / Aluminum Flexible Coupling For CNC MachineDiaphragm Stainless Steel / Aluminum Flexible Coupling For CNC Machine

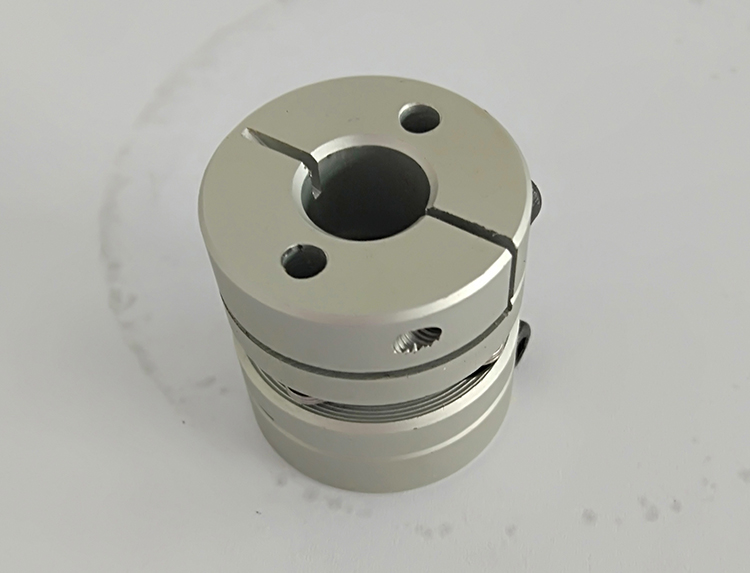

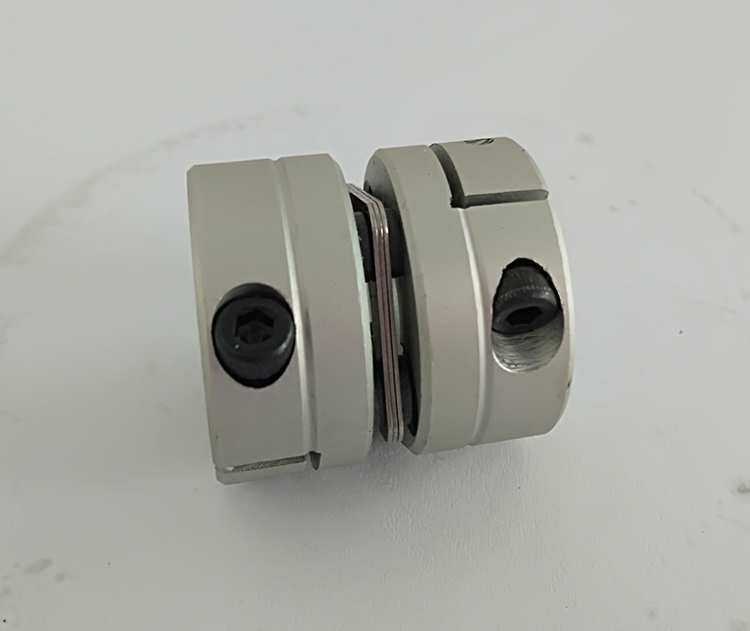

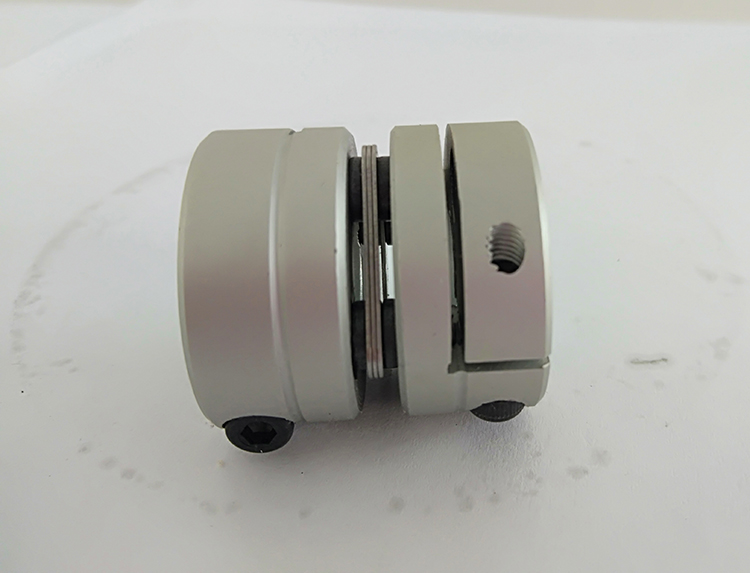

    products images

    Diaphragm Stainless Steel / Aluminum Flexible Coupling For CNC Machine Diaphragm Stainless Steel / Aluminum Flexible Coupling For CNC Machine


    Diaphragm Stainless Steel / Aluminum Flexible Coupling For CNC Machine


    Diaphragm Stainless Steel / Aluminum Flexible Coupling For CNC Machine


    Diaphragm Stainless Steel / Aluminum Flexible Coupling For CNC Machine


    Diaphragm Stainless Steel / Aluminum Flexible Coupling For CNC Machine


    Application

    Diaphragm Stainless Steel / Aluminum Flexible Coupling For CNC MachineDiaphragm Stainless Steel / Aluminum Flexible Coupling For CNC Machine

    Packaging & Shipping

    Diaphragm Stainless Steel / Aluminum Flexible Coupling For CNC Machine
