Product Description

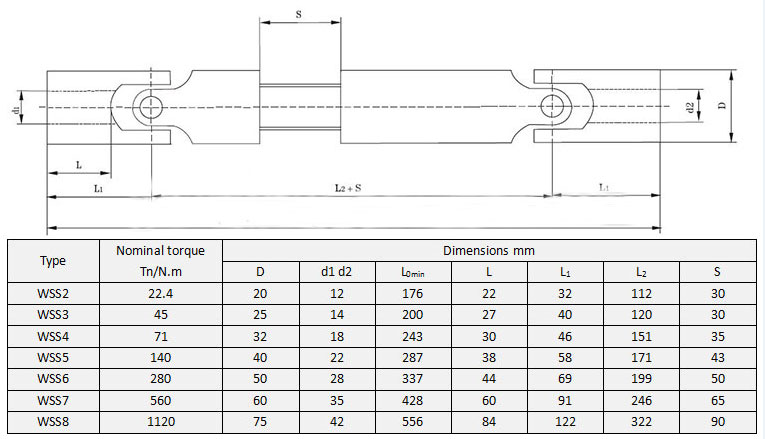

The WSS Small Universal Joint Shaft Coupling has relative
displacement due to various factors such as manufacturing error,
installation error, axle load, deformation of base, bearing wear,
temperature change (thermal expansion, cold contraction), relative
movement between components and so on. Generally speaking, the
relative displacement of two axes is difficult to avoid, but the
displacement direction produced by shafting transmission under
different working conditions is different from that of axial (x),
radial (y), angular (a) and displacement.
| Model | Tactical diameter | Nominal torque | Fatique | Axis rotation | Stretch | Lmin | Size | Rotary inertia | Weight |
| D | Tn | torque | β | length | mm | kg.m2 | kg |
| mm | kN·m | Tf | (°) | LS | | | |
| | kN·m | | mm | D1 | D2 | D3 | Lm | n-d | k | t | | g | Lmin | Increase | Lmin | Increase |
| | | | | js11 | H7 | b | 100mm | 100mm |
| | | | | | | h9 | | |
| SWC180BF | 180 | 20 | 10 | ≤25 | 100 | 810 | 155 | 105 | 114 | 110 | 8-17 | 17 | 5 | 24 | 7 | 0.267 | 0.007 | 80 | 2.8 |
| SWC200BF | 200 | 32 | 16 | ≤15 | 110 | 860 | 170 | 120 | 127 | 135 | 8-17 | 19 | 5 | 28 | 8 | 0.505 | 0.013 | 109 | 3.6 |
| SWC225BF | 225 | 40 | 20 | ≤15 | 140 | 920 | 196 | 135 | 152 | 120 | 8-17 | 20 | 5 | 32 | 9 | 0.788 | 0.0234 | 138 | 4.9 |
| SWC250BF | 250 | 63 | 31.5 | ≤15 | 140 | 1035 | 218 | 150 | 168 | 140 | 8-19 | 25 | 6 | 40 | 12.5 | 1.445 | 0.0277 | 196 | 5.3 |
| SWC285BF | 285 | 90 | 45 | ≤15 | 140 | 1190 | 245 | 170 | 194 | 160 | 8-21 | 27 | 7 | 40 | 15 | 2.873 | 0.051 | 295 | 6.3 |
| SWC315BF | 315 | 125 | 63 | ≤15 | 140 | 1315 | 280 | 185 | 219 | 180 | 10-23 | 32 | 8 | 40 | 15 | 5.094 | 0.795 | 428 | 8 |
| SWC350BF | 350 | 180 | 90 | ≤15 | 150 | 1410 | 310 | 210 | 267 | 194 | 10-23 | 35 | 8 | 50 | 16 | 9.195 | 0.2219 | 932 | 15 |
| SWC390BF | 390 | 250 | 125 | ≤15 | 170 | 1590 | 345 | 235 | 267 | 215 | 10-25 | 40 | 8 | 70 | 18 | 16.62 | 0.2219 | 817 | 15 |
| SWC440BF | 440 | 355 | 180 | ≤15 | 190 | 1875 | 390 | 255 | 325 | 260 | 16-28 | 42 | 10 | 80 | 20 | 28.24 | 0.4744 | 1290 | 21.7 |
| SWC490BF | 490 | 500 | 250 | ≤15 | 190 | 1985 | 435 | 275 | 325 | 270 | 16-31 | 47 | 12 | 90 | 22.5 | 46.33 | 0.4744 | 1631 | 21.7 |
| SWC550BF | 550 | 710 | 355 | ≤15 | 240 | 2300 | 492 | 320 | 426 | 305 | 16-31 | 50 | 12 | 100 | 22.5 | 86.98 | 1.357 | 2567 | 34 |
| SWC620BF | 620 | 1000 | 500 | ≤15 | 240 | 2500 | 555 | 380 | 426 | 340 | 16-38 | 55 | 12 | 100 | 25 | 147.5 | 1.375 | 3267 | 34 |
