ML Plum Blossom Shape Flexible Shaft flange Coupling

Introduction Of ML Plum Blossom Shape Flexible Shaft Flange Coupling

High Quality Flexible Jaw Coupling
1. Material: Carbon steel, Alloy steel, Aluminum, Rubber and Cast Iron etc.

2. Finishing: Painted, blacken, zinc plated and so on.

3. OEM and ODM are available

4. Quick and easy mounting and disassembly.

5. High quality with competitive price

Application of ML Plum Blossom Shape Flexible Shaft flange Coupling

1. ML Plum Blossom Shape Flexible Shaft flange Coupling are widely used in various mechanical and hydraulic fields, can adapt positive and negative changeful start frequent occasions

2.Metallurgy/ Mine/ Petrochemical industry/ Lifting light industry /Textile /Water pump /Fan/Printing machinery / Packing machinery / Wood-working machinery etc large-scale mechanical equipment

Material	45#/40Cr/42CrMo
Color	Any color available
Packaging	Plywood case

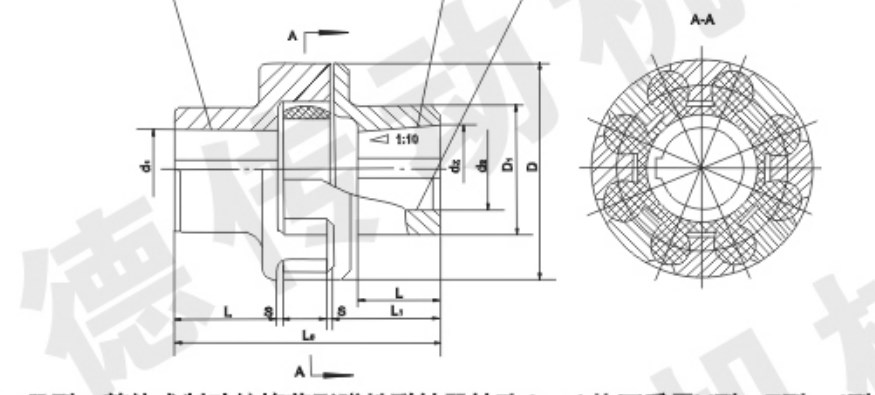

Size	Torque Tn (N.m)	Speed[n](r/min)	Bore Dia	Length	L0	D	D1	Spider	Inertia I (Kg.m2 )	m Kg
ML1	25	15300	12-24	27-52	80-120	50	40	MT1	0.014	0.66
ML2	100	10900	20-32	38-82	127-187	70	50	MT2	0.075	1.55
ML3	140	9000	22-38	38-82	128-188	85	60	MT3	0.178	2.5
ML4	250	7300	25-42	44-112	151-251	105	65	MT4	0.412	4.3
ML5	400	6100	30-48	60-112	197-257	125	75	MT5	0.73	6.2
ML6	630	5300	35-55	60-112	203-263	145	85	MT6	1.85	8.6
ML7	1120	4500	45-65	84-142	265-325	170	100	MT7	3.88	14
ML8	1800	3800	50-75	84-142	272-332	200	120	MT8	9.22	25.7
ML9	2800	3300	60-95	107-172	334-394	320	150	MT9	18.95	41
ML10	4500	2900	70-110	107-212	344-484	260	180	MT10	39.68	59
ML11	6300	2500	80-120	132-212	411-491	300	200	MT11	73.43	87
ML12	11200	2100	90-130	132-252	417-577	360	215	MT12	178.45	140
ML13	12500	1900	100-140	167-252	497-577	400	225	MT13	208.75	160

Product Description

ML Plum Blossom Shape Flexible Shaft flange Coupling
