Product Description

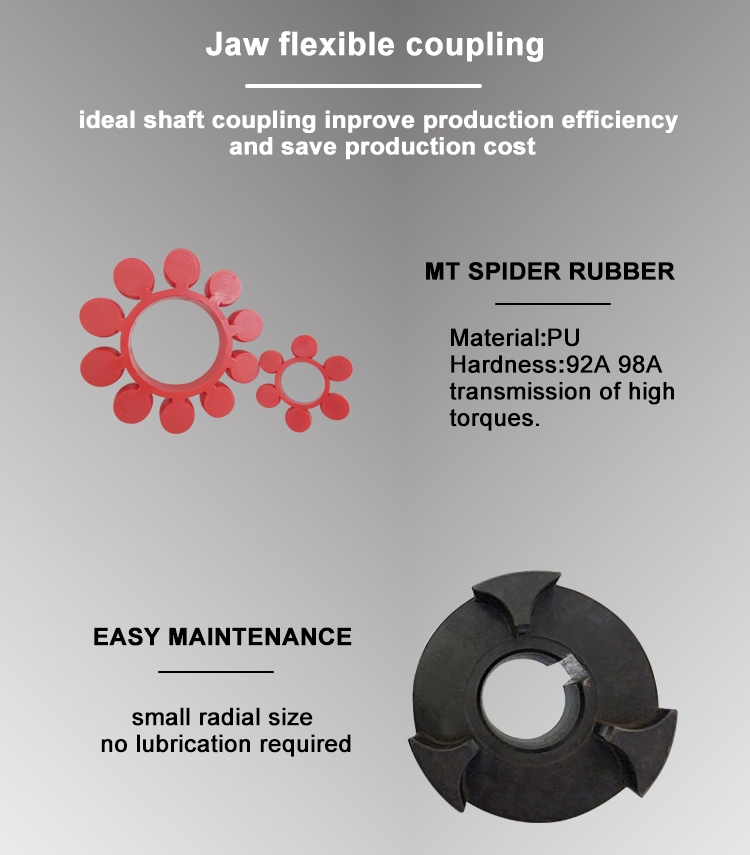

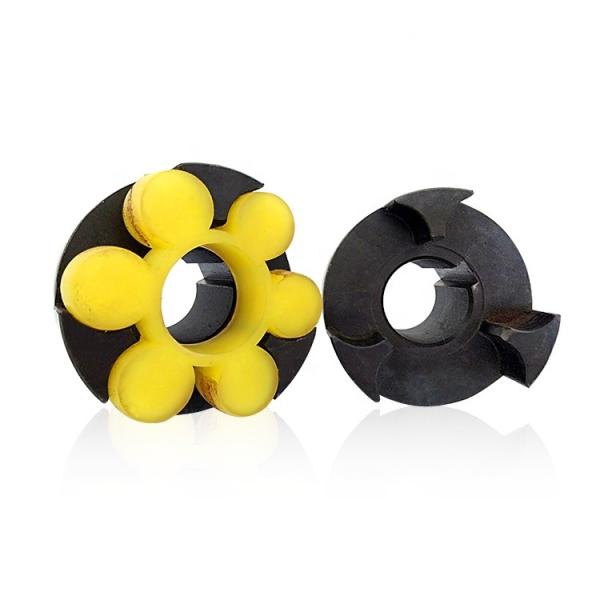

Plum pad:
Plum blossom pad, full name plum-shaped elastic coupling cushion.
It is used for cushioning of various heavy machinery coupling
shafts. Some areas are also known as plum blossom plates. According
to the material, it can be divided into polyurethane plum pad and
rubber plum pad, nylon plum pad.
Plum pad classification:
Plum blossom mat is divided into MT type plum blossom mat, T-shaped
hexagonal mat, GR star plum blossom mat, HRC hexagonal mat, NM type
elastic ring, L-shaped hexagonal pad, NL nylon inner tooth sleeve,
H-type elastic block, rubber gear, etc.

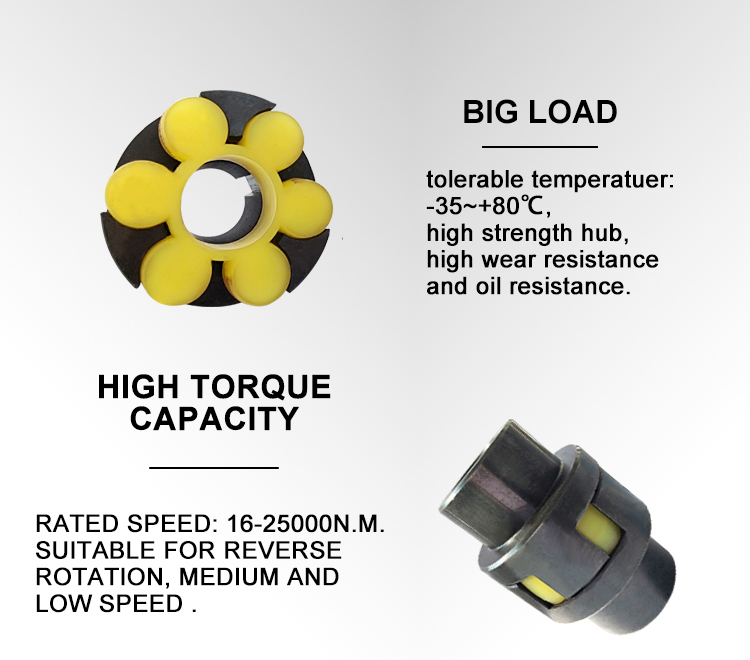

Plum pad characteristics:
The plum blossom pad is used for damping, insulation and buffer
transmission torque in the middle of the coupling. The torque
transmitted by the plum blossom pads of different materials and
different hardness is also different. The higher the hardness, the
greater the torque transmitted
| del | Nominal Torque Tn N.m | High-poing speed n r/min | Aperture Diameter d1.d2 mm | Aperture longness | L0 recommendatory | D | D1 | Most weight kg |
| LM | LMD LMS | L | L recommendatory | LM | LMD | LMS | LM | LMD LMS |
| LM1 | 25 | 15300 | 8500 | 12-25 | 27-62 | 35 | 86 | 92 | 98 | 50 | 30 | 90 | 0.7 |
| LMD1 | 1.6 |
| LMS1 | 2.2 |
| LM2 | 50 | 12000 | 7600 | 16-30 | 30-82 | 38 | 95 | 101.5 | 108 | 60 | 44 | 100 | 1.1 |
| LMD2 | 2.4 |
| LMS2 | 3.0 |
| LM3 | 100 | 10900 | 6900 | 20-32 | 38-82 | 40 | 103 | 110 | 117 | 70 | 48 | 110 | 1.6 |
| LMD3 | 3.2 |
| LMS3 | 3.8 |
| LM4 | 140 | 9000 | 6000 | 22-40 | 38-112 | 45 | 114 | 122 | 130 | 85 | 60 | 125 | 2.6 |
| LMD4 | 4.6 |
| LMS4 | 5.2 |
| LM5 | 250 | 7300 | 5000 | 25-45 | 44-112 | 50 | 127 | 138.5 | 150 | 105 | 72 | 150 | 4.4 |
| LMD5 | 5.6 |
| LMS5 | 6.3 |
| LM6 | 400 | 6100 | 4100 | 30-48 | 60-112 | 55 | 143 | 155 | 167 | 125 | 90 | 185 | 6.3 |
| LMD6 | 8.6 |
| LMS6 | 9.5 |
| LM7 | 630 | 5300 | 3600 | 35-55 | 60-112 | 60 | 159 | 172 | 185 | 145 | 104 | 205 | 8.8 |
| LMD7 | 11 |
| LMS7 | 17 |
| LM8 | 1120 | 4500 | 3100 | 45-65 | 84-142 | 70 | 181 | 195 | 209 | 170 | 130 | 240 | 14 |
| LMD8 | 18 |
| LMS8 | 26 |
| LM9 | 1800 | 3800 | 2700 | 50-80 | 84-172 | 80 | 208 | 224 | 240 | 200 | 156 | 270 | 26 |
| LMD9 | 32 |
| LMS9 | 38 |
| LM10 | 2800 | 3300 | 2500 | 60-100 | 107-212 | 90 | 230 | 248 | 268 | 230 | 180 | 305 | 42 |
| LMD10 | 46 |
| LMS10 | 54 |
| LM11 | 4500 | 2900 | 2200 | 70-120 | 107-212 | 100 | 260 | 284 | 350 | 260 | 205 | 350 | 60 |
| LMD11 | 72 |
| LMS11 | 84 |
| LM12 | 6300 | 2500 | 1900 | 80-130 | 132-252 | 115 | 297 | 321 | 400 | 300 | 245 | 400 | 88 |
| LMD12 | 105 |
| LMS12 | 118 |
| LM13 | 11200 | 2100 | 1600 | 90-150 | 132-252 | 125 | 323 | 348 | 460 | 360 | 300 | 460 | 145 |
| LMD13 | 158 |
| LMS13 | 215 |
| LM14 | 12500 | 1900 | 1500 | 100-160 | 167-302 | 135 | 333 | 358 | 500 | 400 | 335 | 500 | 165 |
| LMD14 | 210 |
| LMS14 | 265 |
