Flex Spring Taper Grid Coupling Metal Bellows Coupling JS Type

High Quality Flexible JS Tapered Spring Shaft Coupling

Product Description

Features of serpentine spring coupling:
1. Good vibration damping, long service life.
2. Large range of variable loads, safe starting.
3. High transmission efficiency and reliable operation.
4. Low noise and good lubrication.
5. Simple structure and convenient installation and disassembly.
6. Less parts, small size and light weight.
7. Large installation deviation is allowed.

Size	Torque Tn KN.m	Speed (n) r/min	Bore d	Length L	Total lenght L0	L2	D	D1	t	Weight kg	Oil injection kg	Allowable displacement
Size	Torque Tn KN.m	Speed (n) r/min	Bore d	Length L	Total lenght L0	L2	D	D1	t	Weight kg	Oil injection kg	Radial y	Axial x	Angular a
JS1	0.045	4500	18-22	47	97	66	95	-	3	1.91	0.027	0.15	±0.3	0.076
JS2	0.14	4500	22-35	47	97	68	105	-	3	2.59	0.041	0.15	±0.3	0.076
JS3	0.224	4500	25-42	50	103	70	115	-	3	3.36	0.054	0.15	±0.3	0.076
JS4	0.4	4500	32-60	60	123	80	130	-	3	5.45	0.068	0.2	±0.3	0.1
JS5	0.63	4350	40-56	63	129	92	150	-	3	7.26	0.086	0.2	±0.3	0.127
JS6	0.9	4125	48-65	76	155	95	160	-	3	10.4	0.113	0.2	±0.3	0.127
JS7	1.8	3600	55-80	89	181	116	190	-	3	17.7	0.172	0.2	±0.3	0.15
JS8	3.15	3600	65-95	98	199	122	210	-	3	25.4	0.254	0.2	±0.3	0.18
JS9	5.6	2440	75-110	120	245	155	250	-	5	42.2	0.426	0.25	±0.5	0.2
JS10	8	2250	85-120	127	259	162	270	-	5	54.5	0.508	0.25	±0.5	0.23
JS11	12.5	2025	90-140	149	304	192	310	-	6	81.3	0.735	0.28	±0.6	0.25
JS12	18	1800	110-170	162	330	195	346	-	6	121	0.908	0.28	±0.6	0.3
JS13	25	1650	120-200	184	374	201	384	-	6	178	1.135	0.28	±0.6	0.33
JS14	35.5	1500	140-200	183	372	271	450	391	6	234	1.952	0.3	±0.6	0.4
JS15	50	1350	160-240	198	402	279	500	431	6	317	2.815	0.3	±0.6	0.45
JS16	63	1225	180-280	216	438	304	566	487	6	448	3.496	0.3	±0.6	0.5
JS17	90	1100	200-300	239	484	322	630	555	6	620	3.76	0.38	±0.6	0.56
JS18	125	1050	240-320	260	526	356	675	608	6	776	4.4	0.38	±0.6	0.6
JS19	160	900	280-360	280	566	355	756	660	6	1058	5.63	0.38	±1.3	0.68
JS20	224	820	300-380	305	623	432	845	751	13	1426	10.5	0.46	±1.3	0.74
JS21	315	730	320-420	325	663	490	920	822	13	1787	16.1	0.46	±1.3	0.8
JS22	400	680	340-450	345	703	546	1000	905	13	2269	24.1	0.48	±1.3	0.89
JS23	500	630	360-480	368	749	648	1087	-	13	2951	33.8	0.48	±1.3	0.96
JS24	630	580	400-460	401	815	698	1180	-	13	3836	50.2	0.5	±1.3	1.07
JS25	800	540	420-500	432	877	762	1260	-	13	4686	67.2	0.5	±1.3	1.77

products images

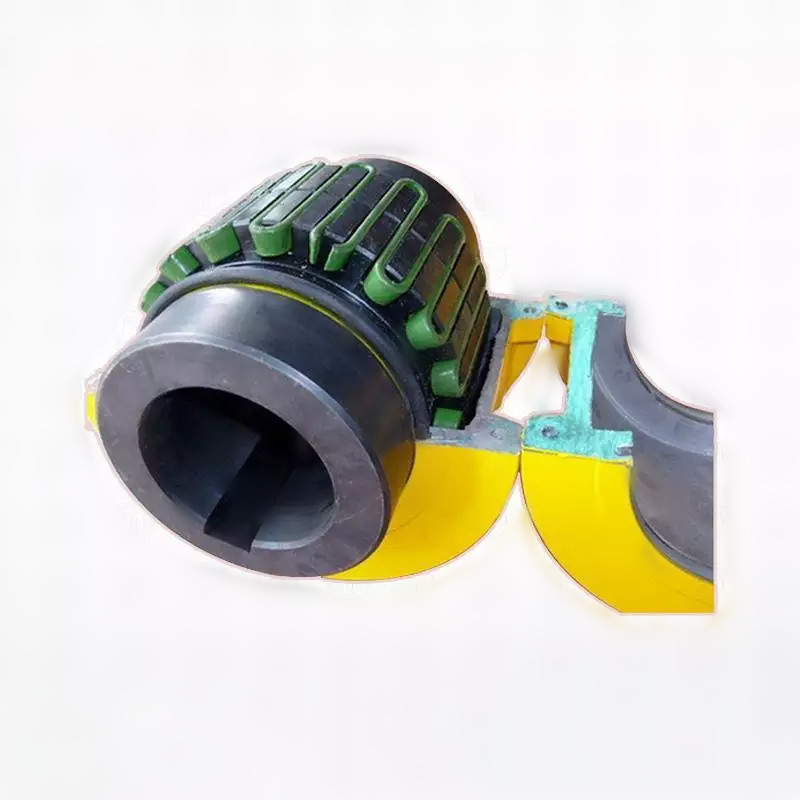

Flex Spring Taper Grid Coupling Metal Bellows Coupling JS Type
