    Double Flange Flexible Jaw Coupling Spider For Heavy Machinery

    Ask Lasest Price
    Brand Name : jude
    Supply Ability : 1000 Set/Sets per Month
    Price :
    Model Number : AFN
    Certification : CE、ISO
    MOQ : 1 set
    • Product Details
    • Company Profile

    Double Flange Flexible Jaw Coupling Spider For Heavy Machinery

    Double Flange Connection Flexible Jaw Spider Coupling Jaw Coupling For Heavy Machinery

    ROTEX AFN is a torsionally flexible elastomer coupling as a double-flange type and particularly suitable for applications in heavy engineering. Design AFN of the ROTEX elastomer coupling is characterized by the double flange type allowing for radial assembly and disassembly of the shaft coupling or elastomer without displacing the driving or driven side.


    The flange hub of the torsionally flexible jaw coupling as a flange type ROTEX AFN is made of steel and the driving flange is made of Steel. Features Torsionally flexible, fail-safe elastomer coupling / jaw coupling Double flange type for heavy engineering Replacement of spider possible while mounted without disassembly of the driving or driven machine Spider radially dismountable, easy to service


    Product Description

    Double Flange Flexible Jaw Coupling Spider For Heavy Machinery

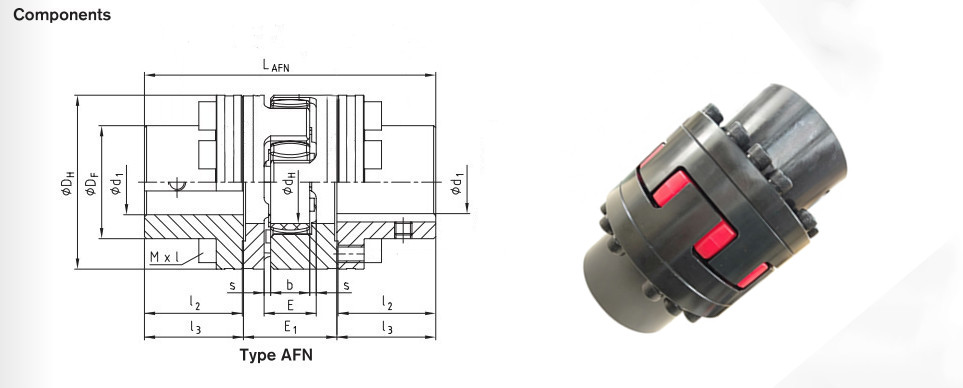

    Double flange design type AFN
    SizeMax. finish bore d1Dimensions[mm]Cap screws
    DHDFdHL2L3EE1sbLM×lz
    24275536273030.50183321494M5×168
    28306542303535.520392.515110M6×208
    38388052384545.52443318134M8×228
    424595624650512648320150M8×2512
    48501057051565728503.521164M8×2512
    5560120806065663060422192M10×308
    65701359468757635654.526217M10×3012
    7580160108808586.54075530248M12×4015
    90105200142100100101.545825.534285M16×4015
    100115225158113110111.55097338320M16×5015
    110130255178127120122551033.542347M20×5015
    12515029020614714014260116746400M20×6015
    140170320235165155157.5651287.550443M20×6015
    160200370270190175177.575146957501M24×7015
    1802304203152201951988515910.564555M24×8018
    products images

    Double Flange Flexible Jaw Coupling Spider For Heavy Machinery


    Double Flange Flexible Jaw Coupling Spider For Heavy Machinery


    Double Flange Flexible Jaw Coupling Spider For Heavy MachineryDouble Flange Flexible Jaw Coupling Spider For Heavy Machinery



    Packaging & Shipping

    Double Flange Flexible Jaw Coupling Spider For Heavy Machinery

    About Us

    Double Flange Flexible Jaw Coupling Spider For Heavy Machinery

    Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.

    Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..

    The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.

    Double Flange Flexible Jaw Coupling Spider For Heavy Machinery

    FAQ

    Q1: Are you trading company or manufacturer ?

    A: We are factory.


    Q2:Do you provide samples ? is it free or extra ?

    A: : Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.


    Q3: How long is your delivery time?

    A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.


    Q4:How long is your warranty?

    A: Our Warranty is 12 month.


    Q5 :Do you have inspection procedures for coupling ?

    A:100% self-inspection before packing


    Q6. What’s your payment?

    A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.
