LMZ-I / MLL-I Flexible Jaw Coupling Shaft Split Rubber Coupling With Wheel

LMZ-I/MLL-I Split Shaft Flexible Rubber Jaw Coupling With Wheel

Introduction Of LMZ-II/MLL-II Flexible Integral Plum Coupling With Brake Wheel

The LMZ-II/MLL-II Flexible Integral Plum Coupling With Brake Wheel is mainly composed of two convex teeth, which closely engages and is subjected to radial extrusion to transmit torque. When the two axis has relative offset, the elastic element has corresponding elastic deformation, which plays an automatic compensation role.
The LMZ-II/MLL-II Flexible Integral Plum Coupling With Brake Wheel has the following characteristics:
(1) the work is stable and reliable, and has good damping, buffer and electrical insulation performance.
(2) the structure is simple, the radial size is small, the weight is light, and the moment of inertia is small. It is suitable for middle and high speed occasions.
(3) it has large axial, radial and angular compensation ability.
(4) high strength polyurethane elastic element is wear-resistant, bearing capacity, long service life, safe and reliable.
(5) the coupling does not need lubrication, and the maintenance work is less, and it can run continuously for a long time.

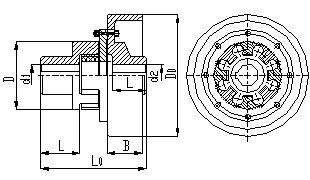

LMZ-I / MLL-I Flexible Jaw Coupling Shaft Split Rubber Coupling With Wheel

LMZ-I

LMZ-I / MLL-I Flexible Jaw Coupling Shaft Split Rubber Coupling With Wheel

LMZ-II

Model	Nominal Torque Tn N.m	High-point speed (n) r/min	Aperture Diameter d1 d2	Aperture longness mm		L0 recommendatory		D0	B	D	Most weight kg
				L	L recommendatory	LMZ-I	LMZ-II
LMZ5-I-160	250	4750	25-45	44-112	50	127	188.5	160	70	105	9
LMZ5-II-160											10
LMZ5-I-200	250	3800	25-45	44-112	50	127	203.5	200	85	105	10
LMZ5-II-200											14
LMZ6-I-200	400	3800	30-48	60-112	55	143	215	200	85	125	14
LMZ6-II-200											17
LMZ7-I-200	630	3800	35-56	60-112	60	159	227	200	85	145	17
LMZ7-II-200											22
LMZ7-I-250	630	3050	35-56	60-112	60	159	257	250	105	145	22
LMZ7-II-250											27
LMZ8-I-250	1120	3050	45-65	84-142	70	181	270	250	105	170	27
LMZ8-II-250											32
LMZ8-I-315	1120	2400	45-65	84-142	70	181	300	315	135	170	35
LMZ8-II-315											40
LMZ9-I-315	1800	2400	50-80	84-142	80	208	319	215	135	200	48
LMZ9-II-315											56
LMZ9-I-400	1800	1900	50-80	84-142	80	208	354	400	170	200	62
LMZ9-II-400											76
LMZ10-I-400	2800	1900	60-100	107-172	90	230	369	400	170	230	84
LMZ10-II-400											94
LMZ10-I-500	2800	1500	60-100	107-172	90	230	423	500	210	230	110
LMZ10-II-500											140
LMZ11-I-500	4500	1500	70-120	107-172	100	260	448	500	210	260	134
LMZ11-II-500											182
LMZ12-I-630	6300	1200	80-130	132-252	115	297	523	630	265	300	200
LMZ12-II-630											255
LMZ13-I-710	11200	1050	90-150	132-252	125	323	583	710	300	260	215
LMZ13-II-710											300
LMZ14-I-800	12500	950	100-160	167-302	135	333	633	800	340	400	300
LMZ14-II-800											330

Note:1.The diameter of the axial hole is used for the Z type shaft hole, and the brake wheel half coupling is not limited

2.The weight of the table is the maximum weight of the coupler
