Main features of the LMS single - sex coupling
1) stable and reliable operation, with good vibration damping,
buffering and electrical insulation performance.
2) simple structure, small radial size, light weight, small rotary
inertia, suitable for medium-high speed applications
3) it has great axial, radial and angular compensation ability.
4) the high-strength polyurethane elastic element is
wear-resistant, oil resistant, high bearing capacity, long service
life and safe and reliable

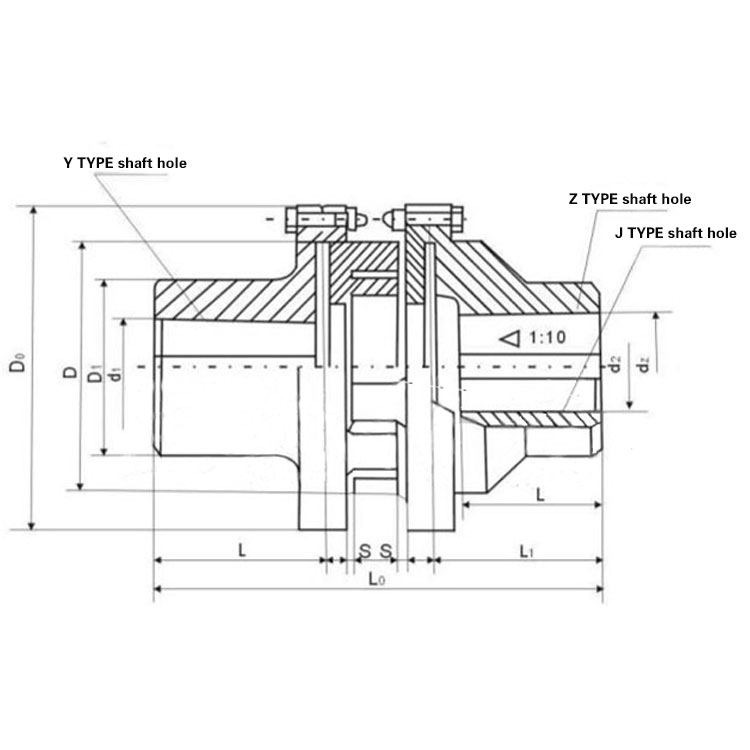

odel | Nominal Torque Tn | High-poing speed n | Aperture Diameter d1.d2 | Aperture longness | L0 recommendatory | D | D1 | Most weight kg | |||||
LM | LMD LMS | L | L recommendatory | LM | LMD | LMS | LM | LMD LMS | |||||
LM1 | 25 | 15300 | 8500 | 12-25 | 27-62 | 35 | 86 | 92 | 98 | 50 | 30 | 90 | 0.7 |
LMD1 | 1.6 | ||||||||||||
LMS1 | 2.2 | ||||||||||||
LM2 | 50 | 12000 | 7600 | 16-30 | 30-82 | 38 | 95 | 101.5 | 108 | 60 | 44 | 100 | 1.1 |
LMD2 | 2.4 | ||||||||||||
LMS2 | 3.0 | ||||||||||||
LM3 | 100 | 10900 | 6900 | 20-32 | 38-82 | 40 | 103 | 110 | 117 | 70 | 48 | 110 | 1.6 |
LMD3 | 3.2 | ||||||||||||
LMS3 | 3.8 | ||||||||||||
LM4 | 140 | 9000 | 6000 | 22-40 | 38-112 | 45 | 114 | 122 | 130 | 85 | 60 | 125 | 2.6 |
LMD4 | 4.6 | ||||||||||||
LMS4 | 5.2 | ||||||||||||
LM5 | 250 | 7300 | 5000 | 25-45 | 44-112 | 50 | 127 | 138.5 | 150 | 105 | 72 | 150 | 4.4 |
LMD5 | 5.6 | ||||||||||||
LMS5 | 6.3 | ||||||||||||
LM6 | 400 | 6100 | 4100 | 30-48 | 60-112 | 55 | 143 | 155 | 167 | 125 | 90 | 185 | 6.3 |
LMD6 | 8.6 | ||||||||||||
LMS6 | 9.5 | ||||||||||||
LM7 | 630 | 5300 | 3600 | 35-55 | 60-112 | 60 | 159 | 172 | 185 | 145 | 104 | 205 | 8.8 |
LMD7 | 11 | ||||||||||||
LMS7 | 17 | ||||||||||||
LM8 | 1120 | 4500 | 3100 | 45-65 | 84-142 | 70 | 181 | 195 | 209 | 170 | 130 | 240 | 14 |
LMD8 | 18 | ||||||||||||
LMS8 | 26 | ||||||||||||
LM9 | 1800 | 3800 | 2700 | 50-80 | 84-172 | 80 | 208 | 224 | 240 | 200 | 156 | 270 | 26 |
LMD9 | 32 | ||||||||||||
LMS9 | 38 | ||||||||||||
LM10 | 2800 | 3300 | 2500 | 60-100 | 107-212 | 90 | 230 | 248 | 268 | 230 | 180 | 305 | 42 |
LMD10 | 46 | ||||||||||||
LMS10 | 54 | ||||||||||||
LM11 | 4500 | 2900 | 2200 | 70-120 | 107-212 | 100 | 260 | 284 | 350 | 260 | 205 | 350 | 60 |
LMD11 | 72 | ||||||||||||
LMS11 | 84 | ||||||||||||
LM12 | 6300 | 2500 | 1900 | 80-130 | 132-252 | 115 | 297 | 321 | 400 | 300 | 245 | 400 | 88 |
LMD12 | 105 | ||||||||||||
LMS12 | 118 | ||||||||||||
LM13 | 11200 | 2100 | 1600 | 90-150 | 132-252 | 125 | 323 | 348 | 460 | 360 | 300 | 460 | 145 |
LMD13 | 158 | ||||||||||||
LMS13 | 215 | ||||||||||||
LM14 | 12500 | 1900 | 1500 | 100-160 | 167-302 | 135 | 333 | 358 | 500 | 400 | 335 | 500 | 165 |
LMD14 | 210 | ||||||||||||
LMS14 | 265 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is
a enterprises that specialized in research and production coupling.
Also we can develop new products and bulk-production. With rich
experience, professional R&D team and various equipment in
coupling, it has superior conditions to satisfied your different
requirements.
Company main products are: all kinds of couplings for machinery
industry all over the word , such as radial elastic coupling, tyred
coupling, universal coupling, drum gear coupling, plum flower form
elastic coupling, rigid coupling oldham coupling, roller chain
coupling, diaphragm coupling, coupling column elastic sleeve pin
couplings, elastic dowel pin, elastic dowel pin coupling, pump
shaft coupling, etc..
The concepts of our company is live on quality and develop on
honor. The coupling has the advantage of high quality, low price,
complete product models.Our company will be your best choice, and
we look forward to cooperate with you.
![]() |
