LMS/MLS Steel Flexible Jaw Plum Coupling With Double Flange

Product Description

1. the effective start of the decrease in the impact, vibration, thereby protecting motor.
2. effective overload protection, to protect the motor and machine work. Reduce mechanical damage.
3. in multi-drive system, effectively balance the electrical load.
4. the start-up can improve the electrical capacity to shorten the motor start-up time, reduce the impact grid.

Use:
Mainly used in the mining, metallurgical, cement, chemicals, construction, building materials, electric power, telecommunications, textiles, and transportation departments.
Such as:
Conveyor: Belt conveyor.AFC conveyor.Chain conveyor.Screw conveyor.
Pump: Water pump, oil pump, slush pump,etc
Fan: Draft fan,,fanner, boiler fan,etc
Excavator: Bucket excavator. Bucket wheel excavators.Bucket wheel stacker reclaimer.
Crane: Tower crane.Gantry crane.Bridge crane.
Others: Various elevators.Coal plough.Ball mill.Crusher.Recreation machine.
Blender equipment.Centrifuger.Washer.Leather-making machine.machine for
recreation park mixer wire drawing machine.Extruder,dregs crusher of boiler.
Plastic feeder.Rubber smelling machine.etc.

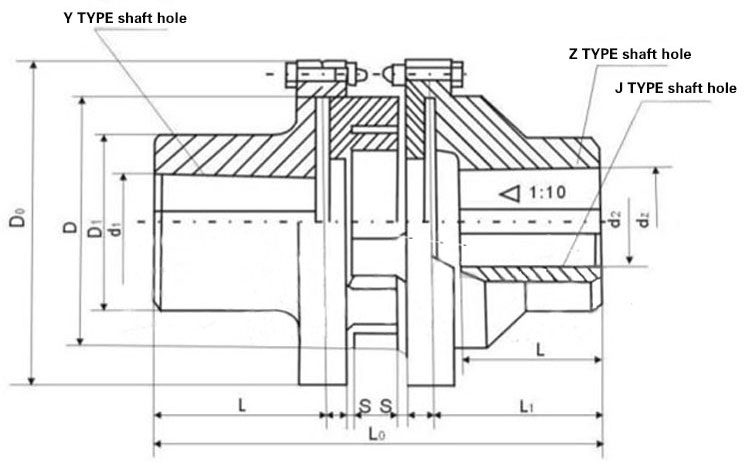

odel	Nominal Torque Tn N.m	High-poing speed n r/min		Aperture Diameter d1.d2 mm	Aperture longness		L0 recommendatory			D	D1		Most weight kg
		LM	LMD LMS		L	L recommendatory	LM	LMD	LMS		LM	LMD LMS
LM1	25	15300	8500	12-25	27-62	35	86	92	98	50	30	90	0.7
LMD1													1.6
LMS1													2.2
LM2	50	12000	7600	16-30	30-82	38	95	101.5	108	60	44	100	1.1
LMD2													2.4
LMS2													3.0
LM3	100	10900	6900	20-32	38-82	40	103	110	117	70	48	110	1.6
LMD3													3.2
LMS3													3.8
LM4	140	9000	6000	22-40	38-112	45	114	122	130	85	60	125	2.6
LMD4													4.6
LMS4													5.2
LM5	250	7300	5000	25-45	44-112	50	127	138.5	150	105	72	150	4.4
LMD5													5.6
LMS5													6.3
LM6	400	6100	4100	30-48	60-112	55	143	155	167	125	90	185	6.3
LMD6													8.6
LMS6													9.5
LM7	630	5300	3600	35-55	60-112	60	159	172	185	145	104	205	8.8
LMD7													11
LMS7													17
LM8	1120	4500	3100	45-65	84-142	70	181	195	209	170	130	240	14
LMD8													18
LMS8													26
LM9	1800	3800	2700	50-80	84-172	80	208	224	240	200	156	270	26
LMD9													32
LMS9													38
LM10	2800	3300	2500	60-100	107-212	90	230	248	268	230	180	305	42
LMD10													46
LMS10													54
LM11	4500	2900	2200	70-120	107-212	100	260	284	350	260	205	350	60
LMD11													72
LMS11													84
LM12	6300	2500	1900	80-130	132-252	115	297	321	400	300	245	400	88
LMD12													105
LMS12													118
LM13	11200	2100	1600	90-150	132-252	125	323	348	460	360	300	460	145
LMD13													158
LMS13													215
LM14	12500	1900	1500	100-160	167-302	135	333	358	500	400	335	500	165
LMD14													210
LMS14													265
