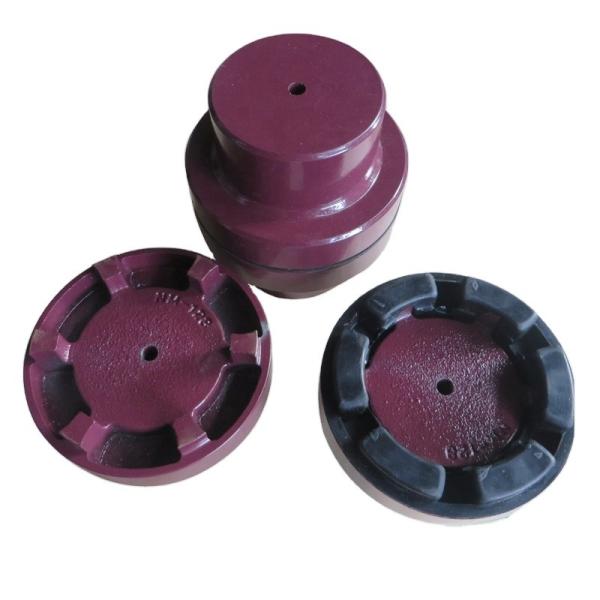

Plum blossom type elastic shaft coupling is made up of semi-shaft
coupling with the same protruding claw and elastic component.
Utilizing the plum blossom elastic component put between the
protruding claw and two half shaft coupling to realize the
connection of two semiaxis devices.
Application
Flexible coupling mainly used for start
frequently,rotating,high-speed,medium torque and high reliability
in the workplace. Such as:mining and
metallurgy,mine,petroleum,chemical,industry,overweight,transportation,light
industry,weaving,water pump,fan,etc. Work environment -35~+800°C.
| Basic parameters and main dimensions of NM pump coupling(mm) |
| Size | Torque Tn N/m | Max speed RPM | Bore diameter | DI | D | L | space&perm Tolerance | Weight |
| Nominal | Max | Min | Nax |
| NM50 | 1.3 | 2.3 | 13500 | 7 | 19 | 33 | 50 | 31 | 2. 0±0. 5 | 0.48 |
| NM67 | 2.2 | 4 | 10000 | 9 | 28 | 46 | 67 | 37 | 2.0±0.5 | 1.02 |
| NM82 | 5 | 9 | 8000 | 10 | 32 | 53 | 82 | 47 | 3. 0±l | 1.88 |
| NM97 | 10.5 | 19 | 7000 | 12 | 42 | 69 | 97 | 59 | 3. 0±l | 3.54 |
| NM112 | 16.7 | 30 | 6000 | 14 | 48 | 79 | 112 | 70 | 3. 5±1 | 5.4 |
| NM128 | 26.7 | 48 | 5000 | 18 | 55 | 90 | 128 | 80 | 3. 5±1 | 8.1 |
| NM148 | 41.7 | 75 | 7500 | 22 | 65 | 107 | 148 | 93 | 3. 5±1 | 13.5 |
| NM168 | 69.5 | 125 | 4000 | 28 | 75 | 124 | 167 | 106 | 3. 5±1. 5 | 19.3 |
| NM194 | 112 | 200 | 3500 | 32 | 85 | 140 | 194 | 110 | 3. 5±1. 5 | 26.3 |
| NM214 | 167 | 300 | 3000 | 45 | 95 | 157 | 214 | 110 | 4. 0±2 | 35.7 |
| NM240 | 267 | 480 | 2750 | 60 | 110 | 179 | 240 | 120 | 4. 0±2 | 46.7 |
| NM265 | 417 | 750 | 2500 | 70 | 120 | 198 | 265 | 140 | 5. 0±2. 5 | 66.3 |
