Product Description

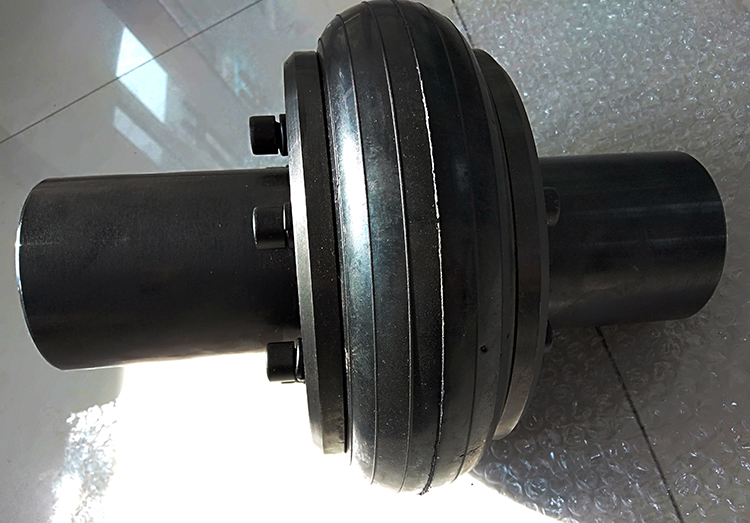

Introduction Of Flexible Tyre Coupling
tyre coupling is an elastic coupling with high performance, because
of the elastic element is as a whole tire body, the tire coupling
has good shock damping and the shaft offset compensation
performance, absorbing excellent and convenient assembly and
disassembly, no lubrication, easy maintenance, long life and other
advantages. The working temperature of tyre coupling -20~80 degrees
Celsius, transmitting torque 10~20000N.M, tyre coupling, suitable
for wet dust, shock, vibration, reversing the changeable and
frequent starting work environment.
| Type | Dimensions(mm) | Bolt amount | Bore diameter | Bore length | Torque | Speed | Moment of inertia | Mass |
| D | D1 | B | Md×L | d1 d2 | L | Tn | (n) | I | m |
| Y J1Z1 | N.M | r/min | Kg.m2 | Kg |
| LB1 | 60 | 20 | 26 | 12-M4×12 | 6-11 | 16-25 | 10 | 5000 | 0.0003 | 0.4 |
| LB2 | 100 | 36 | 32/37 | 12-M6×18 | 10-19 | 25-42 | 50 | 5000 | 0.0035 | 1.5 |
| LB3 | 120 | 44 | 39 | 12-M8×20 | 16-24 | 30-52 | 100 | 4500 | 0.01 | 2.2 |
| LB4 | 140 | 50 | 45 | 12-M10×20 | 22-35 | 38-82 | 160 | 4200 | 0.021 | 3.1 |
| LB5 | 160 | 60 | 51 | 12-M10×22 | 25-38 | 44-82 | 224 | 4000 | 0.031 | 5 |
| LB6 | 185 | 70 | 58 | 12-M12×25 | 30-45 | 60-112 | 315 | 3600 | 0.07 | 8.1 |
| LB7 | 220 | 85 | 68 | 12-M12×28 | 35-50 | 60-112 | 500 | 3200 | 0.15 | 13 |
| LB8 | 265 | 110 | 82 | 12-M12×32 | 40-56 | 84-142 | 800 | 2600 | 0.3 | 22 |
| LB9 | 310 | 120 | 106 | 12-M16×40 | 45-71 | 84-142 | 1250 | 2200 | 0.75 | 35 |
| / | 340 | 135 | 106 | 12-M16×45 | 55-75 | 84-142 | 1600 | 2000 | 1.1 | 51 |
| LB10 | 400 | 150 | 124 | 12-M20×50 | 60-85 | 107-172 | 2250 | 1800 | 2.2 | 69 |
| LB11 | 450 | 190 | 140 | 12-M20×56 | 80-120 | 132-212 | 5000 | 1600 | 4.4 | 110 |
| LB12 | 560/550 | 238 | 172 | 16-M24×71 | 100-150 | 167-252 | 10000 | 1200 | 14 | 190 |
| LB13 | 700 | 318 | 220 | 24-M24×71 | 130-200 | 202-352 | 20000 | 1000 | 38 | 340 |
About Us
Nanpi county Jude transmission equipment manufacturing co., LTD. is
a enterprises that specialized in research and production coupling.
Also we can develop new products and bulk-production. With rich
experience, professional R&D team and various equipment in
coupling, it has superior conditions to satisfied your different
requirements.
Company main products are: all kinds of couplings for machinery
industry all over the word , such as radial elastic coupling, tyred
coupling, universal coupling, drum gear coupling, plum flower form
elastic coupling, rigid coupling oldham coupling, roller chain
coupling, diaphragm coupling, coupling column elastic sleeve pin
couplings, elastic dowel pin, elastic dowel pin coupling, pump
shaft coupling, etc..
The concepts of our company is live on quality and develop on
honor. The coupling has the advantage of high quality, low price,
complete product models.Our company will be your best choice, and
we look forward to cooperate with you.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2:Do you provide samples ? is it free or extra ?
A: : Yes, we could offer the sample but not for free.Actually we
have a very good price principle, when you make the bulk order then
cost of sample will be return to you.
Q3: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is
7-25 days if the goods are not in stock, it is according to
quantity.
Q4:How long is your warranty?
A: Our Warranty is 12 month.
Q5 :Do you have inspection procedures for coupling ?
A:100% self-inspection before packing
Q6. What’s your payment?
A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C
Q7:Can I have a visit to your factory before the order? A:
Sure,welcome to visit our factory.
