Product Description
| Size | nominal | Allowable | Wt | Oil injection | Bore diameter | D1 | L | L2 | D | D2 | L1 | S | C |
| torque | speed | (Kg) | (Kg) |
| (Nm) | rpm | | | max | min |
| 1020T | 52 | 4500 | 1.91 | 0.027 | 29 | 13 | 97 | 99 | 48 | 40 | / | 67 | 39 | 3.2 |
| 1030T | 150 | 4500 | 2.59 | 0.041 | 35 | 13 | 106 | 99 | 48 | 49 | / | 68 | 39 | 3.2 |
| 1040T | 250 | 4500 | 3.36 | 0.054 | 41 | 13 | 114 | 105 | 51 | 57 | / | 70 | 40 | 3.2 |
| 1050T | 435 | 4500 | 5.44 | 0.068 | 48 | 13 | 135 | 124 | 60 | 67 | / | 81 | 45 | 3.2 |
| 1060T | 680 | 4350 | 7.26 | 0.086 | 54 | 19 | 148 | 130 | 64 | 76 | / | 93 | 52 | 3.2 |
| 1070T | 990 | 4125 | 10.43 | 0.113 | 64 | 19 | 159 | 155 | 76 | 87 | / | 97 | 54 | 3.2 |
| 1080T | 2050 | 3600 | 17.69 | 0.172 | 76 | 27 | 191 | 181 | 89 | 105 | / | 116 | 65 | 3.2 |
| 1090T | 3700 | 3600 | 25.4 | 0.254 | 89 | 27 | 211 | 200 | 99 | 124 | / | 122 | 72 | 3.2 |
| 1100T | 6300 | 2440 | 42.18 | 0.426 | 102 | 41 | 251 | 246 | 121 | 142 | / | 155 | / | 4.8 |
| 1110T | 9300 | 2250 | 54.43 | 0.508 | 114 | 41 | 270 | 259 | 127 | 160 | / | 162 | / | 4.8 |
| 1120T | 13600 | 2025 | 81.19 | 0.735 | 127 | 60 | 308 | 305 | 149 | 179 | / | 192 | / | 6.4 |
| 1130T | 19800 | 1800 | 120.66 | 0.907 | 152 | 67 | 346 | 330 | 162 | 217 | / | 195 | / | 6.4 |
| 1140T | 28500 | 1650 | 177.81 | 1.134 | 184 | 67 | 384 | 375 | 184 | 254 | / | 201 | / | 6.4 |
| 1150T | 39700 | 1500 | 226.8 | 1.95 | 203 | 108 | 453 | 372 | 183 | 269 | 391 | 272 | / | 6.4 |
| 1160T | 55800 | 1350 | 308.9 | 2.812 | 229 | 121 | 502 | 403 | 198 | 305 | 437 | 278 | / | 6.4 |
| 1170T | 74500 | 1225 | 447.7 | 3.493 | 254 | 133 | 567 | 438 | 216 | 356 | 487 | 307 | / | 6.4 |
| 1180T | 10300 | 1100 | 619.15 | 3.765 | 279 | 152 | 630 | 484 | 239 | 394 | 555 | 321 | / | 6.4 |
| 1190T | 136000 | 1050 | 775.64 | 4.4 | 305 | 152 | 676 | 525 | 259 | 437 | 608 | 325 | / | 6.4 |
| 1200T | 186000 | 900 | 1057.32 | 5.625 | 330 | 178 | 757 | 565 | 279 | 498 | 660 | 356 | / | 6.4 |
| 1210T | 248000 | 820 | 1424.28 | 10.523 | 356 | 178 | 845 | 622 | 305 | 533 | 751 | 432 | / | 12.7 |
| 1220T | 335000 | 730 | 1784.89 | 16.057 | 381 | 203 | 921 | 663 | 325 | 572 | 822 | 490 | / | 12.7 |
| 1230T | 435000 | 680 | 2266.6 | 24.04 | 406 | 203 | 1003 | 704 | 345 | 610 | 905 | 546 | / | 12.7 |
| 1240T | 558000 | 630 | 2950.16 | 33.793 | 432 | 254 | 1087 | 749 | 368 | 648 | / | 648 | / | 12.7 |
| 1250T | 745000 | 580 | 3832.86 | 50.122 | 470 | 254 | 1181 | 815 | 401 | 711 | / | 699 | / | 12.7 |
| 1260T | 931000 | 540 | 4681.98 | 67.177 | 508 | 254 | 1261 | 876 | 432 | 762 | / | 762 | / | 12.7 |
| Note:Cover material: 1020-1180 Aluminum permanent mold casting;
1190-1230 Aluminum sand casting; 1240-1260 Steel plate fabrication. |

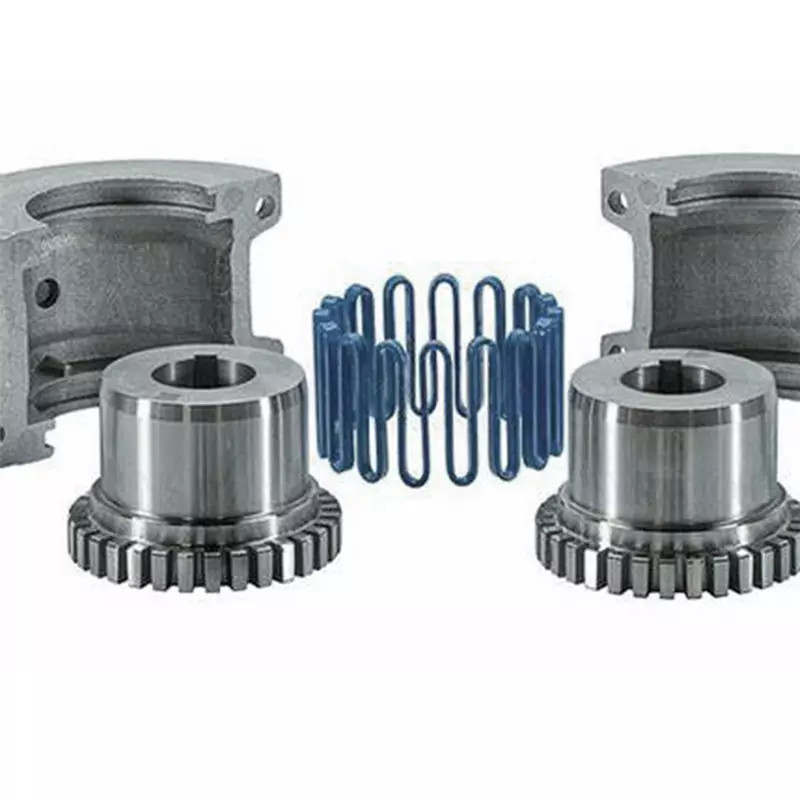

China Falk Grid Coupling Manufacturer Offers Falk Grid Couplings,
T10 Type Grid Couplings, Compact Structure, Small Overall Dimension
and Light Weight.
