GIICL Steel Drum Gear Coupling Drum Gear Coupling G20 G10
What are gear couplings and how do they work?
Gear couplings are designed to transmit torque between two shafts
that are not collinear. They typically consist of two flexible
joints—one fixed to each shaft—which are connected by a spindle, or
third shaft. The gear coupling connects the drive motor to the
gearbox in hoist mechanisms, but it can also connect the gearbox
directly to smaller wire rope drums using a flanged half.
In terms of their design, gear couplings transmit torque via hubs
with crowned gear teeth that are in permanent mesh with the
straight gear teeth of the sleeves—a design that provides the
highest torque transmission for the smallest size. They also run at
high speeds, conform to the AGMA bolting pattern and compensate for
angular, radial and axial shaft misalignment.
| Size | Torque Tn N-m | Speed [n] r/min | Bore | Length | D | H | A | C | Rotational inertia kg.m2 | Lube mL | Weight Kg |
| Y,J1 |
| dl,d2 | L |
| GIICL1 | 355 | 4000 | 14-35 | 38-82 | 103 | 2.0 | 36 | 8 | 0.0035- 0.00375 | 51 | 3.1 |
| GIICL2 | 630 | 4000 | 16-45 | 38-112 | 115 | 2.0 | 42 | 8 | 0.00550- 0.00675 | 70 | 3.5 |
| GIICL3 | 1000 | 4000 | 22-56 | 38-112 | 127 | 2.0 | 44 | 8 | 0.010- 0.0113 | 68 | 7.0 |
| GIICL4 | 1600 | 4000 | 38-65 | 60-142 | 149 | 2.0 | 49 | 8 | 0.02-0.0245 | 87 | 12.2 |
| GIICL5 | 2800 | 4000 | 40-75 | 84-142 | 167 | 2.5 | 55 | 10 | 0.0378- 0.0433 | 125 | 18.0 |
| GIICL6 | 4500 | 4000 | 45-90 | 84-172 | 187 | 2.5 | 56 | 10 | 0.0663- 0.0843 | 148 | 26.5 |
| GIICL7 | 6300 | 3750 | 50-105 | 84-212 | 204 | 3.5 | 60 | 10 | 0.103-0.151 | 175 | 39.2 |
| GIICL8 | 9000 | 3300 | 55-115 | 84-212 | 230 | 3.0 | 67 | 12 | 0.167-0.241 | 268 | 49.7 |
| GIICL9 | 14000 | 3000 | 60-135 | 107-252 | 256 | 3.0 | 69 | 12 | 0.316-0.470 | 310 | 79.6 |
| GIICL10 | 20000 | 2650 | 65-150 | 107-252 | 287 | 3.5 | 78 | 14 | 0.511-0.745 | 472 | 101 |
| GIICL11 | 31500 | 2350 | 70-175 | 107-302 | 325 | 3.5 | 81 | 14 | 1.096-1.588 | 550 | 161 |
| GIICL12 | 45000 | 2100 | 75-200 | 107-352 | 362 | 4.0 | 89 | 16 | 1.623-3.055 | 695 | 213 |
| GIICL13 | 63000 | 1850 | 150-225 | 202-352 | 412 | 4.5 | 98 | 18 | 3.925-4.918 | 1019 | 315 |
| GIICL14 | 100000 | 1650 | 170-250 | 242-410 | 462 | 5.5 | 172 | 22 | 8.025-9.725 | 3900 | 476 |
| GIICL15 | 160000 | 1500 | 190-285 | 282-470 | 512 | 5.5 | 182 | 22 | 14.300- 17.45 | 3700 | 696 |
| GIICL16 | 224000 | 1300 | 220-320 | 282-470 | 580 | 7.0 | 209 | 28 | 23.925-29.1 | 4500 | 913 |
| GIICL17 | 315000 | 1200 | 250-365 | 330-550 | 644 | 7.0 | 198 | 28 | 43.095- 53.725 | 4900 | 1322 |
| GIICL18 | 450000 | 1050 | 280-400 | 380-650 | 726 | 8.0 | 222 | 28 | 78.525- 99.500 | 7000 | 1948 |
| GIICL19 | 630000 | 950 | 300-470 | 380-650 | 818 | 8.0 | 232 | 32 | 136.750- 175.5 | 8900 | 3026 |

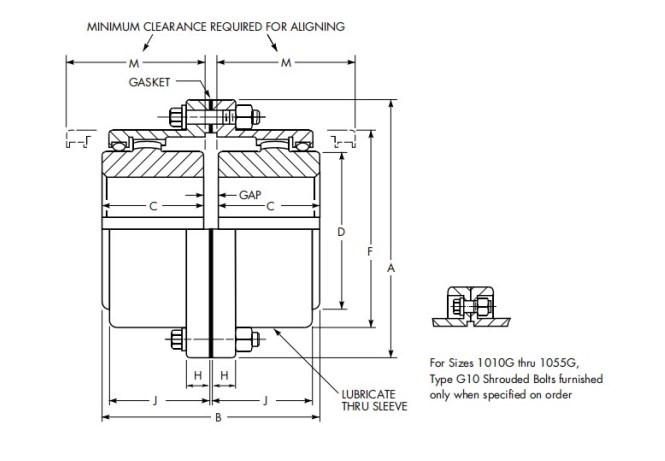

Type G20 Standard Flanged Sleeve Double Engagement
For Sizes 1010G thru 1055G,
Type G10 Shrouded Bolts furnished
only when specified on order
Dimensions (in)
| Size ① | Torque Rating (Ib-in)④ | Allow Speed RPM⑤ | Max Bore ⑥ | Min Bore ⑦ | CpIgWtWith No Bore (lb) | Lube Wt (lb) | A | B | C | D | F | H | J | M | GAP |
| G10 | G20 |
| 1010G | 10,080 | 8,000 | 1.875 | 0.50 | 9 | 10 | 0.09 | 4.56 | 3.50 | 1.69 | 2.70 | 3.30 | 0.55 | 1.53 | 2.00 | 0.125 |
| 1015G | 20,790 | 6,500 | 2.375 | 0.75 | 17 | 20 | 0.16 | 6.00 | 4.00 | 1.94 | 3.40 | 4.14 | 0.75 | 1.88 | 2.40 | 0.125 |
| 1020G | 37,800 | 5,600 | 2.875 | 1.00 | 30 | 35 | 0.25 | 7.00 | 5.00 | 2.44 | 4.14 | 4.98 | 0.75 | 2.34 | 3.00 | 0.125 |
| 1025G | 66,150 | 5,000 | 3.625 | 1.25 | 55 | 65 | 0.50 | 8.38 | 6.25 | 3.03 | 5.14 | 6.10 | 0.86 | 2.82 | 3.60 | 0.188 |
| 1030G | 107,100 | 4,400 | 4.125 | 1.50 | 85 | 95 | 0.80 | 9.44 | 7.37 | 3.59 | 6.00 | 7.10 | 0.86 | 3.30 | 4.20 | 0.188 |
| 1035G | 163,800 | 3,900 | 4.875 | 2.00 | 135 | 150 | 1.20 | 11.00 | 8.63 | 4.19 | 7.00 | 8.32 | 1.12 | 3.84 | 5.10 | 0.250 |
| 1040G | 270,900 | 3,600 | 5.750 | 2.50 | 195 | 215 | 2.00 | 12.50 | 9.75 | 4.75 | 8.25 | 9.66 | 1.12 | 4.38 | 5.70 | 0.250 |
| 1045G | 371,700 | 3,200 | 6,750 | 3.00 | 280 | 300 | 2.30 | 13.62 | 10.93 | 5.31 | 9.25 | 1,079 | 1.12 | 4.84 | 6.50 | 0.312 |
| 1050G | 500,900 | 2,900 | 7.375 | 3.50 | 390 | 420 | 3.90 | 15.31 | 12.37 | 6.03 | 10.00 | 12.04 | 1.50 | 5.54 | 7.20 | 0.312 |
| 1055G | 655,200 | 2,650 | 8.250 | 4.00 | 525 | 550 | 4.90 | 16.75 | 13.56 | 6.62 | 11.00 | 13.16 | 1.50 | 6.22 | 8.00 | 0.312 |
| 1060G | 800.100 | 2.450 | 9.125 | 4.50 | | 675 | 7.00 | 18.00 | 15.13 | 7.41 | 12.00 | 14.41 | LOO | 6.66 | 9.00 | 0.312 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is
a enterprises that specialized in research and production coupling.
Also we can develop new products and bulk-production. With rich
experience, professional R&D team and various equipment in
coupling, it has superior conditions to satisfied your different
requirements.
Company main products are: all kinds of couplings for machinery
industry all over the word , such as radial elastic coupling, tyred
coupling, universal coupling, drum gear coupling, plum flower form
elastic coupling, rigid coupling oldham coupling, roller chain
coupling, diaphragm coupling, coupling column elastic sleeve pin
couplings, elastic dowel pin, elastic dowel pin coupling, pump
shaft coupling, etc..
The concepts of our company is live on quality and develop on
honor. The coupling has the advantage of high quality, low price,
complete product models.Our company will be your best choice, and
we look forward to cooperate with you.
