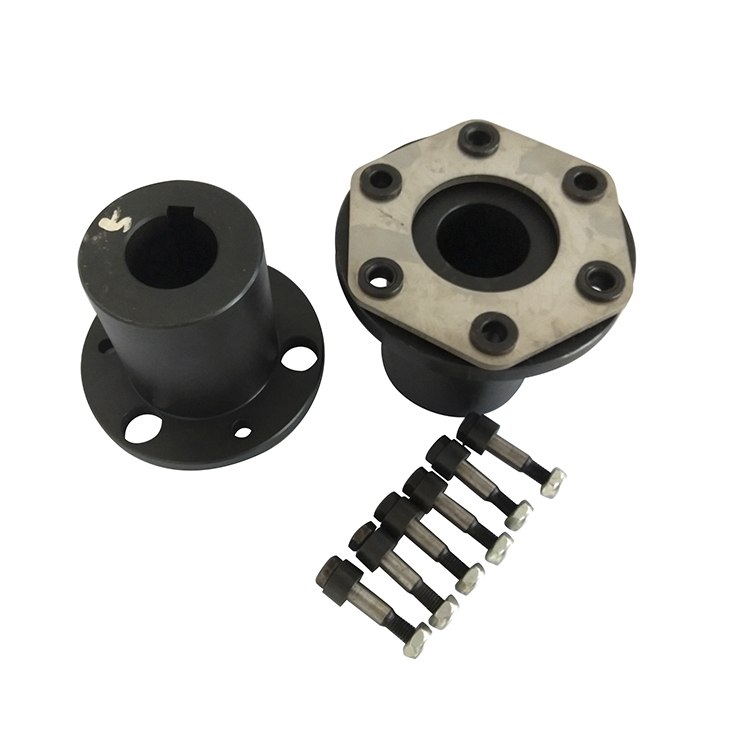

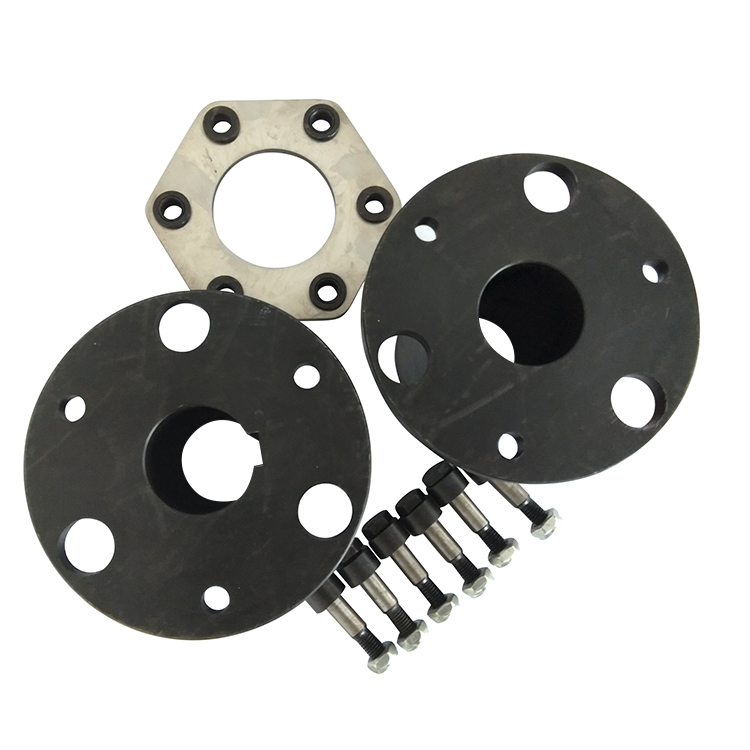

    Shrink Single Disc Shaft Coupling Flexible diaphragm Customized

    High Quality Flexible Single Disc Shrink Shaft Couplers


    Product Description

    Description
    Flexible diaphragm coupling achieves flexible transmission by elastic deformation of high strength alloy steel with thin plate. It means that this elastic diaphragm coupling transmits torque from the outside diameter of plate to the inside diameter, and then from inside to outside diameter. The deforming of the plate from inside diameter to outside diameter accomplishes the misalignment.

    Application
    Flexible diaphragm coupling can be broadly used in metallurgy, steel rolling, mine, chemical industry, shipbuilding, pump, blower fan and other industries.

    Features

    Unitized disc pack

    Infinite life when properly aligned

    Torsionally rigid without any back lash

    No need for lubrication or maintenance

    No wearing parts and high resistance to harsh environmental conditions

    Larger sizes are available upon request


    Power transmission

    0.1 – 70 MW

    Speeds

    up to 80 000 rpm

    Torque

    up to 1 500 000 Nm

    Design models

    single diaphragm

    double-diaphragm

    Connection type

    Inside hub

    Outside hub

    Flange

    Diaphragm-sleeve connection

    Bolted

    Shrink Single Disc Shaft Coupling Flexible diaphragm CustomizedShrink Single Disc Shaft Coupling Flexible diaphragm Customized

    Shrink Single Disc Shaft Coupling Flexible diaphragm Customized


    JMII Type Diaphragm/disc industrial Coupling Performance Data
    SizeTorquePeak TorqueMax SpeedBore diaBore LENDDItTorsional StiffnessWeightRotation al inertia
    Tn /N.mTmax /N.mnmax r/mind1, d2JI YRECOMMENDx10Kgkg.m2
    LL
    JMI 140631070014-2827-623580398±0.20.370.9(I (1( 1( 1H
    JMII 263100930020-3838-824092530.451.40.0011
    JMII 3100200840025-4544-11245102630.562.10.002
    JMII 4250400670030-5560-1125512877ll±0.30.814.20.006
    JMII 5500800590035-6560-14265145911.26.40.012
    JMII 68001250510040-7584-1427516810514±0.31.429.60.024
    JMII 710002000475045-8084-1728018011215±0.41.912.50.0365
    JMII 816003150430050-8584-1722001202.3515.50.057
    JMII 925004000420055-8584-17220520±0.42.716.50.065
    JMII 1031505000400055-9084-172902151283.0219.50.083
    JMII 1140006300365060-95107-17210023513223±0.53.46250.131
    JMII 1250008000340060-100107-2122501453.67300.174
    JMII 13630010000320063-110107-2121102701555.2360.239
    JMII 14800012500285065-110107-21211530016227±0.67.8450.38
    JMII 151000016000270070-125107-2121253201768.43550.5
    JMII 161250020000245075-130107-25214035018632±0.710.23750.85
    JMII 171600025000230080-140132-25214537020310.97851.1
    JMII 182000031500215090-160132-30216540023013.071151.65
    JMII 1925000400001950100-170167-30217544024538±0.914.261502.69
    JMII 2031500500001850110-180167-30218546026022.131703.28
    JMII 2135500560001800120-200167-28220048028023.72004.28
    JMII 2240000630001700130-200202-35221050029524.62305.18
    JMII 2350000800001600140-220202-35222054031044±129.712757.7
    JMII 24630001000001450150-240202-41024060033550±1.232.643809.3
    JMII 25800001250001400160-250242-35225562035050±1.237.6941015.3
    JMII 26900001400001300180-260242-41027566038550.4351020.9
    JMII 271120001800001200190-280282-47029572041060±1.471.5162032.4
    JMII 281400002000001150220-300282-47030074042093.3768036
    JMII 291600002240001100240-320330-470320770450114.5378043.9
    JMII 301800002800001050250-340330-550350820490130.7695060.5
