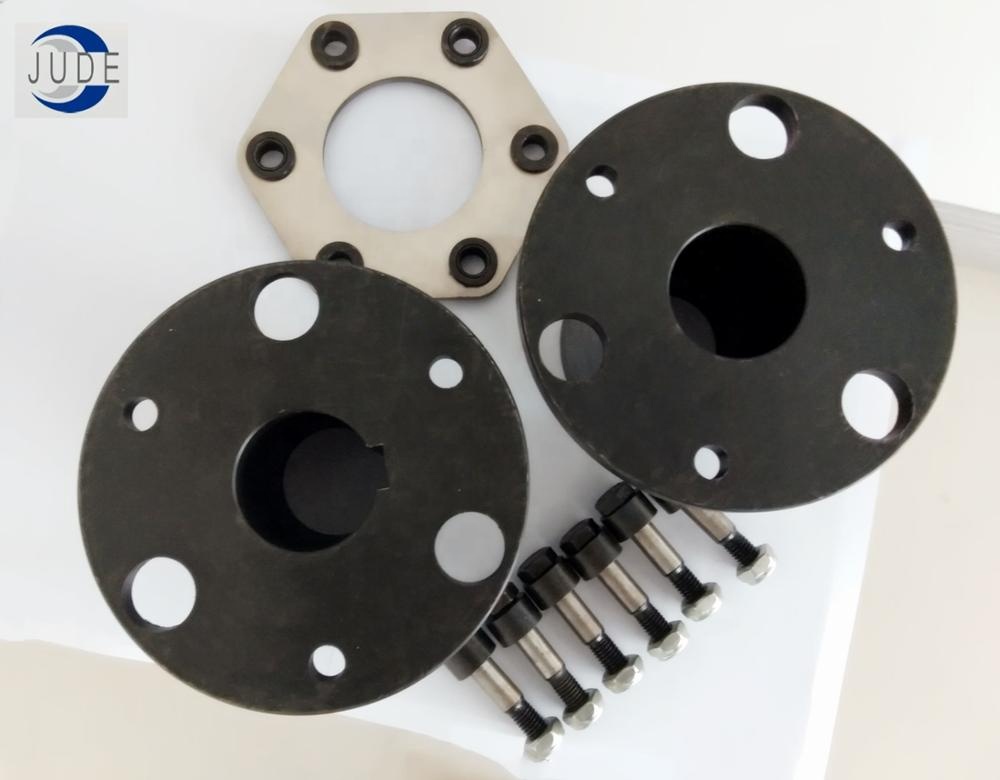

Black Disc Steel Flexible Diaphragm Coupling For Textile Machinery

Diaphragm Coupling Used in Textile machinery

Product Description

Features of disc coupling:

Axial compensation ability is strong, compared with the gear coupling. Angular displacement can be doubled.Flexible, allow axial, radial and angular displacement.
It has obvious damping effect, no noise, no wear.
Adapt to high temperature (-80+300).Can work in harsh environment.And safe operation in the impact, vibration environment.
High transmission efficiency, up to 99.86%.Especially suitable for medium and high speed power transmission.
Simple structure, light weight, small size, easy to assemble and disassemble.No lubrication is required.
Accurately transfer the speed, running without slip, can be used for the transmission of precision machinery.

Power transmission	0.1 – 70 MW
Speeds	up to 80 000 rpm
Torque	up to 1 500 000 Nm
Design models	single diaphragm double-diaphragm
Connection type	Inside hub Outside hub Flange
Diaphragm-sleeve connection	Bolted

Black Disc Steel Flexible Diaphragm Coupling For Textile Machinery

Size	Torque	Max torque	Speed	Bore	Length				D	Twist	t	Inertia	m

	Tn	Tmax	[n]	d						C		I	/ kg ≈
	/N·m	/N·m	/r·min	(H7)	Y type	J, J1,		L recommended		/N·m·rad-1		kg·m2 ≈
						Type Z
					L	L	L1
JMI1	25	80	6000	14	32	-	J1 27 Z1 20	35	90	1 × 104	8.8	0.0007	1
				16, 18, 19	42		30
				20, 22	52		38
JMI2	63	180	5000	18, 19	42	-	30	45	100	1.4 × 104	9.5	0.001	1.3
				20, 22, 24	52		38
				25	62		44
JMI3	100	315	5000	20, 22, 24	52	-	38	50	120	1.87 × 104	11	0.0024	2.3
				25, 28	62		44
				30	82		60
JMI4	160	500	4500	24	52	-	38	55	130	3.12 × 104	12.5	0.0037	3.3
				25, 28	62		44
				30, 32, 35	82		60
JMI5	250	710	4000	28	62	-	44	60	150	4.32 × 104	14	0.0083	5.3
				30-32-35	82		60
				40	112		84
JMI6	400	1120	3600	32, 35, 38	82	82	60	65	170	6.88 × 104	15.5	0.0159	8.7
				40, 42, 45	112	-	84
				, 48, 50
JMI7	630	1800	3000	40, 42	112	112	84	70	210	10.35 × 104	19	0.0432	14.3
				45, 45, 50		-
				, 55, 56
				60	142		107
JMI8	1000	2500	2800	45, 48	112	112	84	80	240	16.11 × 104	22.5	0.0879	22
				50, 55, 56		-
				60-63-65	142		107
JMI9	1600	4000	2500	55, 56	112	112	84	85	260	26.17 × 104	24	0.1415	29
				60, 63, 65	142	-	107
				, 70, 71, 75
				80	172		132
JMI10	2500	6300	2000	63, 65, 70	142	142	107	90	280	7.88 × 104	17	0.2974	52
				, 71, 75
				80-85-90	172	-	132
JMI11	4000	9000	1800	75	142	142	107	95	300	10.49 × 104	19.5	0.4782	69
				80-85-90	172	-	132
				100, 110	212		167
JMI12	6300	12500	1600	90, 95	172	-	132	120	340	14.07 × 104	23	0.8067	94
				100, 110	212		167
				, 120, 125
JMI13	10000	18000	1400	100, 110	212	-	167	135	380	19.23 × 104	28	1.7053	128
				, 120, 125
				130, 140	252		202
JMI14	16000	28000	1200	120, 125	212	-	167	150	420	30.01 × 104	31	2.6832	184
				130, 140, 150	252		202
				160	302		242
JMI15	25000	40000	1120	140, 150	252	-	202	180	480	47.46 × 104	37.5	4.8015	263
				160, 170, 180	302		242
JMI16	40000	56000	1000	160, 170, 180	302	-	242	200	560	68.09 × 104	41	9.4118	384
				190, 200	352		282
JMI17	63000	80000	900	190, 200, 220	352	-	282	220	630	101.3 × 104	47	18.3753	561
				240	410		330
JMI18	100000	125000	800	220	352	-	282	250	710	161.4 × 104	54.5	28.2033	723
				240, 250, 260	410		330
JMI19	160000	200000	700	250, 260	410	-	330	280	800	79.3 × 104	48	66.5813	1267
				280,300,320	470		380
