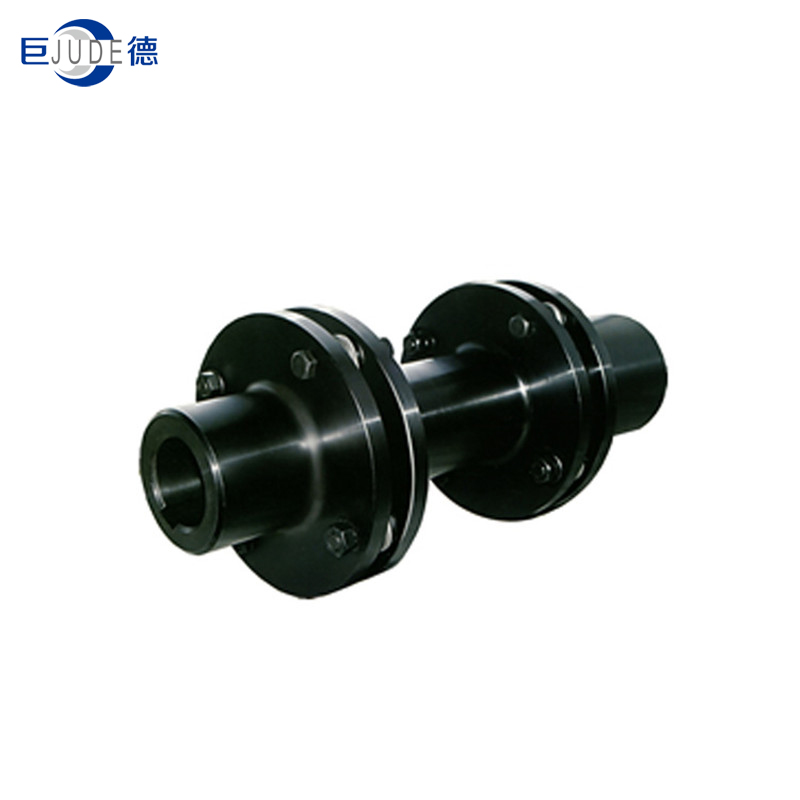

JZMJ Heavy Duty Elastic Flexible Diaphragm Coupling High Torque With Double Key

JZMJ Heavy Duty Elastic Diaphragm Coupling With Double Key

Product Description

ZMJ Heavy Duty Elastic Double Key Diaphragm Coupling belongs to high torque diaphragm coupling heavy machinery shaft connection is a strengthening coupling JMJ diaphragm coupling, JZMJ Heavy Duty Elastic Double Key Diaphragm Coupling is composed of several groups of diaphragm (stainless steel sheet) coupled with the two half couplings with bolts staggered, increase the transmission distance through the intermediate shaft. Because there are two groups of the diaphragm of the heavy elastic diaphragm of the intermediate shaft of the intermediate shaft, the flexible compensation of the JZMJ is much better than that of the common diaphragm coupler.

JZMJ Heavy Duty Elastic Double Key Diaphragm Coupling rely on elastic deformation of diaphragm to compensate relative displacement of two connected axes. Diaphragm is divided into connecting rod type and different shape whole piece. Its characteristics are: no lubrication, compact structure, high strength, long service life, no rotation clearance, not affected by temperature and oil, with high mechanical strength, large bearing capacity, light weight, small size, transmission efficiency and high precision, good reliability, convenient assembly and disassembly, and has no relative sliding, long service life, no noise, acid and alkali resistance, corrosion

resistance etc..

Related products

JZM - basic type;

JZMJ - intermediate shaft type;

JZMJ Heavy Duty Elastic Flexible Diaphragm Coupling High Torque With Double Key

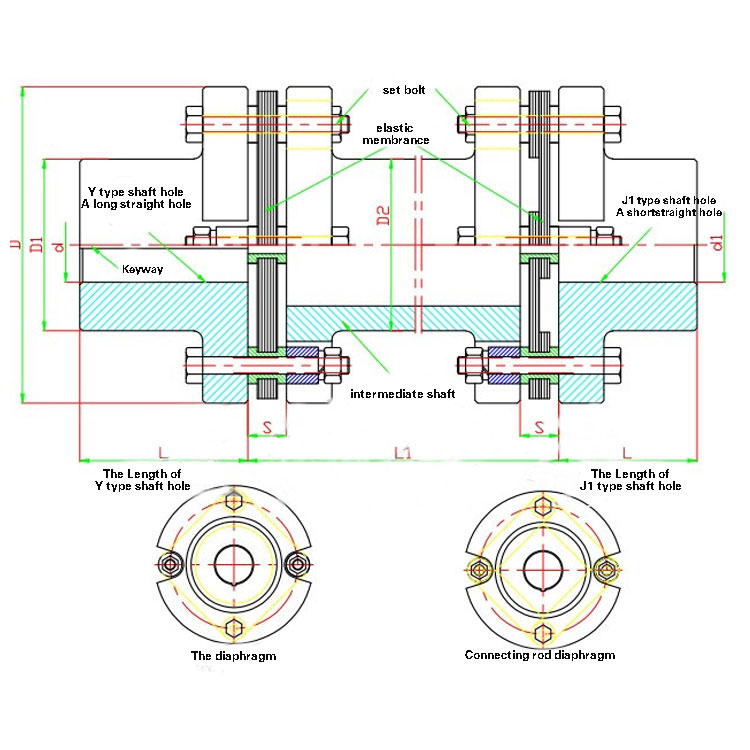

Basic parameters of JZMJ diaphragm coupling

Size	Torque Tn Nm	Speed [n] r/min	Bore d, d1	length L		D mm	D1 mm	D2 mm	L1min mm	t mm	Inertia kg.㎡	Mass kg
				J1	Y							L1min	Every 1m
JZMJ1	63	9300	20	38	52	92	53	60	44	8±0.2	0.01	3.7	22.79
			25, 28	44	62
			30	60	82
JZMJ2	100	8400	25, 28	44	62	102	63	72	49	8±0.2	0.018	6.3	32
			30	60	82
			40	84	112
JZMJ3	250	6700	30	60	82	128	77	87	60	11±0.3	0.056	9.14	46
			40, 42, 45, 48, 50, 55	84	112
JZMJ4	500	4900	35, 38	60	82	145	91	102	70	11±0.3	0.095	13.63	64
			40, 42, 45, 48, 50, 55, 56	84	112
			60	107	142
JZMJ5	800	5100	40, 42, 45, 48, 50, 55, 56	84	112	168	105	117	83	14±0.3	0.219	23.35	84
			60, 63, 65, 70, 71, 75	107	142
JZMJ6	1000	4750	45	84	112	180	112	124	86	15±0.4	0.35	32.28	94
			60, 63, 65, 70, 71, 75	107	142
			80	132	172
JZMJ7	1600	4300	50	84	112	200	120	134	86	15±0.4	0.51	39.07	110
			60, 63, 65, 70, 71, 75	107	142
			80, 85	132	172
JZMJ8	2000	4200	55, 56	84	112	205	120	135	91	20±0.4	0.53	39.86	112
			60, 63, 65, 70, 71, 75	107	142
			80, 85	132	172
JZMJ9	2500	4000	55, 56	84	112	215	128	145	101	20±0.4	0.68	46.78	129
			60, 63, 65, 70, 71, 75	107	142
			80	132	172
JZMJ10	3150	3650	60, 63, 65, 70, 71, 75	107	142	235	132	151	109	23±0.5	0.97	56.13	140
			80	132	172
JZMJ11	4000	3400	60, 63, 65, 70, 71, 75	107	142	250	145	164	109	23±0.5	1.48	74.09	165
			80	132	172
			100	167	212
JZMJ12	6300	3200	60, 63, 65, 70, 71, 75	107	142	270	155	184	119	23±0.5	2.13	87.65	207
			80	132	172
			100, 110	167	212
JZMJ13	12500	2850	65	107	142	300	162	194	128	27±0.6	2.93	106.23	231
			80	132	172
			100	167	212
JZMJ14	16000	2700	70	107	142	320	176	213	138	27±0.6	3.98	125.23	278
			80	132	172
			100	167	212
JZMJ15	20000	2450	75	107	142	350	186	215	153	32±0.7	6.44	173.52	283
			80	132	172
			100	167	212
			130	202	252
JZMJ16	25000	2300	80	132	172	370	203	235	158	32±0.7	8.48	200.88	338
			100	167	212
			130,140,150	202	252
JZMJ17	31500	2150	80	132	172	400	230	266	178	32±0.7	14.2	279.61	433
			100	167	212
			130,140,150	202	252
			160	242	302
JZMJ18	40000	1950	100	167	212	440	245	280	19038	38±0.9	20.73	345.53	480
			130,140,150	202	252
			160,170,180	242	305
JZMJ19	45000	1850	100	167	212	460	260	300	200	38±0.9	28.56	421	551
			130,140,150	202	252
			160,170,180	242	302
			190	282	352
JZMJ20	50000	1800	120, 125	167	212	480	280	320	215	38±0.9	32.52	482.6	628
			130,140,150	202	252
			160,170,180	242	302
			190,200	282	352
JZMJ21	56000	1700	120, 125	167	212	500	295	336	225	38±0.9	43.05	536	692
			130,140,150	202	252
			160,170,180	242	302
			190,200,220	282	352
JZMJ22	63000	1600	140,150	202	252	540	310	360	236	44±1	58.99	641	794
			160,170,180	242	302
			190,200,220	282	352
JZMJ23	80000	1450	140,150	202	252	600	335	385	257	50±1.2	98.45	880	908
			160,170,180	242	302
			190,200,220	282	352
			240	330	410
JZMJ24	100000	1400	160,170,180	242	302	320	350	408	272	50±1.2	116.15	964	1020
			190,200,220	282	352
			240,250	330	410
JZMJ25	125000	1300	180	242	302	660	385	445	292	50±1.2	163.85	1204	1251
			190,200,220	282	352
			240,250,260	330	410
			280	380	470
JZMJ26	160000	1200	180	242	302	720	410	485	317	60±1.4	245.9	1507	1441
			190,200,220	282	352
			240,250,260	330	410
			280,300	380	470
JZMJ27	200000	1150	220	282	352	740	420	503	322	60±1.4	275.08	1594	1550
			240,250,260	330	410
			280,300	380	470
JZMJ28	250000	1100	240,250,260	330	410	770	450	530	342	60±1.4	342.37	1807	1721
			280,300	380	470
JZMJ29	315000	1050	250,260	330	410	820	490	559	372	60±1.4	514.91	2358	2025
			280,300,320	380	470
			340	450	550
JZMJ30	500000	760	280,300,320	380	470	875	520	575	419	50±1.6	28.63	2507	1915
			340,360	450	550
JZMJ31	63000	715	300,320	380	470	935	560	610	464	60±1.9	980.83	3391	2280
			340,360,380	450	550
			400	540	650
JZMJ32	800000	650	320	380	470	103	600	622	494	60±1.9	1368	3697	2370
			340,360,380	450	550
			400,420	540	650
JZMJ33	1000000	620	360,380	450	550	1080	660	660	510	66±2.2	1689	4450	2669
			400,420,440,450,460	540	650
JZMJ34	1250000	576	400,420,440,450,460	540	650	1160	710	750	565	70±2.3	2645	5877	3446
			480,500
JZMJ35	160000	520	440,450,460,480,500	540	650	1290	820	820	620	82±2.6	4775	8550	4120
			530,560	680	800
JZMJ36	2000000	475	480,500	540	650	1410	900	900	685	92±2.8	7620	11211	4962
			530,560,600	580	800

JZMJ Heavy Duty Elastic Flexible Diaphragm Coupling High Torque With Double Key
