Product Description

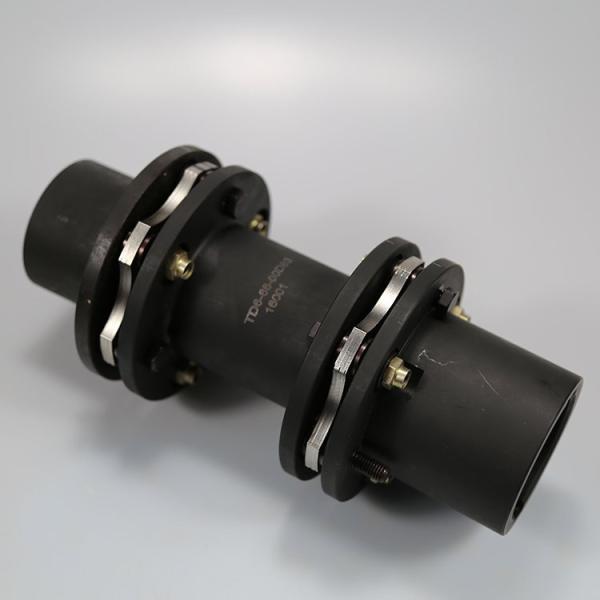

Diaphragm Couplings allow the transmission of torque. They can
handle misalignment, based on the thickness distribution (or
profile) of the diaphragm. Unlike competing designs, we use a
single stainless steel diaphragm. This eliminates the need for
extra bolts, rivets, splines and filler rings.
It also greatly simplifies the task of shaping the perfect
diaphragm, since we need only one diaphragm per end. We use a
modified profile based on extensive FEA. The thickness of the
diaphragm varies so stress is distributed evenly when the diaphragm
flexes. This happens under the simultaneous effects of torque,
speed, axial misalignment and angular misalignment.
Features & Benefits:
- All couplings are custom designed to meet the specific requirement
of the application and OEM – Engineered drive solutions.
- Meets API 671.
- Field replaceable, stockable diaphragm – not available from anyone
else.
- Specially contoured one piece design – easy to install, cost
competitive and easy to customize.
- Patented one piece design – handles more misalignment and greater
range of torsional stiffness.
- Torque capacity over 50 million In-Lb. (5650 kN-m).
- Shaft diameter over 19 inches (480 mm).
- Other features: piloted fits, 15-5 pH stainless steel and other
material available, shot peened, inherently low windage.
- Options: Electrically insulated, shear section, back up or fail
safe gears, various materials, and many more.
| common bore diameter d1,d2 | | | | | | LP | | tightening screw torque
(N.M) |
| 5,6,6.35,7,8,9,9.525,10,11,12, | | | | | | | | |
| 6,8,9,9.525,10,11,12,12.7,14,15 | | | | | | | | |
| 6,8,9,9.525,10,11,12,12.7,14,15,16,17,18 | | | | | | | | |
| 10,12,12.7,14,15,16,17,18,19,20,22,24 | | | | | | | | |
| 14,15,16,17,18,19,20,22,24,25,28,30 | | | | | | | | |
| 17,18,19,20,22,24,25,28,30,32,35,38 | | | | | | | | |
