Product Description
Introduction Of JMIIJ High Quality Double Disc Flexible Diaphragm
Coupling

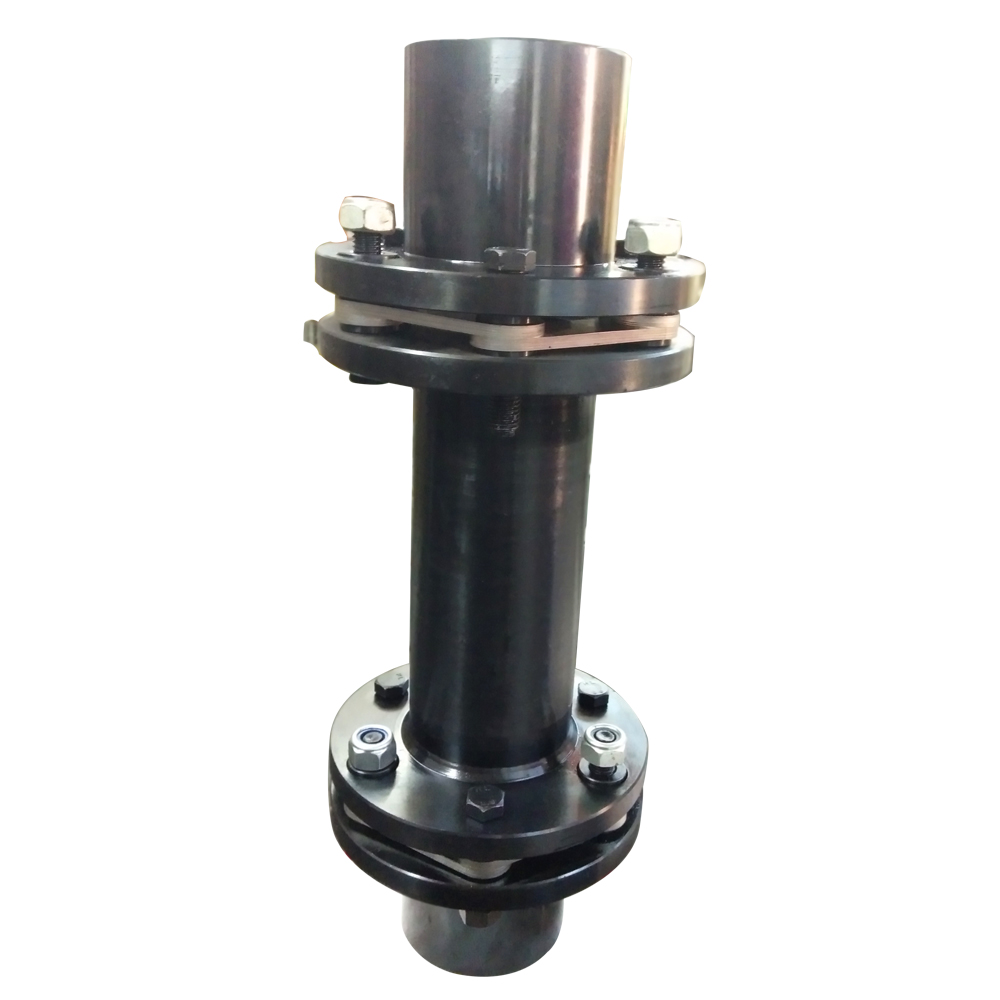

JMIIJ High Quality Double Disc Flexible Diaphragm Coupling
compensates for two axis misalignment, strong radial displacement,
small flexibility and large axial displacement, allowing axial,
radial and angular displacement. The JMIIJ High Quality Double Disc
Flexible Diaphragm Coupling are different from the common diaphragm

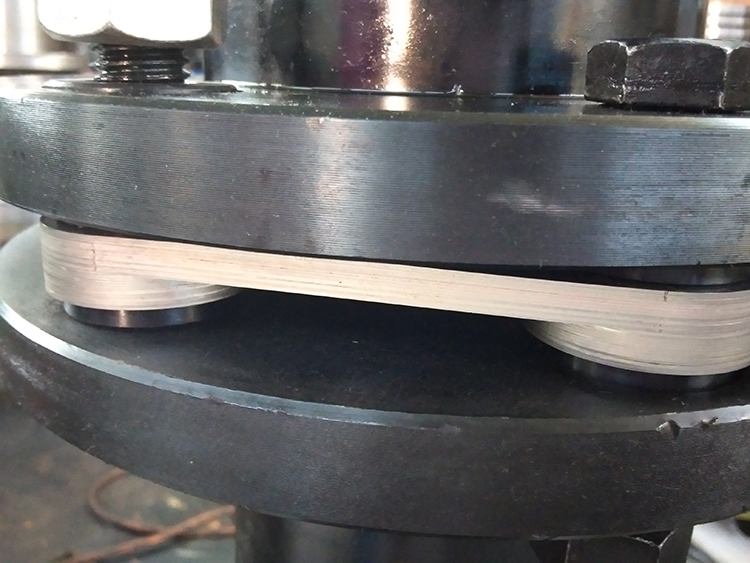

couplings. They not only connect the intermediate shaft, extend the
transmission distance, but also have two diaphragms to increase the
flexibility compensation amount, so they are also called double
diaphragm couplings.
JMIIJ High Quality Double Disc Flexible Diaphragm Coupling can
accurately transfer speed, operation without rotation difference,
and can be used for precision mechanical transmission. The
transmission efficiency is up to 99.86% in the transmission,
especially for medium and high speed high power transmission. It is
simple in structure, light in weight, small in volume and
convenient in assembly and dismantling. Do not have to move the
machine to install, without lubrication. Adapt to the high
temperature (-80+300) and the bad environment work, and can be
operated safely under the condition of shock and vibration. It has
obvious shock absorption, no noise, no wear and tear.
Model | torque Tn N.m | RPM [n] r/min | Shaft hole diameter d,d1 | Shaft hole length L | D | D1 | D2 | t | Torsional stiffness×106 N.m/rad |
J1 | Y |
JZMJ1 | 63 | 9300 | 20,22,24 | 38 | 52 | 92 | 53 | 60 | 44 | 8±0.2 |
25,28 | 44 | 62 |
30,32,35,38 | 60 | 82 |
JZMJ2 | 100 | 8400 | 25,28 | 44 | 62 | 102 | 63 | 72 | 49 | 8±0.2 |
30,32,35,38 | 60 | 82 |
40,42,45 | 84 | 112 |
JZMJ3 | 250 | 6700 | 30,32,35,38 | 60 | 82 | 128 | 77 | 87 | 60 | 11±0.3 |
40,42,45,48,50,55 | 84 | 112 |
JZMJ4 | 500 | 4900 | 35,38 | 60 | 82 | 145 | 91 | 102 | 70 | 11±0.3 |
40,42,45,48,50,55,56 | 84 | 112 |
60,63,65 | 107 | 142 |
JZMJ5 | 800 | 5100 | 40,42,45,48,50,55,56 | 84 | 112 | 168 | 105 | 117 | 83 | 14±0.3 |
60,63,65,70,71,75 | 107 | 142 |
JZMJ6 | 1000 | 4750 | 45,48,50,55 | 84 | 112 | 180 | 112 | 124 | 86 | 15±0.4 |
60,63,65,70,71,75 | 107 | 142 |
80 | 132 | 172 |
JZMJ7 | 1600 | 4300 | 50,55,56 | 84 | 112 | 200 | 120 | 134 | 86 | 15±0.4 |
60,63,65,70,71,75 | 107 | 142 |
80,85 | 132 | 172 |
JZMJ8 | 2000 | 4200 | 55,56 | 84 | 112 | 205 | 120 | 135 | 91 | 20±0.4 |
60,63,65,70,71,75 | 107 | 142 |
80,85 | 132 | 172 |
JZMJ9 | 2500 | 4000 | 55,56 | 84 | 112 | 215 | 128 | 145 | 101 | 20±0.4 |
60,63,65,70,71,75 | 107 | 142 |
80,85,90 | 132 | 172 |
JZMJ10 | 3150 | 3650 | 60,63,65,70,71,75 | 107 | 142 | 235 | 132 | 151 | 109 | 23±0.5 |
80,85,90,95 | 132 | 172 |
JZMJ11 | 4000 | 3400 | 60,63,65,70,71,75 | 107 | 142 | 250 | 145 | 164 | 109 | 23±0.5 |
80,85,90,95 | 132 | 172 |
100 | 167 | 212 |
JZMJ12 | 6300 | 3200 | 60,63,65,70,71,75 | 107 | 142 | 270 | 155 | 184 | 119 | 23±0.5 |
80,85,90,95 | 132 | 172 |
100,110 | 167 | 212 |
JZMJ13 | 12500 | 2850 | 65,70,71,75 | 107 | 142 | 300 | 162 | 194 | 128 | 27±0.6 |
80,85,90,95 | 132 | 172 |
100,110,120 | 167 | 212 |
JZMJ14 | 16000 | 2700 | 70,71,75 | 107 | 142 | 320 | 176 | 213 | 138 | 27±0.6 |
80,85,90,95 | 132 | 172 |
100,110,120,125 | 167 | 212 |
JZMJ15 | 20000 | 2450 | 75 | 107 | 142 | 350 | 186 | 215 | 153 | 32±0.7 |
80,85,90,95 | 132 | 172 |
100,110,120,125 | 167 | 212 |
130 | 202 | 252 |
JZMJ16 | 25000 | 2300 | 80,85,90,95 | 132 | 172 | 370 | 203 | 235 | 158 | 32±0.7 |
100,110,120,125 | 167 | 212 |
130,140,150 | 202 | 252 |
JZMJ17 | 31500 | 2150 | 80,85,90,95 | 132 | 172 | 400 | 230 | 266 | 178 | 32±0.7 |
100,110,120,125 | 167 | 212 |
130,140,150 | 202 | 252 |
160 | 242 | 302 |
JZMJ18 | 40000 | 1950 | 100,110,120,125 | 167 | 212 | 440 | 245 | 280 | 19038 | 38±0.9 |
130,140,150 | 202 | 252 |
160,170,180 | 242 | 305 |
JZMJ19 | 45000 | 1850 | 100,110,120,125 | 167 | 212 | 460 | 260 | 300 | 200 | 38±0.9 |
130,140,150 | 202 | 252 |
160,170,180 | 242 | 302 |
190 | 282 | 352 |
About Us
Nanpi county Jude transmission equipment manufacturing co., LTD. is
a enterprises that specialized in research and production coupling.
Also we can develop new products and bulk-production. With rich
experience, professional R&D team and various equipment in
coupling, it has superior conditions to satisfied your different
requirements.
Company main products are: all kinds of couplings for machinery
industry all over the word , such as radial elastic coupling, tyred
coupling, universal coupling, drum gear coupling, plum flower form
elastic coupling, rigid coupling oldham coupling, roller chain
coupling, diaphragm coupling, coupling column elastic sleeve pin
couplings, elastic dowel pin, elastic dowel pin coupling, pump
shaft coupling, etc..
The concepts of our company is live on quality and develop on
honor. The coupling has the advantage of high quality, low price,
complete product models.Our company will be your best choice, and
we look forward to cooperate with you.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2:Do you provide samples ? is it free or extra ?
A: : Yes, we could offer the sample but not for free.Actually we
have a very good price principle, when you make the bulk order then
cost of sample will be return to you.
Q3: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is
7-25 days if the goods are not in stock, it is according to
quantity.
Q4:How long is your warranty?
A: Our Warranty is 12 month.
Q5 :Do you have inspection procedures for coupling ?
A:100% self-inspection before packing
Q6. What’s your payment?
A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C
Q7:Can I have a visit to your factory before the order? A:
Sure,welcome to visit our factory.
