Super Short Telescopic Cardan Shaft Coupling Standard SWC-BH Type

SWC - BH Type Super Short Standard Telescopic Cardan Shaft Coupling

Product Description

SWP-B split bearing support cardan shaft is short type with length compensation.

SWP partition profile bearing the cross shaft universal coupling products: replacement of bearings for, SWP type cardan design bearing split shaft bolt, suitable for hoisting and conveying machinery and other heavy machinery, connecting two different axis transmission shaft, axis angle of A~F type not more than 10 degrees, the G type is not greater than 5 degrees.

Model	Tactical diameter	Nominal torque	Fatique	Axis rotation	Stretch	Lmin	Size									Rotary inertia		Weight
	D	Tn	torque	β	length		mm									kg.m2		kg
	mm	kN·m	Tf	(°)	LS
			kN·m		mm		D1	D2	D3	Lm	n-d	k	t		g	Lmin	Increase	Lmin	Increase
							js11	H7						b			100mm		100mm
														h9
SWC180BF	180	20	10	≤25	100	810	155	105	114	110	8-17	17	5	24	7	0.267	0.007	80	2.8
SWC200BF	200	32	16	≤15	110	860	170	120	127	135	8-17	19	5	28	8	0.505	0.013	109	3.6
SWC225BF	225	40	20	≤15	140	920	196	135	152	120	8-17	20	5	32	9	0.788	0.0234	138	4.9
SWC250BF	250	63	31.5	≤15	140	1035	218	150	168	140	8-19	25	6	40	12.5	1.445	0.0277	196	5.3
SWC285BF	285	90	45	≤15	140	1190	245	170	194	160	8-21	27	7	40	15	2.873	0.051	295	6.3
SWC315BF	315	125	63	≤15	140	1315	280	185	219	180	10-23	32	8	40	15	5.094	0.795	428	8
SWC350BF	350	180	90	≤15	150	1410	310	210	267	194	10-23	35	8	50	16	9.195	0.2219	932	15
SWC390BF	390	250	125	≤15	170	1590	345	235	267	215	10-25	40	8	70	18	16.62	0.2219	817	15
SWC440BF	440	355	180	≤15	190	1875	390	255	325	260	16-28	42	10	80	20	28.24	0.4744	1290	21.7
SWC490BF	490	500	250	≤15	190	1985	435	275	325	270	16-31	47	12	90	22.5	46.33	0.4744	1631	21.7
SWC550BF	550	710	355	≤15	240	2300	492	320	426	305	16-31	50	12	100	22.5	86.98	1.357	2567	34
SWC620BF	620	1000	500	≤15	240	2500	555	380	426	340	16-38	55	12	100	25	147.5	1.375	3267	34

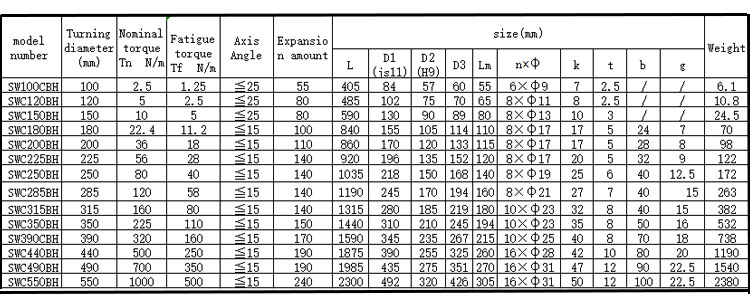

Structure & Parameter Of SWC - BH Standard Telescopic Welded Universal Joint Coupling

Super Short Telescopic Cardan Shaft Coupling Standard SWC-BH Type
Note: 1.Tf is the torque allowed under the alternating load according to the fatigue strength.
2.Lmin is the minimum length after shortening.
3.L is the installation length and is determined as required
Connection of SWC type cross shaft universal joint coupling and its parts
The SWC type universal joint coupling connects the flanges at both ends to other fittings through high strength bolts and nuts. The large size SWC universal joint coupling is connected to the other parts by the flange of the end tooth, high strength bolt and nut.
Super Short Telescopic Cardan Shaft Coupling Standard SWC-BH Type

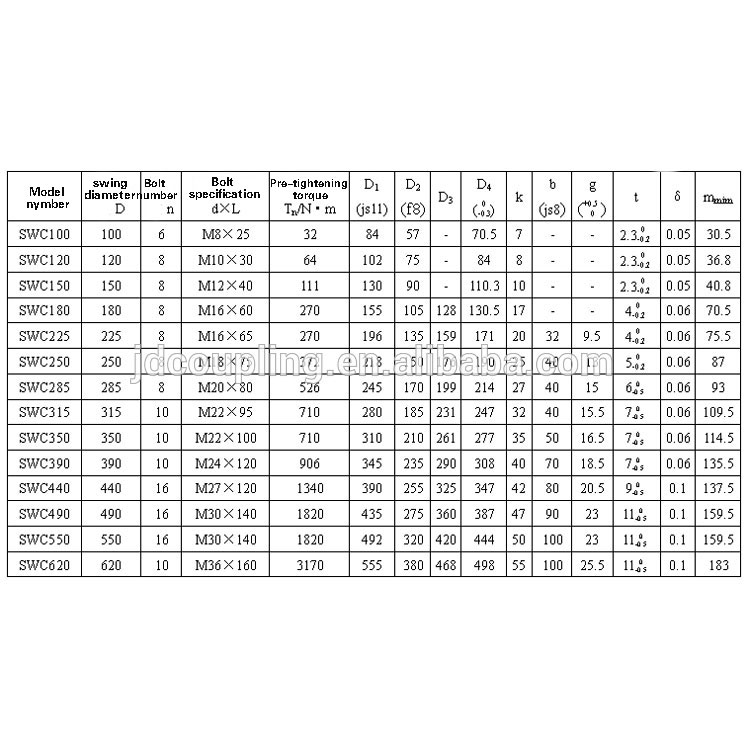

Connection size and bolt pretightening torque of SWC type universal joint coupling

End tooth profile

End tooth profile and bolt pretightening torque
