Cast Iron V Groove Belt Pulley European Standard for Mining machine SPA SPB SPC SPZ

V-pulleys according to DIN2211 – ISO 4183 (except C type ) suitable for standard application for use with the belt types SPZ – SPA – SPB – SPC (ISO 4184 DIN 7753/1), classical Z – A – B – C (ISO 4184 DIN 2215)

Type of V-Pulleys

V-Pulley pulleys PBT for mounting Taper bushing
Material: Cast Iron DIN 1691 GG20 – GG25

Our V-Pulleys can be used for application with a speed up to 35 m/s. the pulley dimensions are very accurate as they are manufactured by means of CNC or automatic lathes. For higher speed it is strongly recommended to use steel as material of construction

V-Belt Pulleys in this catalogue are all manufactured according to ISO 4183 and DIN 2211 norms.The material used for the construction of these pulleys is cast iron GG25 and after the machining all pulleys are being PH 0 S PH A TED. Each pulley is strictly DYNAMICA LLY BALANCED with high precision dynamical balancing machining tools.Unbalanced volume will corrected accurately. Each pulley can be used safely and reliably.

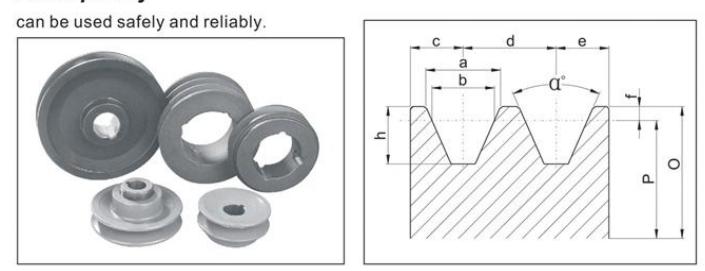

Pulley dimensions

Section	p		a	b	c	d	c	f	h
SPZ	<=80	34	9.7	8.5	8	12	8	2	II
	>80	38	9.9
SPA	<-118	34	12.7	II	10	15	10	2.75	13.75
	>118	38	12.9
SPB	<-190	34	16.1	14	12.5	19	12.5	3.5	17.5
	>190	38	16.4
SPC	<=315	34	21.9	!9	17	25.5	17	4.8	23.8
	>315	38	22.3

Belt dimensions

Shipping and Packaging

    Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.

    Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..

    The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
