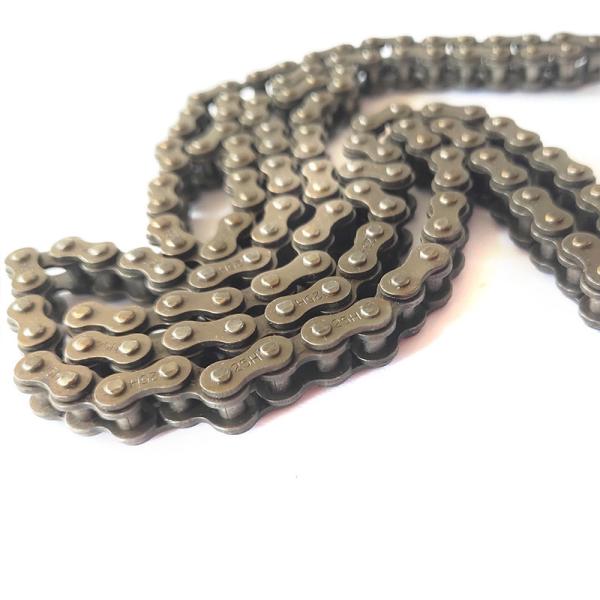

Carbon Steel And Stainless Steel Transmission Roller Conveyor Chain
Advantages
1. More than 10 years experiences in Engineer Class Chain for
Europe Market.
2. Cooperated with many famous brand in the world.
3. Imported machinery to assure high quality and stability of
chain.
4. Also produce special chain as per your drawing.
Specialised in:
1. Automobile industry
2. Steel & Metallurgical industry
3. Cement industry
4. Agricultural industry
5. Lumber industry
6. Palm oil industry
7. Sugar industry
8. Rubber industry
9. Heavy machinery industry.
Our chains types as below
1. Bicycle chains: 408,410,415
2. Motorcycle chains: 04C, 25H, 06C, T3, 270H,415H, 420, 420L, 425,
428, 428H, 520,
525, 530
3. ASA roller chains: 35, 40, 41, 50, 60, 60H, 80, 80H, 100, 120,
140, 160, 200, 240
(Catalog)
4. Chain (British standard): 05-B, 06-B, 08-B, 10-B, 12-B, 16-B,
20-B, 24-B, 28-B,
32-B, 40-B (Catalog)
5. Large pitch chain: 100, 100H, 120, 120H, 140, 140H, 160, 160H,
180, 200, 240
6. Extend-pitch precision roller chain: 208A, 208B, 210A, 210B,
212A, 212B, 216A,
216B, 220A,220B,224A,224B,228B,232B
7. Roller chains for beer buntline conveyor:
CK-70S,CK-100S,CK-100SA,CK-100SC,CK-133XA,
CK-140X,
CK-140XA,CK-150X,CK-150S,CK-154X,CK-155X,CK-155XA,CK-160X,CK-160XA,CK-160XB,CK-160XC,CK-165X,CK-165XA,
CK-169, CK-180X,CK-180XA,CK-200S,CW-102,CW-127
8. Implement roller chain for conveyors: 81X,
81XH,81XHH,CA550,CA555,CA620
9. Multi strand sizes available; up to 5 strand, for select size
standard attachment available
10. Chains from 04b~16b are with spring clip, other are riveted;
cottered design
is available for size 80 to 240
11. Stainless steel chain and nickel plated chains is available;
special design also available
(i.e., oven conveyor) and we can produce as per material your
requests, usually stainless steel chains material is SS304, if you
need SS316 or SS316L etc. it is available too
Product | Standard Double Pitch Roller chain |
Material | 40Mn steel,304 stainless steel, 316 stainless steel and 201
stainless steel. |
Types | Standard chains and special chains, such as A or B series chains,
roller chains, driving chains, conveyor chains, hoisting chains,
agricultural chains, sprockets, gears, wheels and so on. |
Series | A series(12.7-50.8mm pitches),B series (9.525-50.8mm pitches)and
the heavy series. |
Short pitch precision roller chain | Simplex Roller Chains&Bushing Chains: 04C-1,06C-1,085-1,08A-1,10A-1,12A-1,16A-1,20A-1,24A-1,28A-1,32A-1,36A-1,40A-1,48A-1
Duplex Roller Chains&Bushing Chains: 04C-2,06C-2,085-2,08A-2,10A-2,12A-2,16A-2,20A-2,24A-2,28A-2,32A-2,36A-2,40A-2,48A-2
Triplex Roller Chains&Bushing Chains: 04C-3,06C-2,085-3,08A-3,10A-3,12A-3,16A-3,20A-3,24A-3,28A-3,32A-3,36A-3,40A-3,48A-3 |
Chain link type | Standard links (without attachment) and non-standard links (with
attachment). A1: One-side,one hole cranked attachments.
A2: One-side,two holes cranked attachments.
K1: Both-side,one hole cranked attachments.
K2: Both-side,two hole cranked attachments.
D1: One-side,an extended pin on every outer link.
D3: One-side,two extended pin on every outer link. |
Our Products Advantage | 1. Every step from production order to the packing process has a
strict quality inspection.
2. We have standard roller chain with 1.5 meters (DIN. ANSI.);
Non-standard roller chain (customized acording to customer
drawings).
3. Export products with high quality and low price. |
