Product Description
Product features:
1. Three piece design
2. No lubrication required
3. Variable durometer
4. Urethane elements
5. No metal on metal
6. High torque capacities
7. Variable stroke materials
FEATURES AND BENEFITS:

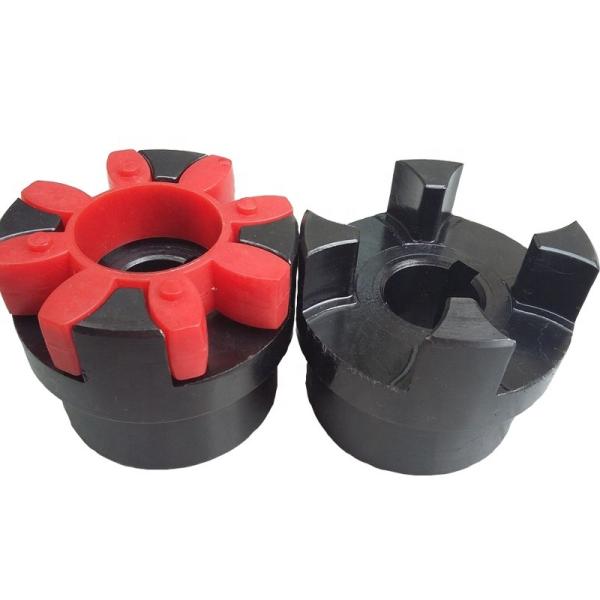

The Bent Jaw Couplings can be used in many applications and serve
as one
All-purpose clutch. The basic design of the curved jaw allows a
higher torque
Capacity in a compact design. The curved tooth has a larger contact
area that
It gives the high torque capacity, and reduces edge pressure. There
will be space
Axial, radial and angular shaft misalignment.
The hubs are made from a variety of materials such as: aluminum,
gray iron,
Steel and stainless steel. The spider elements are in different
durometers
Options in Urethane & Hytrel. The spinning can perform under normal
duty
Cycle conditions to heavy duty cycles, which include shock loading
and can minimize
Rotary vibrations in the system.
| Size | Type | Torque Tn (N.m) | Max Speed [n] (r/min) | Shaft hole DIA di dz | Hole Length L | D | D: | Dz | E | S | Moment of inertia (Kg-m2) | Weight (kg) |
| GS19 | XL1 | 34 | 19000 | 6-19-24 | 25 | 40 | 32 | 40 | 16 | 2 | 0.0008 | 0.328 |
| GS24 | XL2 | 120 | 14000 | 8-24-28 | 30 | 55 | 40 | 55 | 18 | 2 | 0.0003 | 0.66 |
| GS28 | XL3 | 320 | 11800 | 10-28-38 | 35 | 65 | 48 | 65 | 20 | 2.5 | 0.0007 | 1.16 |
| GS38 | XL4 | 650 | 9500 | 12-38-45 | 45 | 80 | 66 | 78 | 24 | 3 | 0.002 | 2.27 |
| GS42 | XL5 | 900 | 8000 | 14-42-55 | 50 | 98 | 75 | 94 | 26 | 3 | 0.005 | 3.57 |
| GS48 | XL6 | 1050 | 7100 | 1548-60 | 56 | 105 | 85 | 104 | 28 | 3.5 | 0.008 | 4.80 |
| GS55 | XL7 | 1250 | 6300 | 20-55-70 | 65 | 120 | 98 | 118 | 30 | 4 | 0.016 | 7.37 |
| GS65 | XL8 | 1280 | 5600 | 22~65-75 | 75 | 135 | 115 | 134 | 35 | 4.5 | 0.031 | 10.89 |
| GS75 | XL9 | 2930 | 4750 | 30-75-90 | 85 | 160 | 135 | 158 | 40 | 5 | 0.068 | 17.73 |
| GS90 | XL10 | 7200 | 3750 | 40-90-100 | 100 | 200 | 160 | 180 | 45 | 5.5 | 0.159 | 29.60 |
| GS100 | XL11 | 9900 | 3350 | 50-100-110 | 110 | 225 | 180 | 200 | 50 | 6 | 0.277 | 41 |
| GS110 | XL12 | 12000 | 3000 | 60-110-125 | 120 | 255 | 200 | 230 | 55 | 6.5 | 0.51 | 58.6 |
| XL13 | 15000 | 2650 | 60-125-145 | 140 | 290 | 230 | 265 | 60 | 7 | 1 | 88.4 |
| XL14 | 22000 | 2360 | 60-140-165 | 155 | 320 | 255 | 300 | 65 | 7.5 | 17 | 120.6 |
| XL15 | 30000 | 2000 | 80-160-190 | 175 | 370 | 290 | 345 | 75 | 9 | 3.35 | 179.1 |
| XL16 | 35000 | 1800 | 85-180-220 | 195 | 420 | 325 | 400 | 85 | 10.5 | 6.37 | 261.0 |
About Us
Nanpi county Jude transmission equipment manufacturing co., LTD. is
a enterprises that specialized in research and production coupling.
Also we can develop new products and bulk-production. With rich
experience, professional R&D team and various equipment in
coupling, it has superior conditions to satisfied your different
requirements.
Company main products are: all kinds of couplings for machinery
industry all over the word , such as radial elastic coupling, tyred
coupling, universal coupling, drum gear coupling, plum flower form
elastic coupling, rigid coupling oldham coupling, roller chain
coupling, diaphragm coupling, coupling column elastic sleeve pin
couplings, elastic dowel pin, elastic dowel pin coupling, pump
shaft coupling, etc..
The concepts of our company is live on quality and develop on
honor. The coupling has the advantage of high quality, low price,
complete product models.Our company will be your best choice, and
we look forward to cooperate with you.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2:Do you provide samples ? is it free or extra ?
A: : Yes, we could offer the sample but not for free.Actually we
have a very good price principle, when you make the bulk order then
cost of sample will be return to you.
Q3: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is
7-25 days if the goods are not in stock, it is according to
quantity.
Q4:How long is your warranty?
A: Our Warranty is 12 month.
Q5 :Do you have inspection procedures for coupling ?
A:100% self-inspection before packing
Q6. What’s your payment?
A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C
Q7:Can I have a visit to your factory before the order? A:
Sure,welcome to visit our factory.
