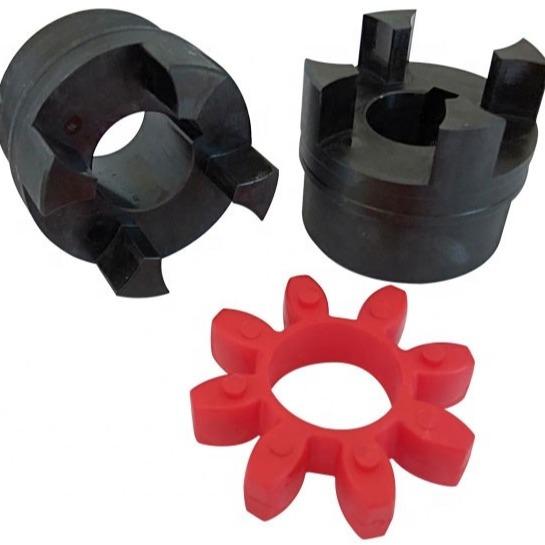

XL2 Rotex 24 Flexible Jaw Coupling Standard Rate torque 120Nm Speed 14000rpm

Rotex Jaw Flexible Coupling Rotex 24 From China Supplier Flexible Jaw Coupling XL2

Product Description

TThe Curved Jaw couplings can be utilized in many applications and serve as an all-purpose coupling. The basic design of the Curved Jaw allows for a higher torque capacity in a compact design. The curved tooth has a greater contact area which gives it the high torque capacity, and reduces edge pressure. It will accommodate axial, radial and angular shaft misalignment.

Coupling Material:	C45/40Cr/42CrMo
Color:	Any color available
Spider insert:	GR14-GR140
Spider Material:	PU
Size:	XL1-XL16/ROTEX 19-ROTEX 110
Packing:	Case , Wooden case, or as customer need.

1. Three Piece Design

2. No Lubrication Required

3. Variable Durometer

4. Urethane Elements

5. No Metal to Metal Contact 6.High Torque Capacities 7.Variable Hub Materials

Expression

The hubs are produced from Steel .The spider elements are available in various durometer options in Urethane & Hytrel. The spiders can perform under normal duty cycle conditions to heavy duty cycles which include shock loading and can minimize torsional vibrations in the system.

Size Information

Size Chart of This Design

Mini Size	XL1	ROTEX19	Largest Size	XL16	ROTEX110
D	40	40	D	420	255
Length	96	96	Length	475	295

Size	Type	Torque Tn (N.m)	Max Speed [n] (r/min)	Shaft hole DIA di dz	Hole Length L	D	D:	Dz	E	S	Moment of inertia (Kg-m2)	Weight (kg)
GS19	XL1	34	19000	6-19-24	25	40	32	40	16	2	0.0008	0.328
GS24	XL2	120	14000	8-24-28	30	55	40	55	18	2	0.0003	0.66
GS28	XL3	320	11800	10-28-38	35	65	48	65	20	2.5	0.0007	1.16
GS38	XL4	650	9500	12-38-45	45	80	66	78	24	3	0.002	2.27
GS42	XL5	900	8000	14-42-55	50	98	75	94	26	3	0.005	3.57
GS48	XL6	1050	7100	1548-60	56	105	85	104	28	3.5	0.008	4.80
GS55	XL7	1250	6300	20-55-70	65	120	98	118	30	4	0.016	7.37
GS65	XL8	1280	5600	22~65-75	75	135	115	134	35	4.5	0.031	10.89
GS75	XL9	2930	4750	30-75-90	85	160	135	158	40	5	0.068	17.73
GS90	XL10	7200	3750	40-90-100	100	200	160	180	45	5.5	0.159	29.60
GS100	XL11	9900	3350	50-100-110	110	225	180	200	50	6	0.277	41
GS110	XL12	12000	3000	60-110-125	120	255	200	230	55	6.5	0.51	58.6
	XL13	15000	2650	60-125-145	140	290	230	265	60	7	1	88.4
	XL14	22000	2360	60-140-165	155	320	255	300	65	7.5	17	120.6
	XL15	30000	2000	80-160-190	175	370	290	345	75	9	3.35	179.1
	XL16	35000	1800	85-180-220	195	420	325	400	85	10.5	6.37	261.0
