KC 4016 5016 5018 6018 Coupling Roller Chain Flexible Coupling

4016/5016/5018/6018/ Roller Chain Shaft Coupling

The roller chain coupling is a flexible coupling of amazingly simple construction. It consists of a combination of one coupling chain and a pair of coupling sprockets. Flexible and strong, the roller chain coupling is suitable for a wide range of coupling applications.
Roller chain coupling can used for the environment which with high temperature, wet and dirty conditions. It is not suitable for the occasion which is in high speed and with strong impact load. Roller chain coupling should working with excellent lubrication and protection cover conditions.
The common chain coupling includes double roller chain coupling, single row roller chain coupling, tooth shape chain coupling, nylon chain coupling. Its scale is compact and its weight is light. But roller chain coupling don't have high requirement to installation precision.
Generally speaking, it is usually in long service life. Production line equipment for various kinds of frozen food and dehydrated vegetables should transport by stainless steel chain. Roller chains are widely applied to household, industrial and agricultural machinery, includes conveyor, drawing machine, printing machine, automobile, motorcycle and bicycle.

Main Features
1.Simple structure,easy assembly and disassembly.
2.Light weight,and long service life.
3.Have a certain ability to compensate for installation less precision.
4.Suitable for high temperature,wet and dusty industrial environment.
5.Can not for high speed,violent vibration.

Product name	Internal gear roller chain coupling
Model	KC chain coupling
Inner diameter	10-150mm
Outer diameter	75-355mm
Thickness	80-261mm
Weight	1.1-74.1kg
Torque capacity	40-25000N.m
Package	Carton/wooden case/customer’s request
Payment terms	TT. L/C, D/A,D/P,Western Union,Paypal
Application	Textile machine, fans, ventilators, printing machine

Product Description

KC 4016 5016 5018 6018 Coupling Roller Chain Flexible Coupling

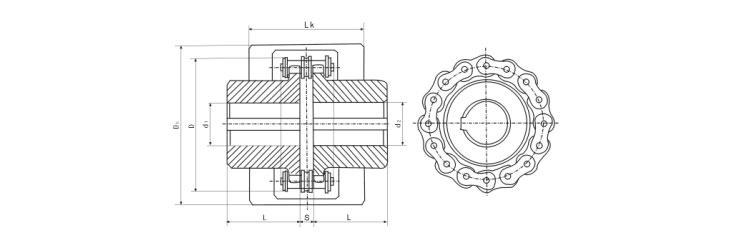

Size	Torque N.m	Speed rpm	Basic size mm							Inertia kg m2	Weight kg
Size	Torque N.m	Speed rpm	dmax	D	D1	S	L	Dk	Lk	Inertia kg m2	Weight kg
KC3812	190	5000	16	45	25	4.9	30	59	61	5.6x10-5	0.6
KC4012	249	4800	22	62	35		36	75		2.47X10-4	1.0
KC4014	329	4800	28	69	43	7.4	36	84	75	4.53X10-4	1.32
KC4016	419	4800	32	77	50		40	92		7.90X10-4	1.9
KC5014	620	4800	35	86	53			101		1.37X10-3	2.7
KC5016	761	3600	40	96	60	9.7	45	110	85	2.18X10-3	3.4
KC5018	989	3600	45	106	70			122		3.53x10-3	4.4
KC6018	1810	3300	56	127	85			142		9.33x10-3	7.8
KC6020	2210	2500	60	139	100	11.5	56	158	105	2.10X10-2	10.4
KC6022	2610	2500	71	152	110			168		2.16X10-2	12.4
KC8018	3920	2000	80	170	115		63	186		3.63 X10-2	15.2
KC8020	4800	2000	90	185	121	15.2	65	210	130	7.20x10-2	20.2
KC8022	5640	1800	100	203	140		71	220		8.00X10-2	26.1
KC10020	8400	1800	110	233	160	18.8	80	250	148	1.61 X10-1	39.1
KC12018	12700	1500	125	256	170		90	307	191	2.68 X10-1	52.6
KC 12022	18300	1250	140	304	210	22.7	100	357	191	5.93 X10-1	79.4
KC16018	26400	1100	160	341	224	30.1	112	425	250	1.05	110.7
KC 16022	38100	1000	200	405	280	30.1	140	475	250	2.50	191.8
KC20018	54100	800	205	426	294	37.5	241	496	300	4.60	323.4
KC 20022	77800	600	260	507	374	37.5	241	578	300	1.07X10	507.8
KC24022	137000	600	310	608	420	45.1	353	650	350	2.7X10	958.5
KC 24026	186000	500	380	705	520	45.1	353	745	350	5.70X10	1403.6
KC 32022	261000		430	806	570	60.1	400			1 .08x102	1970
KC 40020	494000	50	470	932	640					2.92X1 02	3149
KC 40024	602000	50	590	1093	800	75.6	512			4.95X102	4724
KC 40028	717000		700	1255	960					9.47X102	6620
