Product Description

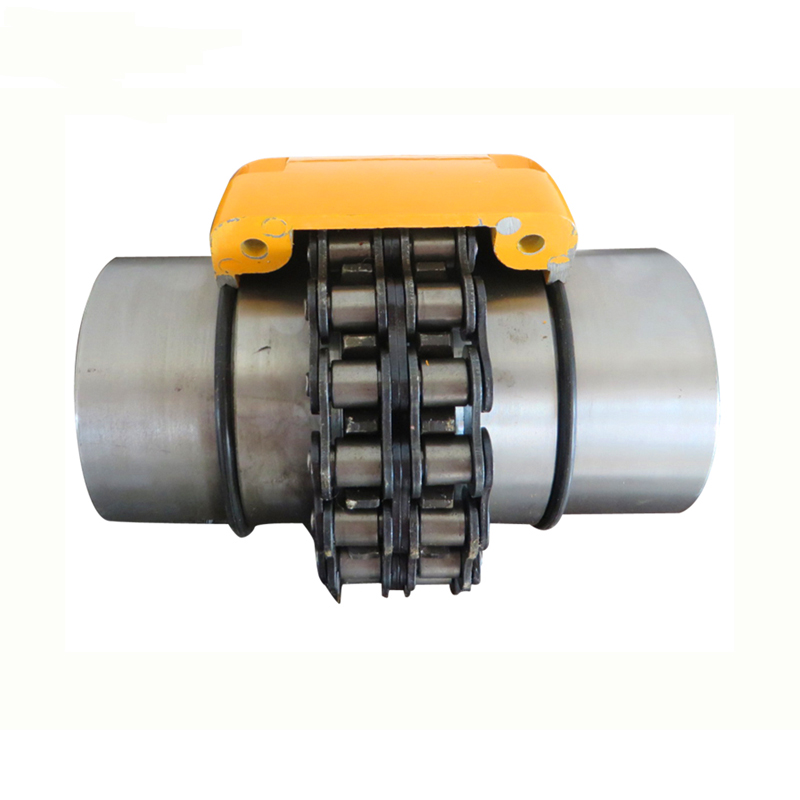

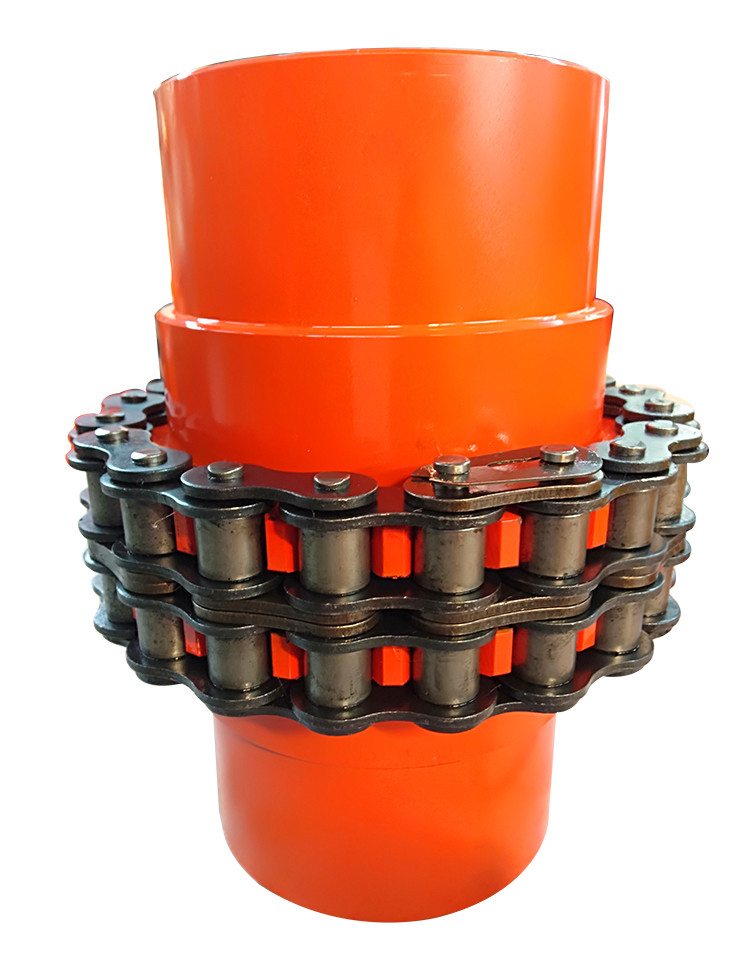

Chain couplings are suitable for the elastic transmission of
rotating components over a wider speed range.
the couplings consist of two pre-drilled sprockets with the same
number of teeth and a double roller chain DIN8171 with a straight
spring lock the simple opening of these couplings allows quick
assembly and disassembly by simply loosening the connecting chain
all in one, the product offers an optimal price / ratio for
numerous applications.
on request and depending on the application, the chain couplings
can be supplied with hardened teeth as well as with a bore with an
adjusting screw cap per wheel
Model | Shaft diameter | Pilot | A | d | O | L | I | S | B | C | Max. angle ( °) | bolt | Max. Torque (Nm) | Max. speed (rpm) | Moment of inertia (kg.cm2) | Grease amount (kg) | Weight (kg) |
KC-3012 | 12-16 | 12 | 69 | 25 | 45 | 64.8 | 29.8 | 5.2 | 63 | 10.2 | 1O | 6M | 190 | 5000 | 3.7 | 0.1 | 0.4 |
KC-4012 | 12-22 | 12 | 77 | 33 | 62 | 79.4 | 36 | 7.4 | 72 | 14.4 | 6M | 249 | 4800 | 5.5 | 0.1 | 0.8 |
KC-4014 | 12-28 | 12 | 84 | 43 | 69 | 79.4 | 36 | 7.4 | 75 | 14.4 | 6M | 329 | 4800 | 9.7 | 0.13 | 1.1 |
KC-4016 | 14-32 | 14 | 92 | 48 | 77 | 87.4 | 40 | 7.4 | 75 | 14.4 | 6M | 419 | 4800 | 14.4 | 0.17 | 1.4 |
KC-5014 | 15-35 | 14 | 101 | 53 | 86 | 99.7 | 45 | 9.7 | 85 | 18.1 | 8M | 620 | 3600 | 28 | 0.22 | 2.2 |
KC-5016 | 16-40 | 16 | 111 | 60 | 93 | 99.7 | 45 | 9.7 | 85 | 18.1 | 8M | 791 | 3600 | 37 | 0.26 | 2.7 |
KC-5018 | 16-45 | 16 | 122 | 70 | 106 | 99.7 | 45 | 9.7 | 85 | 18.1 | 8M | 979 | 3000 | 56.3 | 0.36 | 3.8 |
KC-6018 | 20-56 | 20 | 142 | 85 | 127 | 123.5 | 56 | 11.5 | 105 | 22.8 | 10M | 1810 | 2500 | 137.3 | 0.5 | 6.2 |
KC-6020 | 20-60 | 20 | 158 | 98 | 139 | 123.5 | 56 | 11.5 | 105 | 22.8 | 10M | 2210 | 2500 | 210.2 | 0.6 | 7.8 |
KC-6022 | 20-71 | 20 | 168 | 110 | 151 | 123.5 | 56 | 11.5 | 117 | 22.8 | 10M | 2610 | 2500 | 295 | 0.7 | 10.4 |
KC-8018 | 20-80 | 20 | 190 | 110 | 169 | 141.2 | 63 | 15.2 | 129 | 29.3 | 12M | 3920 | 2000 | 520 | 0.9 | 12.7 |
KC-8020 | 20-90 | 20 | 210 | 121 | 185 | 145.2 | 65 | 15.2 | 137 | 29.3 | 12M | 4800 | 2000 | 812.4 | 1.1 | 16 |
KC-8022 | 20-100 | 20 | 226 | 140 | 202 | 157.2 | 71 | 15.2 | 137 | 29.3 | 12M | 5640 | 1800 | 1110 | 1.2 | 20.2 |
KC-10020 | 25-110 | 25 | 281 | 160 | 233 | 178.8 | 80 | 18.8 | 153 | 35.8 | 12M | 8400 | 1800 | 2440 | 1.8 | 33 |
KC-12018 | 35-125 | 35 | 307 | 170 | 256 | 202.7 | 90 | 22.7 | 181 | 45.4 | 12M | 12700 | 1500 | 3940 | 3.2 | 47 |
KC-12022 | 35-140 | 35 | 357 | 210 | 304 | 222.7 | 100 | 22.7 | 181 | 45.5 | 12M | 18300 | 1250 | 7810 | 4.4 | 72 |
KC-16018 | 63-160 | 35 | 375 | 228 | 340 | 254.1 | 112 | 30.1 | 240 | 58.5 | 16M | 26400 | 1100 | 14530 | 7.2 | 108 |
KC-16022 | 80-200 | 70 | 440 | 279 | 405 | 310.1 | 140 | 30.1 | 245 | 58.5 | 16M | 37100 | 1000 | 32220 | 9.9 | 187 |
KC-20018 | 82-205 | 75 | 465 | 289 | 425 | 437.5 | 200 | 37.5 | 285 | 71.6 | 20M | 54100 | 800 | 50980 | 11.8 | 286 |
KC-20022 | 100-255 | 90 | 545 | 263 | 506 | 477.5 | 220 | 37.5 | 300 | 71.6 | 20M | 77800 | 600 | 111100 | 15.8 | 440 |
KC-24022 | 120-310 | 110 | 650 | 448 | 607 | 650 | 302.5 | 45 | 340 | 87.8 | 20M | 137000 | 600 | 310000 | 21.9 | 869 |
KC-24026 | 150-360 | 140 | 745 | 526 | 704 | 700 | 327.5 | 45 | 350 | 87.8 | 20M | 186000 | 500 | 598500 | 28.1 | 1260 |
