Product Description
Introduction Of DL Flexible Multi Angle Rubber Tyre Coupling

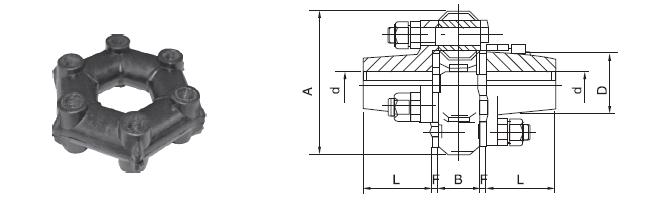

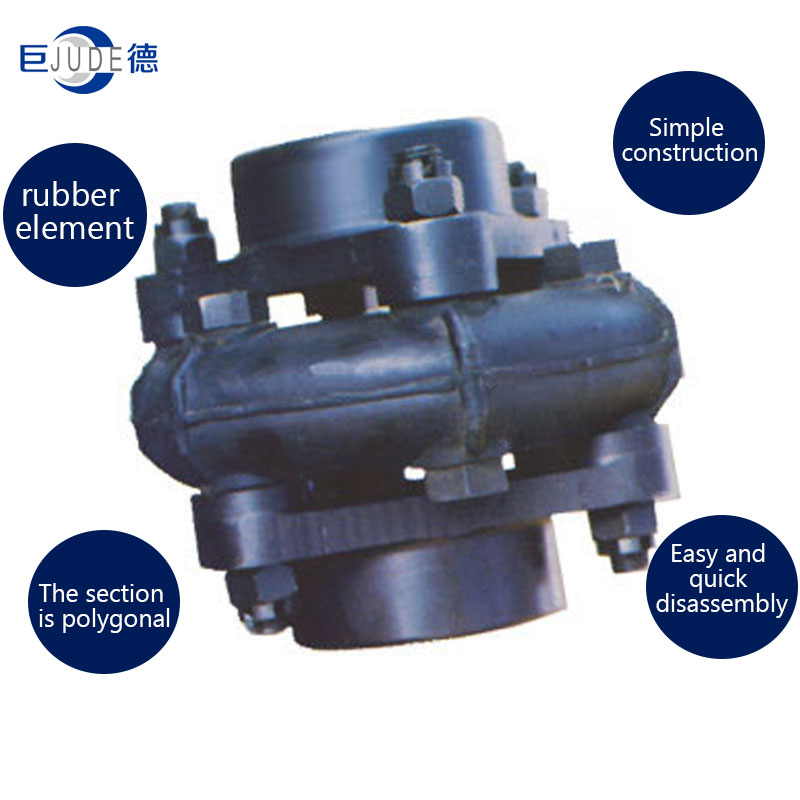

DL Flexible Multi Angle Rubber Tyre Coupling is a cross-section of
6 circular angle (or angle 8) elastic piece shaped casing, bonded
together with rubber vulcanization after in each block, through
casing 6 (or 8) bolt, staggered with the main, driven end half
coupling flange connection, polygonal rubber coupling has the
advantages of simple structure, convenient installation, no need of
lubrication, with torsional vibration and impact load relaxation of
drive shaft, drive shaft and can prevent resonance performance
compensation of two axis relative offset, suitable for medium
torque 50-8000N. M's light industry, construction machinery, mining
machinery and other industries are suitable for working environment
with dust and moisture. The working temperature is -30 -60 C, which
is used for connection of vibrating screens. The effect is
remarkable.
| Model No. | Rated | Max | Angular | Shaft hole/Bore diameter | Bore length | D | A | L2 | L3 | Moment of | Mass |
| torque | speed | misalignment | d1,d2,dz | inertia | m/kg |
| Tn/ | [n]/ | /(°) | | Y | J1,Z1 | I/ | |
| N·m | r·min-1 | | | L | L1 | kg·m2 | |
| DL1 | 50 | 5000 | 5 | 12,14 | 32 | — | 96 | 42 | 75 | 28 | 0.001 | 1.9 |
| 16,18,19 | 42 | 30 |
| 20,22,24 | 52 | 38 |
| 25 | 62 | 44 |
| DL2 | 80 | 4000 | 16,18,19 | 42 | 30 | 118 | 55 | 85 | 32 | 0.0031 | 3.9 |
| 20,22,24 | 52 | 38 |
| 25,28 | 62 | 44 |
| 30,32 | 82 | 60 |
| DL3 | 160 | 3150 | 4 | 20,22,24 | 52 | 38 | 142 | 68 | 105 | 46 | 0.0089 | 8 |
| 25,28 | 62 | 44 |
| 30,32,35,38 | 82 | 60 |
| 40 | 112 | 84 |
| DL4 | 280 | 2500 | 22,24 | 52 | 38 | 182 | 92 | 120 | 52 | 0.026 | 14.2 |
| 25,28 | 62 | 44 |
| 30,32,35,38 | 82 | 60 |
| 40,42,45,48,50,55 | 112 | 84 |
| DL5 | 560 | 2000 | 25,28 | 62 | 44 | 235 | 122 | 140 | 62 | 0.095 | 31.4 |
| 30,32,35,38 | 82 | 60 |
| 40,42,45,48,50,55,56 | 112 | 84 |
| 60,63,65,70,71 | 142 | 107 |
| DL6 | 800 | 1800 | 28 | 62 | 44 | 258 | 128 | 150 | 68 | 0.132 | 35.6 |
| 30,32,35,38 | 82 | 60 |
| 40,42,45,48,50,55,56 | 112 | 84 |
| 60,63,65,70,71 | 142 | 107 |
| DL7 | 1250 | 1600 | 35,38 | 82 | 60 | 282 | 148 | 185 | 78 | 0.287 | 58.4 |
| 40,42,45,48,50,55,56 | 112 | 84 |
| 60,63,65,70,71,75 | 142 | 107 |
| 80,85 | 172 | 132 |
| DL8 | 2500 | 1250 | 40,42,45,48,50,55,56 | 112 | 84 | 372 | 190 | 230 | 100 | 0.952 | 117.1 |
| 60,63,65,70,71,75 | 142 | 107 |
| 80,85,90,95 | 172 | 132 |
| 100,110 | 212 | 167 |
| DL9 | 3550 | 1120 | 45,48,50,55,56 | 112 | 84 | 420 | 220 | 270 | 115 | 1.981 | 171.8 |
| 60,63,65,70,71,75 | 142 | 107 |
| 80,85,90,95 | 172 | 132 |
| 100,110,120,125,130 | 212 | 167 |
| DL10 | 5600 | 1000 | 50,55,56 | 112 | 84 | 465 | 242 | 295 | 130 | 3.606 | 252.9 |
| 60,63,65,70,71,75 | 142 | 107 |
| 80,85,90,95 | 172 | 132 |
| 100,110,120,125 | 212 | 167 |
| 130,140,150 | 252 | 202 |
| DL11 | 8000 | 900 | 60,63,65,70,71,75 | 142 | 107 | 520 | 260 | 365 | 150 | 7.48 | 386.7 |
| 80,85,90,95 | 172 | 132 |
| 100,110,120,125 | 212 | 167 |
| 130,140,150 | 252 | 202 |
| 160 | 302 | 242 |
About Us
Nanpi county Jude transmission equipment manufacturing co., LTD. is
a enterprises that specialized in research and production coupling.
Also we can develop new products and bulk-production. With rich
experience, professional R&D team and various equipment in
coupling, it has superior conditions to satisfied your different
requirements.
Company main products are: all kinds of couplings for machinery
industry all over the word , such as radial elastic coupling, tyred
coupling, universal coupling, drum gear coupling, plum flower form
elastic coupling, rigid coupling oldham coupling, roller chain
coupling, diaphragm coupling, coupling column elastic sleeve pin
couplings, elastic dowel pin, elastic dowel pin coupling, pump
shaft coupling, etc..
The concepts of our company is live on quality and develop on
honor. The coupling has the advantage of high quality, low price,
complete product models.Our company will be your best choice, and
we look forward to cooperate with you.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2:Do you provide samples ? is it free or extra ?
A: : Yes, we could offer the sample but not for free.Actually we
have a very good price principle, when you make the bulk order then
cost of sample will be return to you.
Q3: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is
7-25 days if the goods are not in stock, it is according to
quantity.
Q4:How long is your warranty?
A: Our Warranty is 12 month.
Q5 :Do you have inspection procedures for coupling ?
A:100% self-inspection before packing
Q6. What’s your payment?
A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C
Q7:Can I have a visit to your factory before the order? A:
Sure,welcome to visit our factory.
