Hub F140 Tyre Flex Coupling Shock Absorption Customized With Flange

    Buy cheap Hub F140 Tyre Flex Coupling Shock Absorption Customized With Flange from wholesalers

    Buy cheap Hub F140 Tyre Flex Coupling Shock Absorption Customized With Flange from wholesalers
    • Buy cheap Hub F140 Tyre Flex Coupling Shock Absorption Customized With Flange from wholesalers
    • Buy cheap Hub F140 Tyre Flex Coupling Shock Absorption Customized With Flange from wholesalers

    Hub F140 Tyre Flex Coupling Shock Absorption Customized With Flange

    Ask Lasest Price
    Brand Name : jude
    Supply Ability : 2000 Set/Sets per Month
    Price :
    Certification : CE、ISO
    Model Number : F140
    • Product Details
    • Company Profile

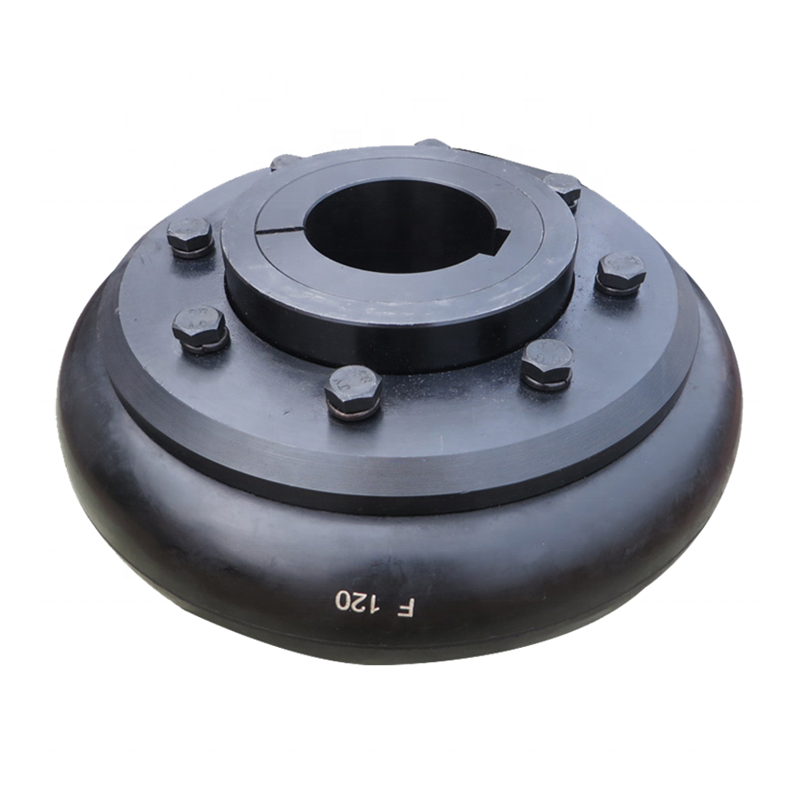

    Hub F140 Tyre Flex Coupling Shock Absorption Customized With Flange

    F 140 Flexible Shaft Tyre Couplings With Flange For Hub


    Product Description

    Product Name: type tire coupling

    Surface treatment: phosphating, blackening and spraying

    Coupling type: tire coupling

    Material: Rubber

    Scope of application: metallurgy, steel rolling, mining, chemical industry, shipbuilding, pumps, fans, etc.

    Features: the tire coupling has good shock absorption and buffering effect and the performance of compensating the deviation between axles. It is widely used in the occasions of impact vibration, variable forward and reverse rotation and frequent starting.

    advantage:

    1. High elastic material, silent work.

    The ability of compensating relative displacement of two shafts is large, and the transmission torque is 10-2500n. M
    2. Selected 45 steel, reliable quality.
    The coupling theme is made of high quality 45 # steel
    3. Deburring and smooth surface.
    4. Complete models, a large number of stock, complete specifications.
    Support non-standard customization. Please contact customer service. Various styles and complete types. Welcome to order!
    5. Good damping. No lubrication, working temperature is 20-80 ℃

    Hub F140 Tyre Flex Coupling Shock Absorption Customized With FlangeHub F140 Tyre Flex Coupling Shock Absorption Customized With Flange

    Hub F140 Tyre Flex Coupling Shock Absorption Customized With Flange

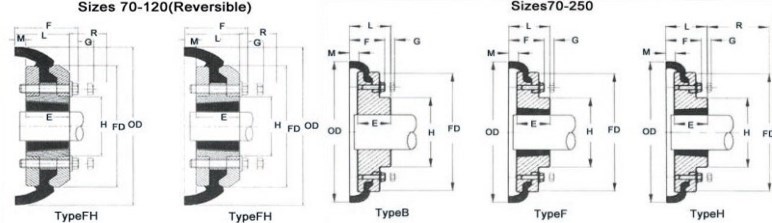

    SizeTypeBush NoLEACDFSWeight
    SteelSteel
    mminch
    F40B——301 1/8"332210482——————11
    F1008251"
    H1008251"
    F50B——381 1/2"453213310079————12.5
    F1210321 1/4"3825
    H1210321 1/4"
    F60B——451 3/4"553816512570————16.5
    F1610421 5/8"4225103
    H1610421 5/8"
    F70B——502"473518714280501311.5
    F2012502"4432
    H1610421 5/8"3725
    F80B——602 3/8"554221116598541612.5
    F2517602 1/2"5845
    H2012502"4532
    F90B——753"63.549235188108601613.5
    F2517602 1/2"58.545
    H2517602 1/2"
    F100B——803 1/8"70.556254216120621613.5
    F3020753"64.551125
    H2517602 1/2"58.545113
    F110B——903 1/2"75.563279233128621612.5
    F3020753"63.551134
    H3020753"
    F120B——1004"84.570314264140671614.5
    F35251004"79.565144
    H3020753"65.551
    F140B——1255"110.594359311178731716
    F35251004"81.565
    H35251004"
    F160B——1405 1/2"117120402345187781915
    F40301154 1/2"9277197
    H40301154 1/2"
    F180B——1506"137114470394205941923
    F45351255"11289
    H45351255"
    F200B——1506"1381145084292051031924
    F45351255"11389
    H45351255"
    F220B——1606 1/4"154.51275624742231182027.5
    F50401255"129.5102
    H50401255"
    F250B——1907 1/2"161.51326285322541252029.5

    Hub F140 Tyre Flex Coupling Shock Absorption Customized With Flange

    Packaging & Shipping

    Hub F140 Tyre Flex Coupling Shock Absorption Customized With Flange

    About Us

    Hub F140 Tyre Flex Coupling Shock Absorption Customized With Flange

    Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.

    Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..

    The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.

    Hub F140 Tyre Flex Coupling Shock Absorption Customized With Flange

    FAQ

    Q1: Are you trading company or manufacturer ?

    A: We are factory.


    Q2:Do you provide samples ? is it free or extra ?

    A: : Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.


    Q3: How long is your delivery time?

    A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.


    Q4:How long is your warranty?

    A: Our Warranty is 12 month.


    Q5 :Do you have inspection procedures for coupling ?

    A:100% self-inspection before packing


    Q6. What’s your payment?

    A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.
