Product Description

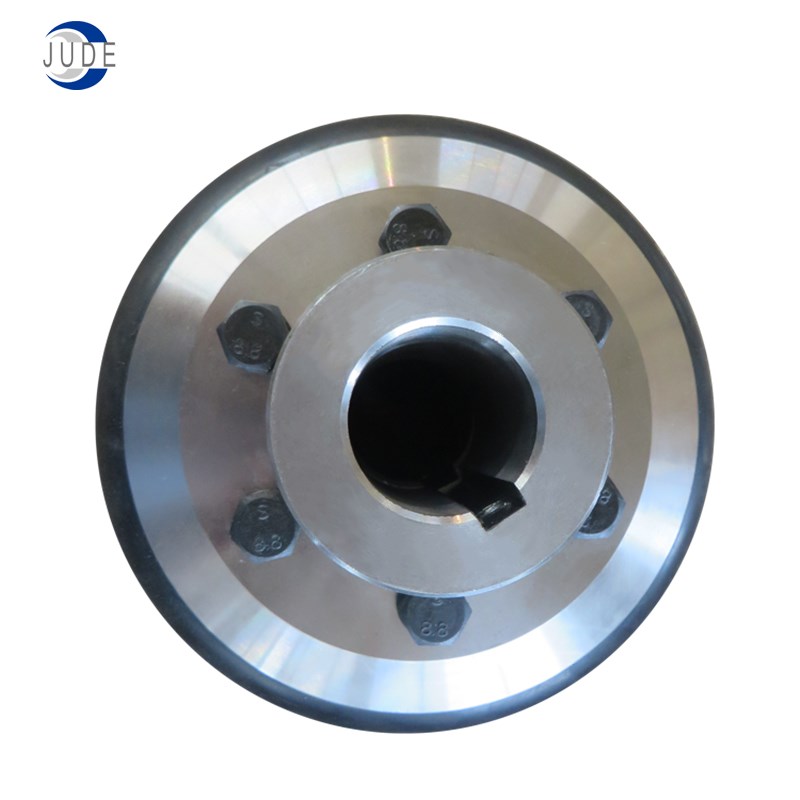

Introduction Of LLA Flexible Tyre Coupling
The LLA Flexible Tyre Coupli2ng is a kind of high elastic coupling,
with good damping buffer and superior offset compensation
performance.
The working temperature of 20~80 degrees Celsius, transmitting
torque 10~20000NM, suitable for damp, dust, shock, vibration,
reversing the changeable and frequent starting working conditions,
and convenient assembly and disassembly, no lubrication, durable
and reliable. Non standard couplings are made in accordance with
special needs. In overloading work and half coupling, there will be
no malignant accidents.
 |
| Size | Torque Tn N.m | Speed(n) r/min | Bore d1,d2 | Length | Detailed size mm | Bolt amount | inertia kg.m2 | Weight kg |
| D | D1 | S |
| LLA1 | 10 | 5000 | 6-11 | 16-25 | 60 | 20 | 4 | 12-M4*10 | 0.0004 | 0.4 |
| LLA2 | 20 | 5000 | 8-19 | 14-42 | 100 | 36 | 8 | 12-M6*20 | 0.005 | 1.4 |
| LLA3 | 80 | 4000 | 18-28 | 30-62 | 135 | 48 | 12 | 12-M8*25 | 0.022 | 3.4 |
| LLA4 | 160 | 3150 | 25-38 | 44-82 | 180 | 64 | 18 | 12-M10*30 | 0.071 | 7.4 |
| LLA5 | 315 | 2800 | 32-50 | 60-112 | 210 | 80 | 18 | 16-M10*40 | 0.154 | 13.4 |
| LLA6 | 630 | 2500 | 40-56 | 84-112 | 265 | 100 | 24 | 16-M12*40 | 0.46 | 22.6 |
| LLA7 | 1250 | 2000 | 48-75 | 84-142 | 310 | 120 | 28 | 16-M16*50 | 1.86 | 35 |
| LLA8 | 2500 | 1600 | 60-95 | 107-172 | 400 | 150 | 38 | 16-M20*60 | 3.57 | 75 |
| LLA9 | 5000 | 1250 | 80-125 | 132-212 | 450 | 190 | 42 | 20-M20*70 | 6.47 | 115 |
| LLA10 | 10000 | 1000 | 100-150 | 167-252 | 550 | 230 | 52 | 24-M24*80 | 17.35 | 190 |
| LLA11 | 20000 | 800 | 138-180 | 202-302 | 700 | 280 | 70 | 32-M30*90 | 54.1 | 380 |
0
About Us
Nanpi county Jude transmission equipment manufacturing co., LTD. is
a enterprises that specialized in research and production coupling.
Also we can develop new products and bulk-production. With rich
experience, professional R&D team and various equipment in
coupling, it has superior conditions to satisfied your different
requirements.
Company main products are: all kinds of couplings for machinery
industry all over the word , such as radial elastic coupling, tyred
coupling, universal coupling, drum gear coupling, plum flower form
elastic coupling, rigid coupling oldham coupling, roller chain
coupling, diaphragm coupling, coupling column elastic sleeve pin
couplings, elastic dowel pin, elastic dowel pin coupling, pump
shaft coupling, etc..
The concepts of our company is live on quality and develop on
honor. The coupling has the advantage of high quality, low price,
complete product models.Our company will be your best choice, and
we look forward to cooperate with you.
