Flexible FCL couplings:
FCL Flexible Couplings is widely used, owing to its advantages:
compact designing, easy installation, convenient maintenance, small
size and light weight. As long as the relative displacement between
shafts is kept within the specified tolerance, B couplings will
operate the best function and have a longer working life.
Our FCL Couplings(Flexible Pin Couplings) are Standard, but also
customized.

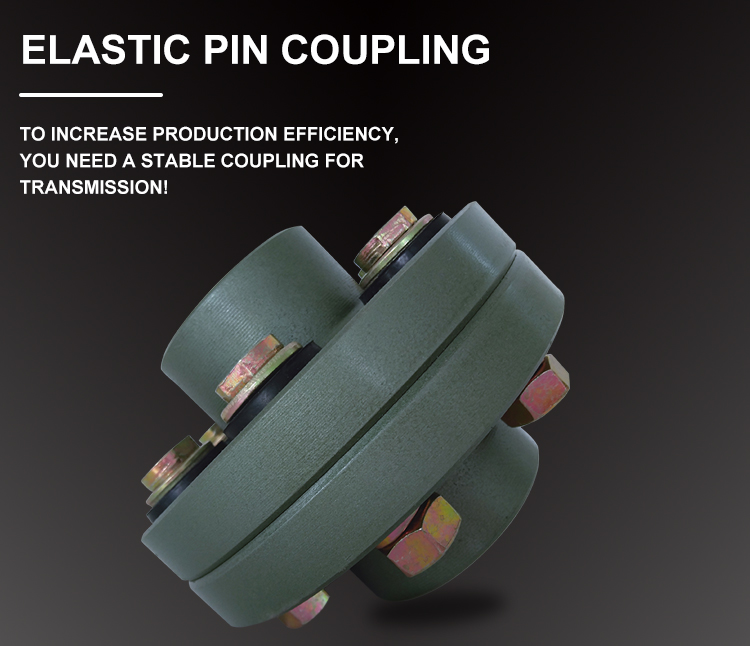

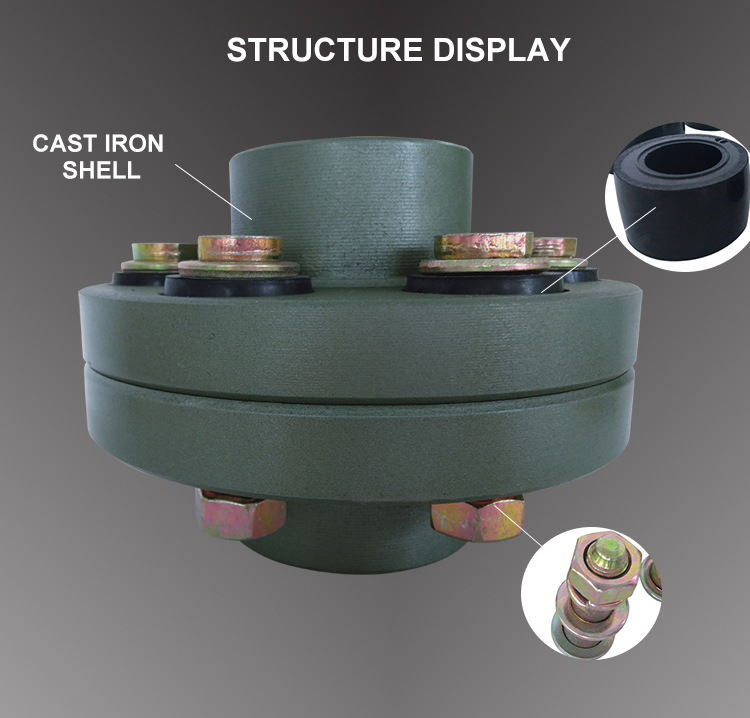

The material for the FCL Coupling(Flexible Pin Coupling) is
normally C45 Steel, Alloy steel, also cast iron etc.
The surface treatment: black oxide/black finished, phosphate,
powder coated etc.
Applied in medium and minor power transmission systems driven by
motors, such as speed reducers, hoists, compressors, conveyers,
spinning and weaving machines and ball mills.
Based on the same quality,our products have the below advantages:
1. More competitive prices,
2. Shorter delivery date: 35 days.
3. We are the professional manufacturer in the field of Power
Trans.Parts,specially for Timing Pulleys.
4. Produce standard and non-standard
5. Strict QC Management:ISO9001:2008,our engineer,Mr.Wang has
specialized in the prodcution for over 20 years

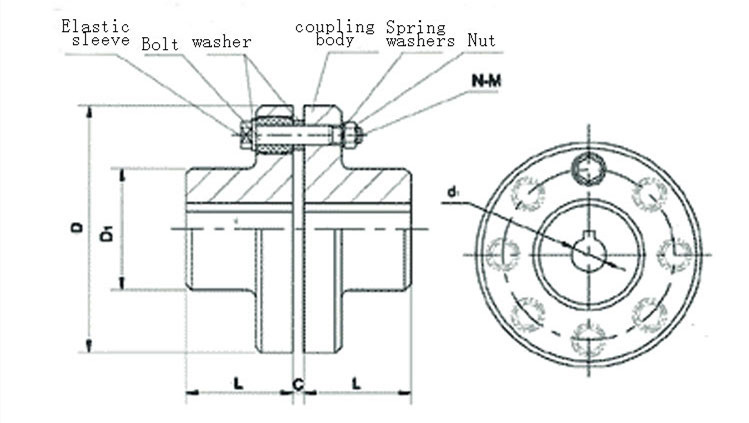

| Type | Max Torque | Max Speed | D | D1 | D2 | L | C | n-M | Weight |
| N.m | t/min | kg |
| FCL90 | 4 | 4000 | 90 | 36 | 11 | 28 | 3 | 4-M8*50 | 1.8 |
| FCL100 | 10 | 4000 | 100 | 40 | 11 | 35.5 | 3 | 4-M10*56 | 2.3 |
| FCL112 | 16 | 4000 | 112 | 46 | 13 | 40 | 3 | 4-M10*56 | 3 |
| FCL125 | 25 | 4000 | 125 | 50 | 13 | 45 | 3 | 4-M12*64 | 4 |
| FCL140 | 50 | 4000 | 140 | 65 | 13 | 50 | 3 | 6-M12*64 | 5.5 |
| FCL160 | 110 | 4000 | 160 | 80 | 15 | 56 | 3 | 8-M12*64 | 8 |
| FCL180 | 157 | 3500 | 180 | 90 | 15 | 63 | 3 | 8-M12*64 | 10.5 |
| FCL200 | 245 | 3200 | 200 | 100 | 21 | 71 | 4 | 8-M20*85 | 16.2 |
| FCL224 | 392 | 2850 | 224 | 115 | 21 | 80 | 4 | 8-M20*85 | 22 |
| FCL250 | 618 | 2550 | 250 | 135 | 25 | 90 | 4 | 8-M24*100 | 32 |
| FCL280 | 980 | 2300 | 280 | 140 | 34 | 100 | 4 | 8-M24*116 | 44 |
| FCL315 | 1568 | 2050 | 315 | 160 | 41 | 112 | 4 | 10-M24*116 | 58 |
| FCL355 | 2450 | 1800 | 355 | 180 | 60 | 125 | 5 | 8-M30*150 | 90 |
| FCL400 | 3920 | 1600 | 400 | 200 | 60 | 125 | 5 | 10-M30*150 | 113 |
| FCL450 | 6174 | 1400 | 450 | 224 | 65 | 140 | 5 | 12-M30*150 | 145 |
| FCL560 | 9800 | 1150 | 560 | 250 | 85 | 160 | 5 | 14-M30*150 | 229 |
| FCL630 | 15680 | 1000 | 630 | 280 | 95 | 180 | 5 | 18-M30*150 | 296 |
About Us
Nanpi county Jude transmission equipment manufacturing co., LTD. is
a enterprises that specialized in research and production coupling.
Also we can develop new products and bulk-production. With rich
experience, professional R&D team and various equipment in
coupling, it has superior conditions to satisfied your different
requirements.
Company main products are: all kinds of couplings for machinery
industry all over the word , such as radial elastic coupling, tyred
coupling, universal coupling, drum gear coupling, plum flower form
elastic coupling, rigid coupling oldham coupling, roller chain
coupling, diaphragm coupling, coupling column elastic sleeve pin
couplings, elastic dowel pin, elastic dowel pin coupling, pump
shaft coupling, etc..
The concepts of our company is live on quality and develop on
honor. The coupling has the advantage of high quality, low price,
complete product models.Our company will be your best choice, and
we look forward to cooperate with you.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2:Do you provide samples ? is it free or extra ?
A: : Yes, we could offer the sample but not for free.Actually we
have a very good price principle, when you make the bulk order then
cost of sample will be return to you.
Q3: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is
7-25 days if the goods are not in stock, it is according to
quantity.
Q4:How long is your warranty?
A: Our Warranty is 12 month.
Q5 :Do you have inspection procedures for coupling ?
A:100% self-inspection before packing
Q6. What’s your payment?
A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C
Q7:Can I have a visit to your factory before the order? A:
Sure,welcome to visit our factory.
