Product Description
Parameter Of MT Type PU Rubber Element For Flexible Coupling
Usage:
This product is apply to machanical shaft coupling,buffered act on
the jiont of the transmission shaft.
PERFORMANCE Material: TPU
Torque range:22.4~2500NM
Wear tear:<0.05cm3/1.61km
Hardness: Yellow type :92A Red type :98A
Temperature:-40~100℃ S
tandard:GB/T5272-85

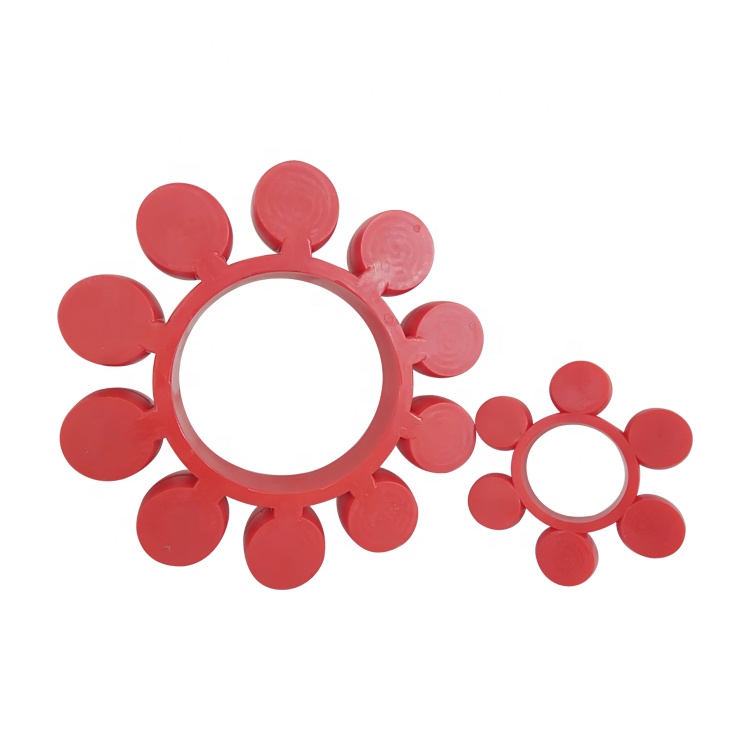

Coupling Element Elastic Buffer Spider Insert:
Torsion: 22.4~2500NM
Wear And Tear: <0.05cm3 / 1.61km
Material: Thermally Stable TPU
Hardness: Yellow SHA 92, Blue SHA95, Red SHA98
Temperature: -40~100°C
Standard: KTR, Germany
| model | specification |
| Outer diameter (D) | Inner hole diameter (D) | Thickness (n) | 瓣数 |
| MT1 | 48 | 19 | 12 | 4 |
| MT2 | 58 | | 16 | |
| MT3 | 68 | 28 | 18 | 6 |
| MT4 | 82 | 34 |
| MT5 | 100 | 42 | 20 |
| MT6 | 122 | 52 | 25 |
| MT7 | 140 | 65 | 30 |
| MT8 | 166 | 90 | 8 |
| MT9 | 196 | 100 | 35 |
| MT10 | 225 | 115 | 10 |
| MT11 | 255 | 140 | 45 |
| MT12 | 295 | 170 | 50 |
| MT13 | 356 | 215 | 55 | 12 |
| | |
About Us
Nanpi county Jude transmission equipment manufacturing co., LTD. is
a enterprises that specialized in research and production coupling.
Also we can develop new products and bulk-production. With rich
experience, professional R&D team and various equipment in
coupling, it has superior conditions to satisfied your different
requirements.
Company main products are: all kinds of couplings for machinery
industry all over the word , such as radial elastic coupling, tyred
coupling, universal coupling, drum gear coupling, plum flower form
elastic coupling, rigid coupling oldham coupling, roller chain
coupling, diaphragm coupling, coupling column elastic sleeve pin
couplings, elastic dowel pin, elastic dowel pin coupling, pump
shaft coupling, etc..
The concepts of our company is live on quality and develop on
honor. The coupling has the advantage of high quality, low price,
complete product models.Our company will be your best choice, and
we look forward to cooperate with you.
