HL Elastic Nylon Pin Bush Coupling Flexible High Torque Customized

HL High Torque Flexible Pin Bush Coupling Shaft Coupling

Product Description

Introduce of HL/LX flexible pin coupling

The HL/LX flexible pin coupling has a larger structure, simple, reasonable, convenient maintenance, symmetrical and interchangeable two sides, long life, and allows larger axial movement. It has cushioning, damping, wear resistance and other properties. The type of shaft hole of HL type elastic pin couplings are cylindrical ( Y ), conical ( Z ) and short cylinder ( J ).

The HL/LX flexible pin coupling is also made into nylon column pin couplings. The main body is made of 45# cast steel by precision casting. The shaft hole and keyway are drawn up, and the elastic pin is made of nylon. There are trace compensation for the two axis offsets, elastic parts are cut at work, and the working reliability is weak. They are suitable for low speed medium speed drive shafts, and are not suitable for working conditions with high reliability.

Model	Tn(N.m)	[n]r/min		d 1 d 2 d z					D	S	Kg.m 2	Kg
						Y	Z,J 1 ,Z
						L	L 1	L
		Steel	Iron	Steel	Iron
HL1	160	7100		12 14	12 14	32	27	32	90	2.5	0.0064	2
				16 18	16 18	42	30	42
				19	19
				20 22	20 22	52	38	52
				24
HL2	315	5600		20 22	20 22	52	38	52	120	2.5	0.253	5
				24	24
				25 28	25 28	62	44	62
				30 32	30 32	82	60	82
				35
HL3	630	5000		30 32	30 32	82	60	82	160	2.5	0.6	8
				35 38	35 38
				40 42	40 42	112	84	112
				45 48
HL4	1250	4000	2800	40 42	40 42	112	84	112	195	3	3.4	22
				45 48	45 48
				50 55	50 55
				56	56
				60 63		142	107	142
HL5	2000	3550	2500	50 55	50 55	112	84	112	220	3	5.4	30
				56	56
				60 63	60 63	142	107	142
				65 67	65 67
				71 75
HL6	3150	2800	2100	60 63	60 63	142	107	142	280	4	15.6	53
				65 70	65 70
				71 75	71 75
				80	80
				85		172	132	172
HL7	6300	2240	1700	70 71	70 71	142	107	142	320	4	41.1	98
				75	75
				80 85	80 85	172	132	172
				90 95	90 95
				100 110	100	212	167	212
HL8	10000	2120	1600	80 85	80 85	172	132	172	360	5	56.5	119
				90 95	90 95
				100 110	100 110	212	167	212
				120 125
HL9	16000	1800	1250	100 110	100 110	212	167	212	410	5	133.3	197
				120 125	120 125
				130 140	130	252	202	252
HL10	25000	1560	1120	110 120	110 120	212	167	212	480	6	273.2	322
				125	125
				130 140	130 140	252	202	252
				150	150
				160 170	160	302	242	302
				180
HL11	31500	1320	1000	130 140	130 140	252	202	252	540	6	555.7	520
				150	150
				160 170	160 170	302	242	302
				180	180
				190 200	190	352	282	352
				220
HL12	63000	1250	950	160 170	160 170	302	242	302	630	7	902	714
				180	180
				190 200	190 200	352	282	352
				220	220
				240 250		410	330	-
				260
HL13	100000	1120	850	190 200	190 200	352	282	352	710	8	1700	1057
				220	220
				240 250	240 250	410	330	-
				260	260
				280 300		470	380	-
HL14	160000	850	630	240 250	240 250	410	330	-	800	8	4318	1956

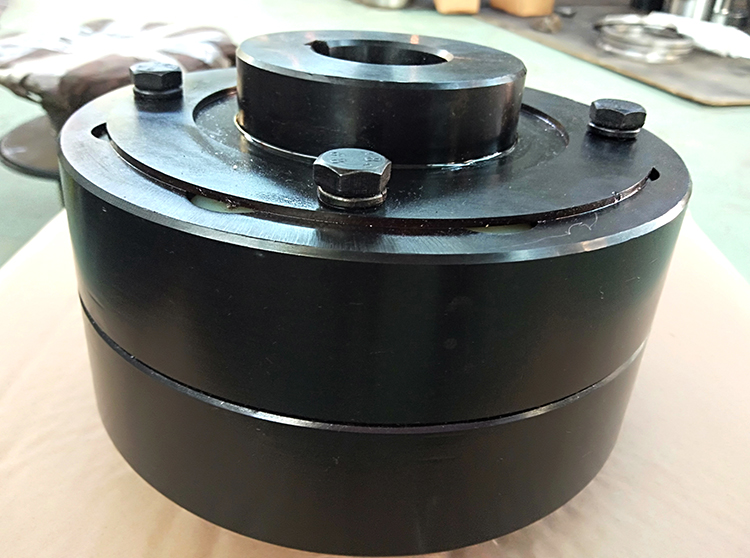

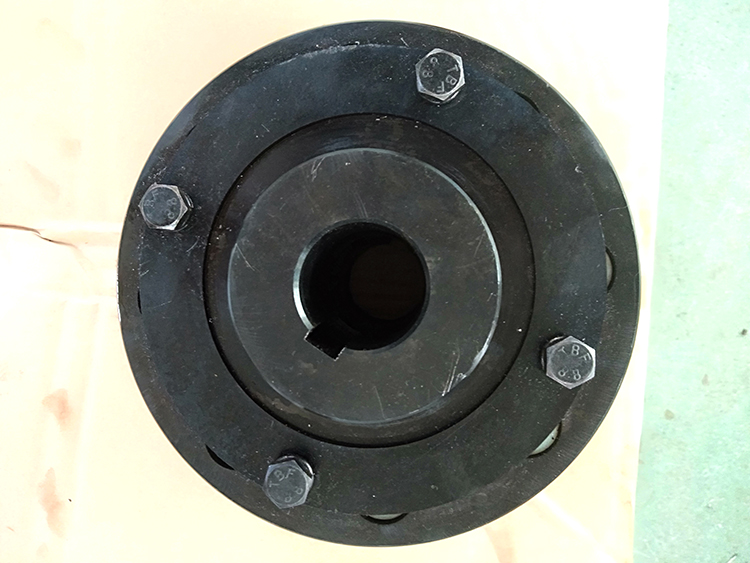

products images

HL Elastic Nylon Pin Bush Coupling Flexible High Torque Customized

Packaging & Shipping

HL Elastic Nylon Pin Bush Coupling Flexible High Torque Customized

About Us

HL Elastic Nylon Pin Bush Coupling Flexible High Torque Customized

Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.

Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..

The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
