    Clamp Taper Torsionally Flexible Membrane Coupling Twin Disc Boiled black

    Ask Lasest Price
    Brand Name : jude
    Supply Ability : 1000 Set/Sets per Month
    Price :
    Model Number : JMIIJ
    Certification : CE、ISO
    MOQ : 1 Pcs
    • Product Details
    • Company Profile

    Clamp Taper Torsionally Flexible Membrane Coupling Twin Disc Boiled black

    clamp flexible taper twin disc torsional membrane shaft coupling


    Product Description

    The flexible diaphragm coupling is a transmission device that uses metal flexible elements to transmit torque without lubrication. It is widely used in ships, aviation, petrochemicals, machinery manufacturing, etc.


    The types of misalignment that can be compensated by the diaphragm coupling include the following three basic types: angular (the point where the two axes meet at an angle between the two shaft ends), lateral (the two axes are offset from parallel lines) and axial (the two axes are offset from parallel lines). Axial clearance is too large), the actual offset that occurs when the rotating shaft system is running is often a combination of any two of the above misalignments or three forms of misalignment at the same time. Therefore, the actual working load and deformation of the diaphragm coupling are compared. complex. As the key elastic element of the elastic diaphragm coupling, the diaphragm bears the main load during operation. When the coupling rotates, its angular offset will generate alternating stress, which alternates once per rotation. The dynamic stress of the diaphragm will lead to the fatigue damage of the diaphragm and the bolt, so the accurate calculation of the dynamic and static composite stress is the key to predict the life of the diaphragm and determine the operation of the diaphragm coupling.


    The difference between the single-diaphragm coupling and the double-diaphragm coupling is the ability to handle various deviations. In view of the complex bending of the diaphragm coupling, the single-diaphragm coupling is not suitable for eccentricity. The double-diaphragm coupling can bend in different directions at the same time to compensate for the eccentric effect.


    The characteristics of the diaphragm coupling are similar to the bellows, in fact, the couplings transmit torque in the same way. The diaphragm itself is thin, so it bends easily when a relative displacement load occurs, so it can withstand up to 1.5 degrees of deviation, while producing low bearing loads in the servo system, the diaphragm coupling has good torque, It is also very delicate. If it is not standardized during use or installation, it is easy to be overloaded and damaged.

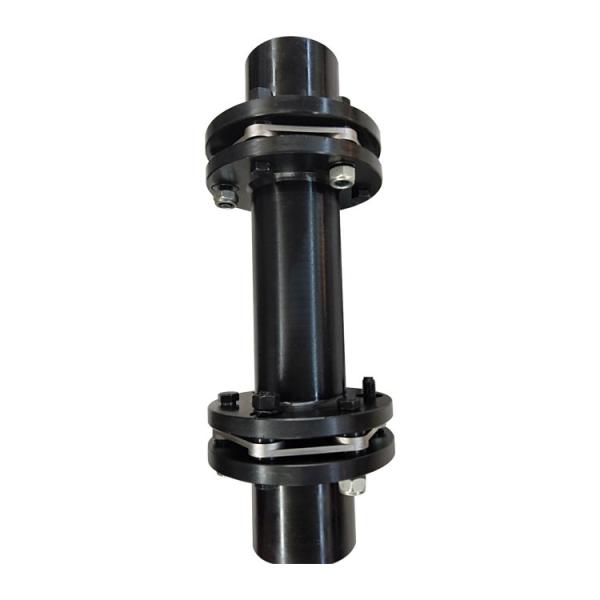

    products images

    SizeTorque Tn KN.mMax Torque KN.mSpeed (n) r/minBore dLengthDD1D2LmintL1min Weight kgWeight kg
    L,L1L
    JMIIJ10.0630.1930020-3838-8240925345708±0.221.4
    JMIIJ20.10.2840025-4544-112451026345808±0.22.92.1
    JMIIJ30.250.4670030-5560-1125512877769611±0.35.74.2
    JMIIJ40.50.8590035-6560-14265145917611611±0.38.56.4
    JMIIJ50.81.25510040-7584-1427516810510213614±0.312.59.6
    JMIIJ61.252475045-8084-1728018011210214015±0.416.512.5
    JMIIJ723.15430050-8584-1728020012011414015±0.42115.5
    JMIIJ82.54420055-8584-1728020512011414020±0.42316.5
    JMIIJ93.155400055-9084-1729021512812716020±0.42719.5
    JMIIJ1046.3365060-95107-17210023513212717023±0.53625
    JMIIJ1158340060-100107-21210025014514017023±0.54230
    JMIIJ126.310320060-110107-21211027015514019023±0.55036
    JMIIJ13812.5285060-110107-21211530016216520027±0.66645
    JMIIJ141016270070-125107-21212532017616522027±0.67855
    JMIIJ1512.520245075-130107-25214035018616524032±0.711075
    JMIIJ161625230080-140132-25214537020321925032±0.712585
    JMIIJ172031.5215090-160132-30216540023021929032±0.7160115
    JMIIJ1825401950100-170167-30217544024521930038±0.9220150
    JMIIJ1931.5501850100-180167-30218546026026732038±0.9245170
    JMIIJ2035.5561800120-200167-35220048028026735038±0.9275200
    JMIIJ2140631700120-200167-35221050029526737038±0.9320230
    JMIIJ2250801600140-220202-35222054031029938044±1400275
    JMIIJ23631001450140-240202-41024060033535641050±1.2560380
    JMIIJ24801251400160-250242-41025562035035644050±1.2620410
    JMIIJ25901401300180-280242-47027566038535648050±1.2740510
    JMIIJ261121801200190-300242-27029572041040651060±1.4970620
    JMIIJ271402001150220-320282-47030074042040652060±1.41050680
    JMIIJ281602241100240-300330-47032077045045756060±1.41200780
