Standard Steam Turbine Coupling 304 Stainless Steel Disc Flexible Coupling

Ask Lasest Price
Brand Name :	jude
Supply Ability :	1000 Set/Sets per Month
Price :
Model Number :	JMIIJ
Certification :	CE、ISO

Add to Cart

Product Details
Company Profile

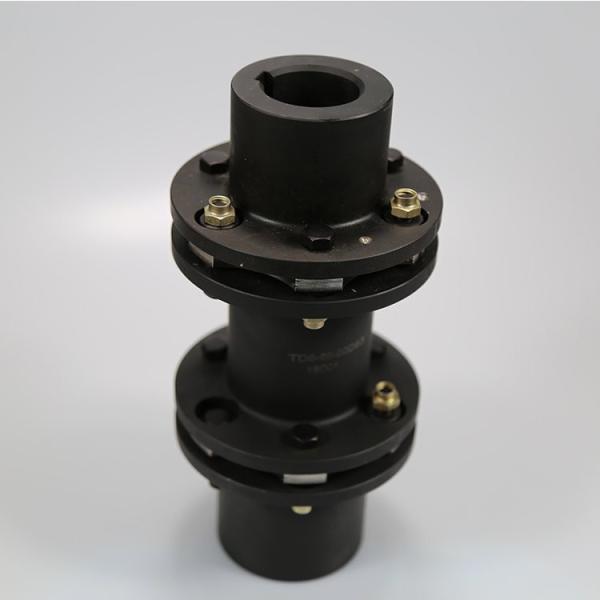

Standard Steam Turbine Coupling 304 Stainless Steel Disc Flexible Coupling

304 Stainless Steel Disc Steel Flexible Coupling Used In Steam Turbine

Product Description

Application
Flexible diaphragm coupling can be broadly used in metallurgy, steel rolling, mine, chemical industry, shipbuilding, pump, blower fan and other industries.

Advantages
1. Flexible diaphragm coupling has simple structure and one can inspect it directly without disassembling.
2. With simple structure, elastic diaphragm coupling is convenient for assembling and disassembling.
3. It has high torsion rigidity and zero gyration.

products images

Size	Torque Tn KN.m	Max Torque KN.m	Speed (n) r/min	Bore d	Length		D	D1	D2	Lmin	t	L1min Weight kg	Weight kg
Size	Torque Tn KN.m	Max Torque KN.m	Speed (n) r/min	Bore d	L,L1	L	D	D1	D2	Lmin	t	L1min Weight kg	Weight kg
JMIIJ1	0.063	0.1	9300	20-38	38-82	40	92	53	45	70	8±0.2	2	1.4
JMIIJ2	0.1	0.2	8400	25-45	44-112	45	102	63	45	80	8±0.2	2.9	2.1
JMIIJ3	0.25	0.4	6700	30-55	60-112	55	128	77	76	96	11±0.3	5.7	4.2
JMIIJ4	0.5	0.8	5900	35-65	60-142	65	145	91	76	116	11±0.3	8.5	6.4
JMIIJ5	0.8	1.25	5100	40-75	84-142	75	168	105	102	136	14±0.3	12.5	9.6
JMIIJ6	1.25	2	4750	45-80	84-172	80	180	112	102	140	15±0.4	16.5	12.5
JMIIJ7	2	3.15	4300	50-85	84-172	80	200	120	114	140	15±0.4	21	15.5
JMIIJ8	2.5	4	4200	55-85	84-172	80	205	120	114	140	20±0.4	23	16.5
JMIIJ9	3.15	5	4000	55-90	84-172	90	215	128	127	160	20±0.4	27	19.5
JMIIJ10	4	6.3	3650	60-95	107-172	100	235	132	127	170	23±0.5	36	25
JMIIJ11	5	8	3400	60-100	107-212	100	250	145	140	170	23±0.5	42	30
JMIIJ12	6.3	10	3200	60-110	107-212	110	270	155	140	190	23±0.5	50	36
JMIIJ13	8	12.5	2850	60-110	107-212	115	300	162	165	200	27±0.6	66	45
JMIIJ14	10	16	2700	70-125	107-212	125	320	176	165	220	27±0.6	78	55
JMIIJ15	12.5	20	2450	75-130	107-252	140	350	186	165	240	32±0.7	110	75
JMIIJ16	16	25	2300	80-140	132-252	145	370	203	219	250	32±0.7	125	85
JMIIJ17	20	31.5	2150	90-160	132-302	165	400	230	219	290	32±0.7	160	115
JMIIJ18	25	40	1950	100-170	167-302	175	440	245	219	300	38±0.9	220	150
JMIIJ19	31.5	50	1850	100-180	167-302	185	460	260	267	320	38±0.9	245	170
JMIIJ20	35.5	56	1800	120-200	167-352	200	480	280	267	350	38±0.9	275	200
JMIIJ21	40	63	1700	120-200	167-352	210	500	295	267	370	38±0.9	320	230
JMIIJ22	50	80	1600	140-220	202-352	220	540	310	299	380	44±1	400	275
JMIIJ23	63	100	1450	140-240	202-410	240	600	335	356	410	50±1.2	560	380
JMIIJ24	80	125	1400	160-250	242-410	255	620	350	356	440	50±1.2	620	410
JMIIJ25	90	140	1300	180-280	242-470	275	660	385	356	480	50±1.2	740	510
JMIIJ26	112	180	1200	190-300	242-270	295	720	410	406	510	60±1.4	970	620
JMIIJ27	140	200	1150	220-320	282-470	300	740	420	406	520	60±1.4	1050	680
JMIIJ28	160	224	1100	240-300	330-470	320	770	450	457	560	60±1.4	1200	780
